Pag. 23
Technical Book
MDS
MDS

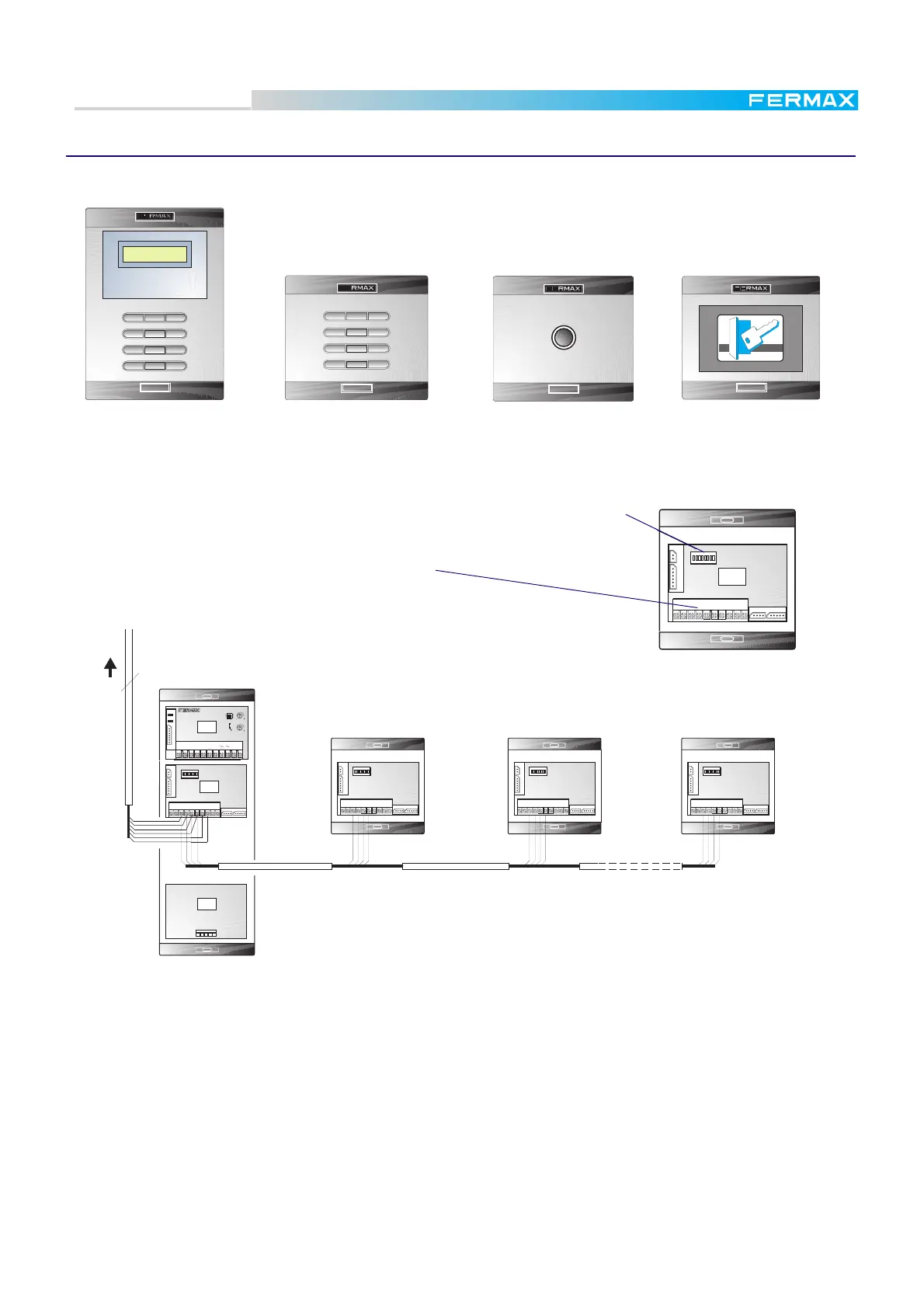

MDS Digital Access control panels
The following access panels are also available:
123
456
789
A0 B
Ab
CN5
6
+
Tc
+
-
3
2
1
Cp
-+
Sa
CN8 SW1
Dt
CN3
Sb
26 SB
-+
CN2
-
Ck
ABCD
ON
87654321
LECTOR LLAVE
COD.98131
CITY LINE
BOTON
ACCESS
CONTROL
PROXIMITY READER
All of them are configured the same way as the other panels (microswitches).
Configuration
microswitches
Wiring connections
+, -: supply (12 Vdc)
Ab, +: electric lock, if required (12 Vdc, 0,5 A max.)
2, 6: not used in access control panels.
Sa, Sb: data input
B: exit pushbutton
Ref. 23411
MDS Digital Keypad
Ref. 23261
MDS Button Reader
Ref. 23351
MDS Proximity card Reader
notes:
* There is also a Secondary MDS Button Reader Ref. 23262 and a Secondary Proximity card Reader Ref.
23352, which do not have internal controller, but they can be connected to any Keypad Access Panel, via
CN2 connector. Then the system, if it has been properly programmed, will require a PIN code through the
keypad acces after the tag has been presented to the secondary panel. No configuration is required for the
secondary panel, since it uses the same controller as the Keypad to which it is connected. See PC MDS
Programming Manual for further details.
* As with the outdoor audio and video panels, the access panels have to be configured with a number not
repeated in any other panel in the same central unit.
* In contrast with the audio panels, access panels can be connected in any PANEL slot in the central unit.
They can also be connected to any outdoor panel or any other access panel in the system indeed. See
diagram above.
123
456
789
A0 B
LCD DIGITAL SYSTEM
Ref. 23241
MDS Digital Keypad
w/display
M.D.S. AUDIO PANEL REF.87711
1
Cp2
32 6
AbAb Tc
Cp1
UNIVERSAL AMPLIFIER
AMPLIFICADOR UNIVERSAL
COD.98589
CN1
L-
L+
6
3
2
1
Cp1
3 2 1
F U
Ab
CN5
6
+
Tc
+
-
3
2
1
Cp
-+
Sa
CN8 SW1
Dt
CN3
Sb
26 SB
-+
CN2
-
Ck
ABCD
ON
87654321
DISPLAY DIGITAL
COD.98227
CITY LINE
MDS
COD.98208
DIGITAL MDS
CITY LINE
TECLADO
ABCD
-
TO THE CENTRAL
UNIT
Ab
CN5
6
+
Tc
+
-
3
2
1
Cp
-+
Sa
CN8 SW1
Dt
CN3
Sb
26 SB
-+
CN2
-
Ck
ABCD
ON
87654321
Ab
CN5
6
+
Tc
+
-
3
2
1
Cp
-+
Sa
CN8 SW1
Dt
CN3
Sb
26 SB
-+
CN2
-
Ck
ABCD
ON
87654321
Ab
CN5
6
+
Tc
+
-
3
2
1
Cp
-+
Sa
CN8 SW1
Dt
CN3
Sb
26 SB
-+
CN2
-
Ck
ABCD
ON
87654321
PANEL 1 PANEL 2 PANEL 31
PANEL 0
REF.5918
