Fermax MDS Series Technical Book

Pag. 24
Technical Book
MDS
MDS
1
2
4
3
5
6
7
8
9
*
0
#
A
B
NR-1917
CN4CN2
CN5
CN3
CN1
AMARILLO/YELOW
NARANJA/ORANGE
ROJO/RED
MARRON/BROWN
COD.98208
DIGITAL MDS
CITY LINE
TECLADO
ABCD
-
Ab
CN5
6
+
Tc
+
-
3
2
1
Cp
-+
Sa
CN8 SW1
Dt
CN3
Sb
26 SB
-+
CN2
-
Ck
ABCD
ON
87654321
DISPLAY DIGITAL
COD.98227
CITY LINE
MDS
+ -
SA
2
SB
6
CITY LINE
COD.98337
AMPLIFICADOR
CONSERJE MDS
5
3
1
6
4
2
COD.98247
NR-0208
1917
NR-
REF.87721 REF.87731
12 13
14
123
456
789
A0 B
LCD DIGITAL SYSTEM
9
2
8
1
3
5
4
6
7
10
11
1. Information Window.
2. Digital display.
3. Search keys.
4. Call button (bell).
5. Keyboard.
6. Erase and select stored calls key.
7. Confirmation key.
8. Guard Telephone.
9. Green Button, (see Users Manual).
10. Yellow Button, (see Users Manual).
11. Red Button, (see Users Manual).
12. Configuration Switches.
13. Telephone PCB.
14. Telephone buttons PCB.

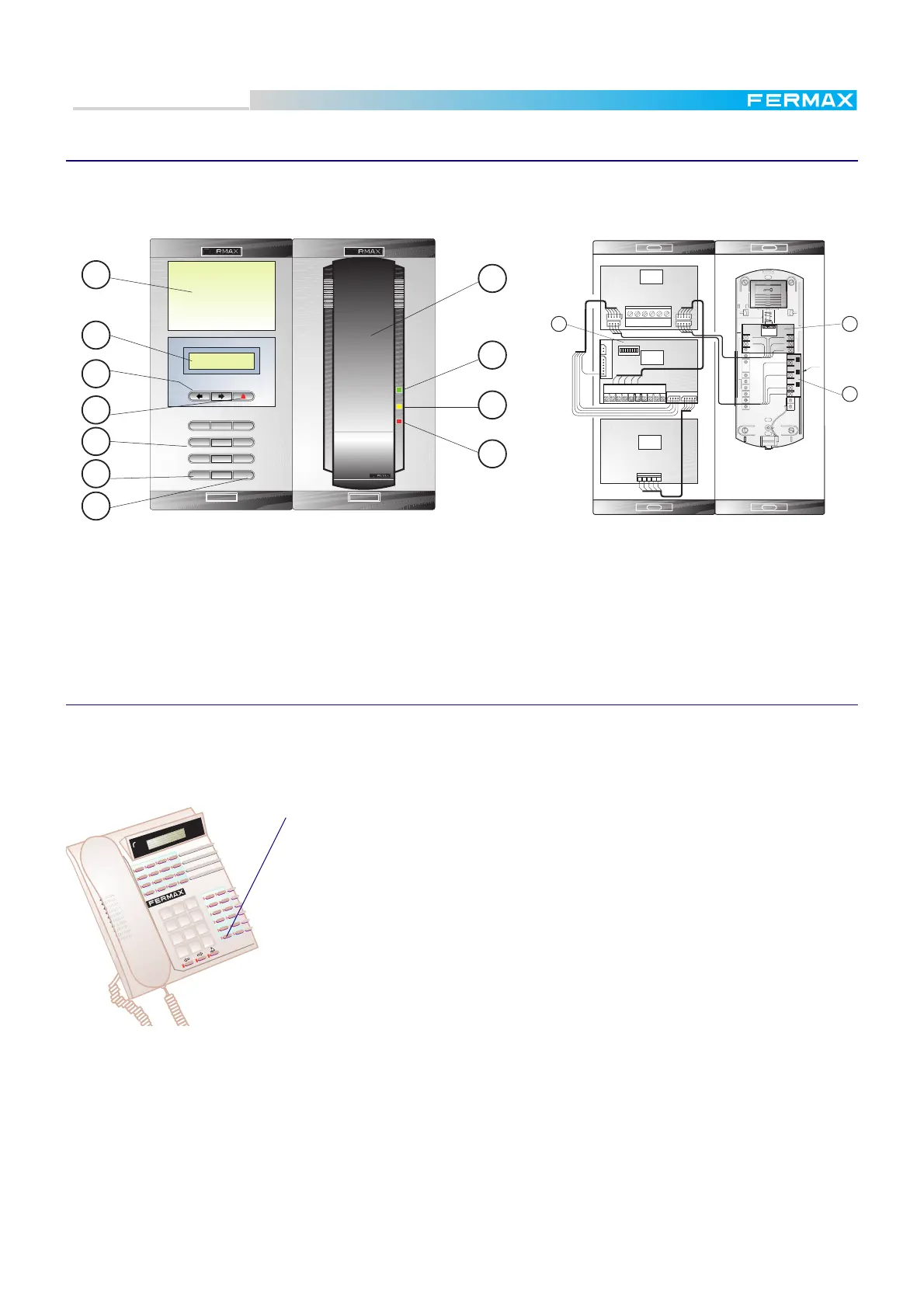

MDS Wall Guard Unit panel
The MDS Wall Guard Unit is composed of two parts, the MDS Porter/Guard Telephone and the MDS Porter/
Guard Module supplied separatelly, which must be assembled and wired as represented below.
MDS Desktop Guard Unit
This Guard Unit has the same features as the wall mounted one. It does not need to be assembled.
Since it does not have configuration microswitches, Panel Number configuration process is different. See
below.
Press this button ( the lower on the left keys row) for a while (5 seconds), to enter the panel
number.
* Display will show "?", requesting a panel number
* Enter the corresponding panel number (between 0 to 9).
Note that this panel number shall match the one in which the guard unit is conected.
From factory, the guard unit is programmed as panel 0.
Further information about programming, features and use are included with the guard
unit.
Back view and internal wiring
Front view
Notes
* The guard units can work in one of several modes NIGHT, DAY or MIXED, TRANSFER-DAY, TRANSFER
MIXED and MASTER, depending on how the corresponding central unit has been configured. This can
only be changed by means of a central unit connected to it. Each of these modes and how to change them
is explained in the Operating Instructions that come with the Guard Unit.
* Guard units can be configured to manage "normal" calls from dwellings but also "panic" calls. In addition,
the system can be configured for one or more guard units to receive "alarm" messages. See the PC MDS
programming Manual.
* Entering programming mode you can know in which mode a central unit (and every central unit connected
to the FXL) is working. See the Basic MDS Programming Manual for further details.
