IT
108
EN
REGOLAZIONE USCITA ESTREMITÀ IN-
FERIORE MARTELLETTO ESPULSORE
Per un corretto lavoro, il martelletto espulsore deve
fuoriuscire dal vomere di 5-8 mm come indicato in
Fig. 1
snodo (A) allentando il dado (B), svitare il bullone (C)

la distanza, ruotarlo in senso orario per diminuirla,
(C) e stringere
il dado (B).
SOSTITUZIONE MARTELLETTO
ESPULSORE
 Togliere il vomere rimuovendo le spine (D), poste
da ambo i lati.
 Togliere le due viti (E) da ambo i lati.
 Togliere la vite (F) e a questo punto il martelletto
esce ed è quindi possibile sostituirlo.
SOSTITUZIONE BOCCOLE E PERNO
PUNTA ESPULSORE
 Allentare la vite a brugola (G) con chiave da 2,5.
 Rimuovere il perno (H) con un punteruolo.
 Rimuovere le boccole (I) e mettere quelle nuove

 (G).
A
C
5-8
mm

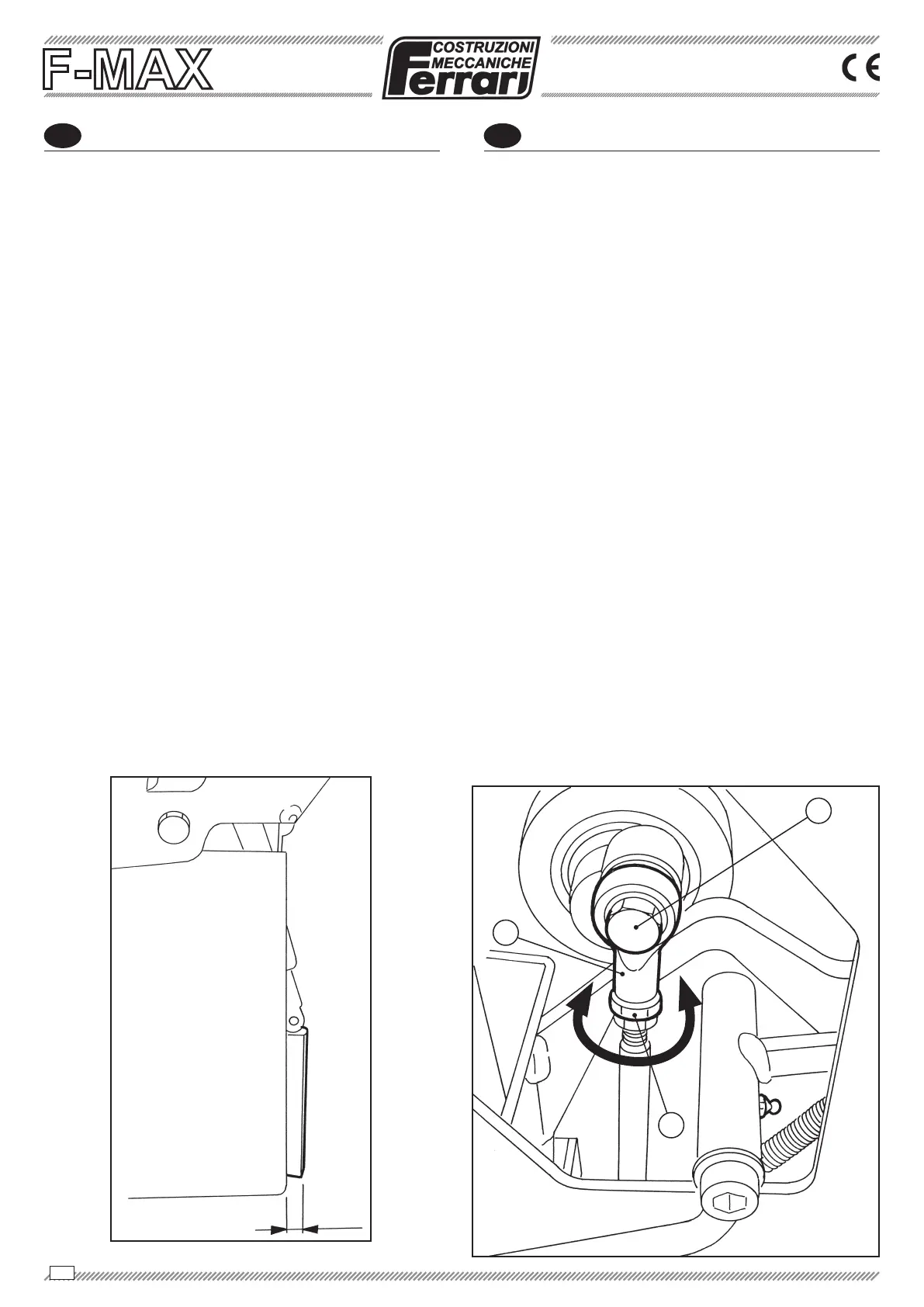

ADJUSTMENT OF EXPELLER HAMMER
LOWER END OUTLET
For a correct work, the expeller hammer must protrude
5-8 mm from the plough, as indicated in Fig. 1. To
modify this measurement, act on the rod (A) by loose-
ning the nut (B), loosen the bolt (C) and rotate the slot
clockwise to increase the distance or anti-clockwise
to reduce it, after the operation, put the bolt back (C)
and tighten the nut (B).
REPLACEMENT OF THE EXPELLER
HAMMER
 Remove the plough, loosening the pin (D), placed
on both sides.
 Remove the two screws (E) from both sides.
 Remove the screw (F). At this point, the hammer is
removed and so it can be replaced.
REPLACEMENT BUSHINGS AND PIVOT
POINT EJECTOR
 Loosen the Allen screw (G) with a size 2.5 spanner.
 Remove the pin (H) with an awl.
 Remove the bushings (I) and put the new ones
  
the new pin and secure it with the screw (G).
B
Manuale d’uso e manutenzione
Operating and service manual
Mode d’emploi et d’entretien
Manual de uso y mantenimiento
TRAPIANTATRICE TRAINATA
TOWED TRANSPLANTING MACHINE
PLANTEUSE REMORQUÉE
TRASPLANTADORA REMOLCADA
F-MAX
Fig. 1
