Restoring system hydraulic pressure
The boiler provides for various ways of restoring the hydraulic system. pressure. Manual, always available, or semiau-
tomatic or automatic depending on the parameter value P62.

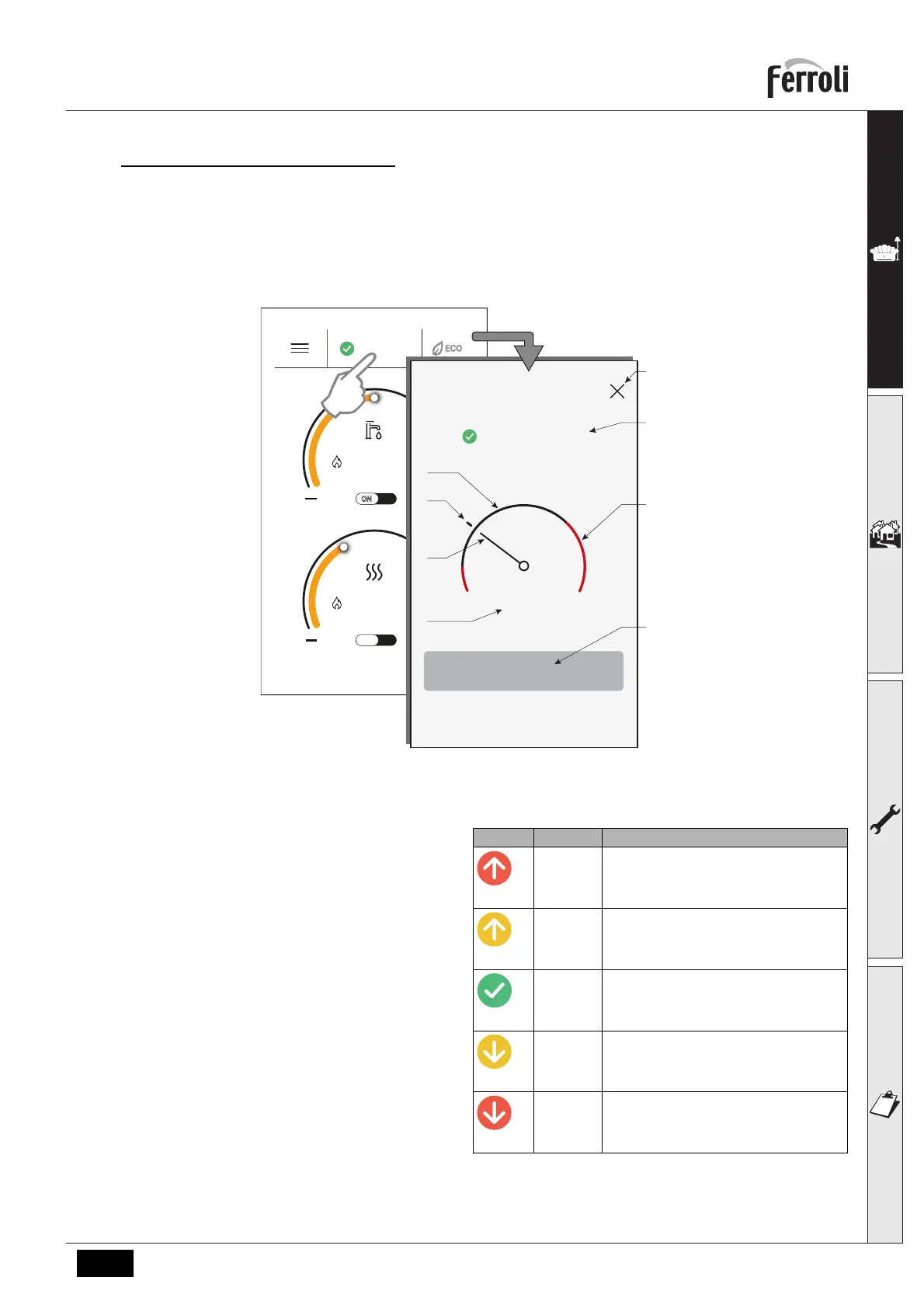

"Pressure control" screen
To access the pressure control screen, simply touch the pressure value (detail 4 - fig. 1) on the main screen.
Description of "Pressure control" screen
fig. 8- Pressure control
Legend fig. 8
1 Back to main screen
2 Pressure status indicator (see attached table)
3 Boiler operating pressure zone
4 Pressure zone too high (boiler blocked)
5 Current pressure indicator
6 Current pressure value
7 Pressure zone too low, boiler operation inhibited
8 Pressure reset button (enabled in semiautoma-
tic mode)
9 Nominal pressure indicator
Bar
01 Mar 2020 14:36CONNECTED
1.2
32.5°
ON
28.5°
ON
02 Marzo 2020 14:36CONNECTED
Controllo pressione
RIPRI
S
TIN
A
0
0.4
2.8
4.0
Bar
1.1
Pressione ottimale!
9
5
6
3
4
8
2
1
Icon Fault code Description
RED
F40 Pressure too high for boiler operation
YELLOW
F21
Pressure higher than nominal value
The boiler works at limited output
GREEN
NONE Pressure at nominal value
YELLOW
F20
Pressure lower than nominal value
The boiler continues to work normally
RED
F37 Pressure too low for boiler operation
