Ferroli midas pc10 - Installation Method

13
INSTALLATION
INSTALLATION METHOD

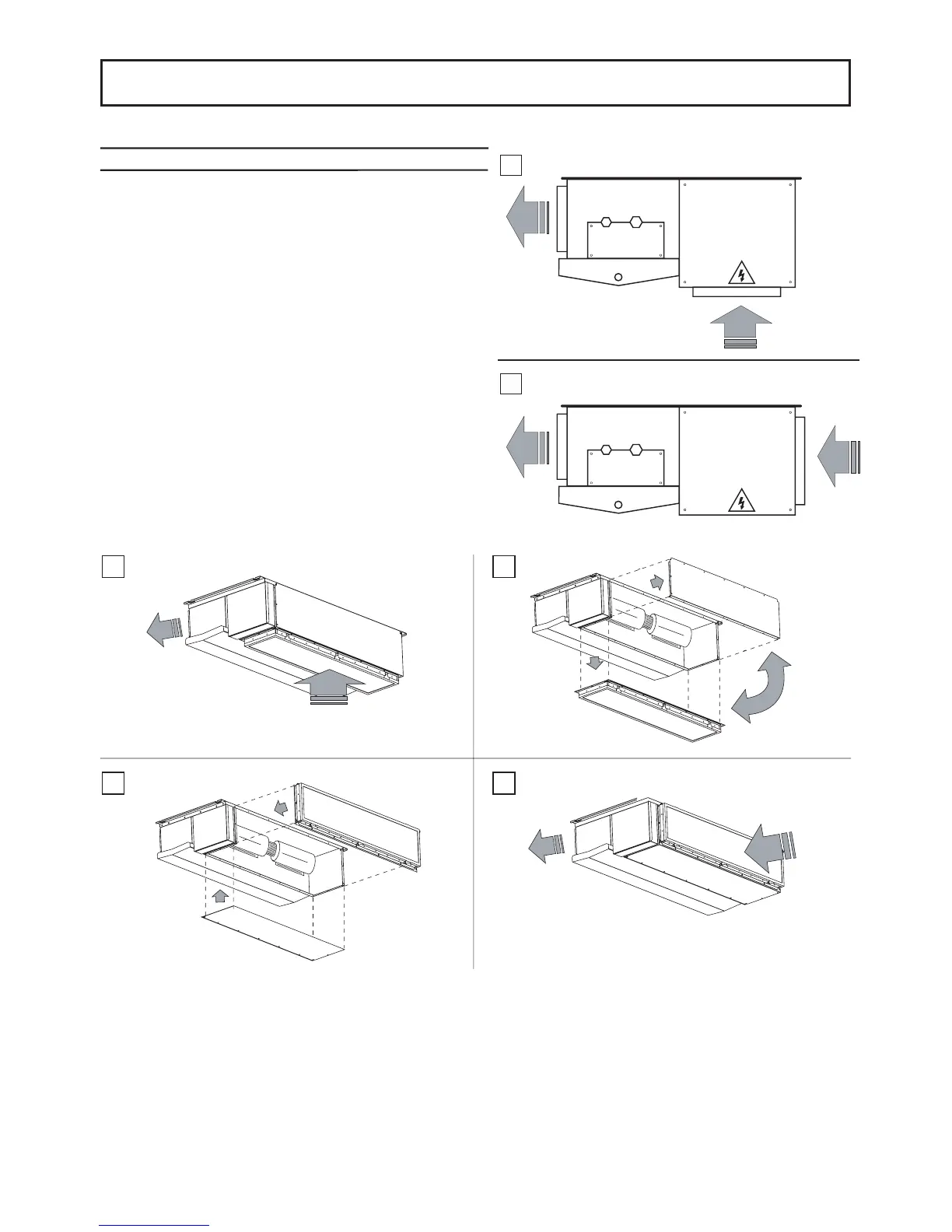

The unit is installed as standard with the intake under-
neath (layout A). On models 12-18-24-30000 the intake
can be moved from position A (underneath) to position
B (at the rear).
This modification must be done during installation.
Proceed as follows to perform this modification.
1) Remove the fixing screws from the filter holder 1 and
then from the rear panel 2.
2) Secure the rear panel 2 in the front position, then fix the
filter holder 1 in place.
Make sure that the unit is disconnected from the mains
electricity supply before performing these operations.
