Desuperheater unit VD (available for both IR units and IP units)

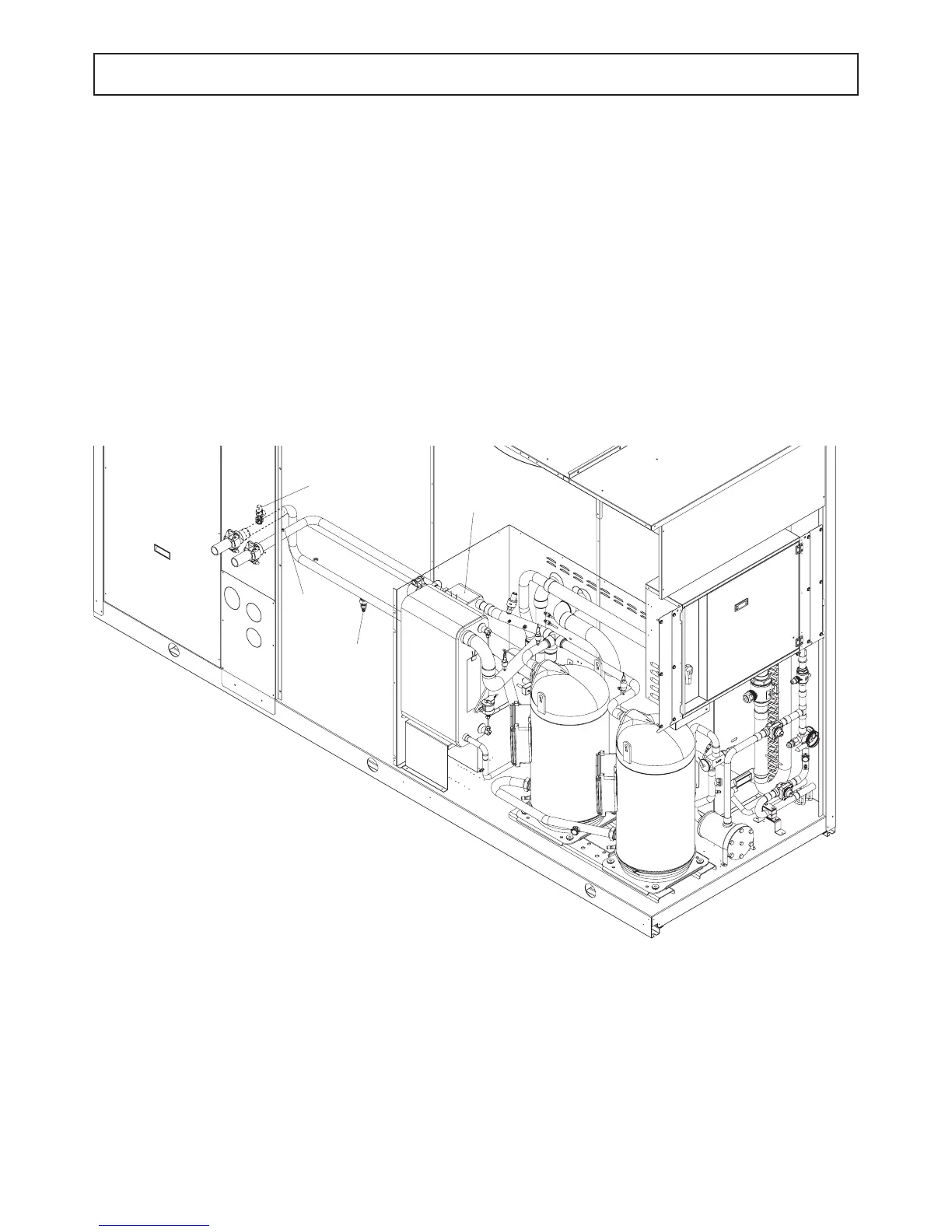

Hydraulic and chilling circuit components:
1. Desuperheater. Specially designed for the specific version. Plate type, made of stainless steel (AISI 316).
It is installed within a shell of thermal barrier insulating material to prevent heat exchanges towards the outside. Standard supply also
includes an electric antifreeze heater to prevent the parts from freezing during the winter, when the system remains at a standstill (if
not drained).
2. Water safety valve.On the heat recovery inlet pipe. It acts whenever faulty service leads to an operating pressure in the plumbing
system that exceeds the valve opening value (Fig.1).
3. Water drain taps for emptying the exchangers and pipes of the unit dedicated to heat recovery (Fig. 1).
4. Air vent. Accessed by removing the front panels. It consists of a manually operated valve installed in the highest part of the water
pipes. To use in conjunction with the water drain cocks situated in the rear part of the unit, for emptying the exchangers and pipes
dedicated to heat recovery.
GENERAL FEATURES
4
3
1
2
