WATER PRESSURE DROP

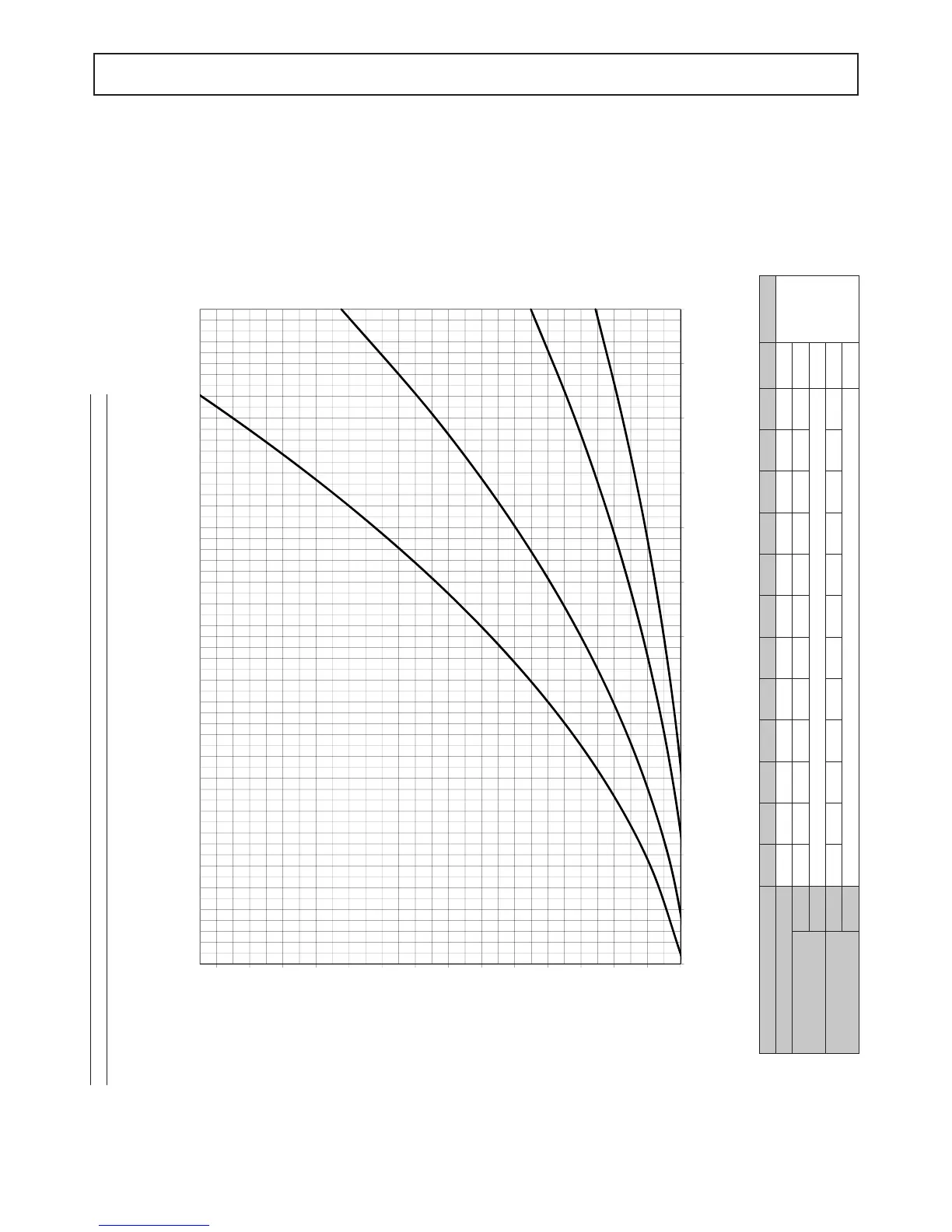

Desuperheaters The graph below illustrates the water pressure drop values in kPa depending on the flow rate in liters/second. The operating range is delimited by the minimum and maximum values given in the next table. The graphs are referred to units operating with water at the temperature of 10°C (density 1000 kg/m
3
).
MODELS 40.2 50.2 60.2 70.2 80.2 90.2 100.2 115.2 130.2 145.2 160.2 180.2 UM NOTE
Graphic refer 1 1 1 1 1 2 2 2 3 3 3 4 -
Q= Water ow rate ∆P= Water pressure drop
Lower limit value
Q 0,57 0,57 0,57 0,57 0,57 0,76 0,76 0,76 1,11 1,11 1,11 1,41 l\s
Δp 5 kPa
Upper limit value
Q 3,11 3,11 3,11 3,11 3,11 3,50 3,50 3,50 3,50 3,50 3,50 3,50 l\s
Δp 150 kPa
65 75 85 95
105 115 125 135 145
5
15 25 35 45 55
0,50 0,75 1,00 1,25 1,50 1,75 2,00 2,25 2,50 2,75 3,00 3,25 3,50
1
2
3 4
