46

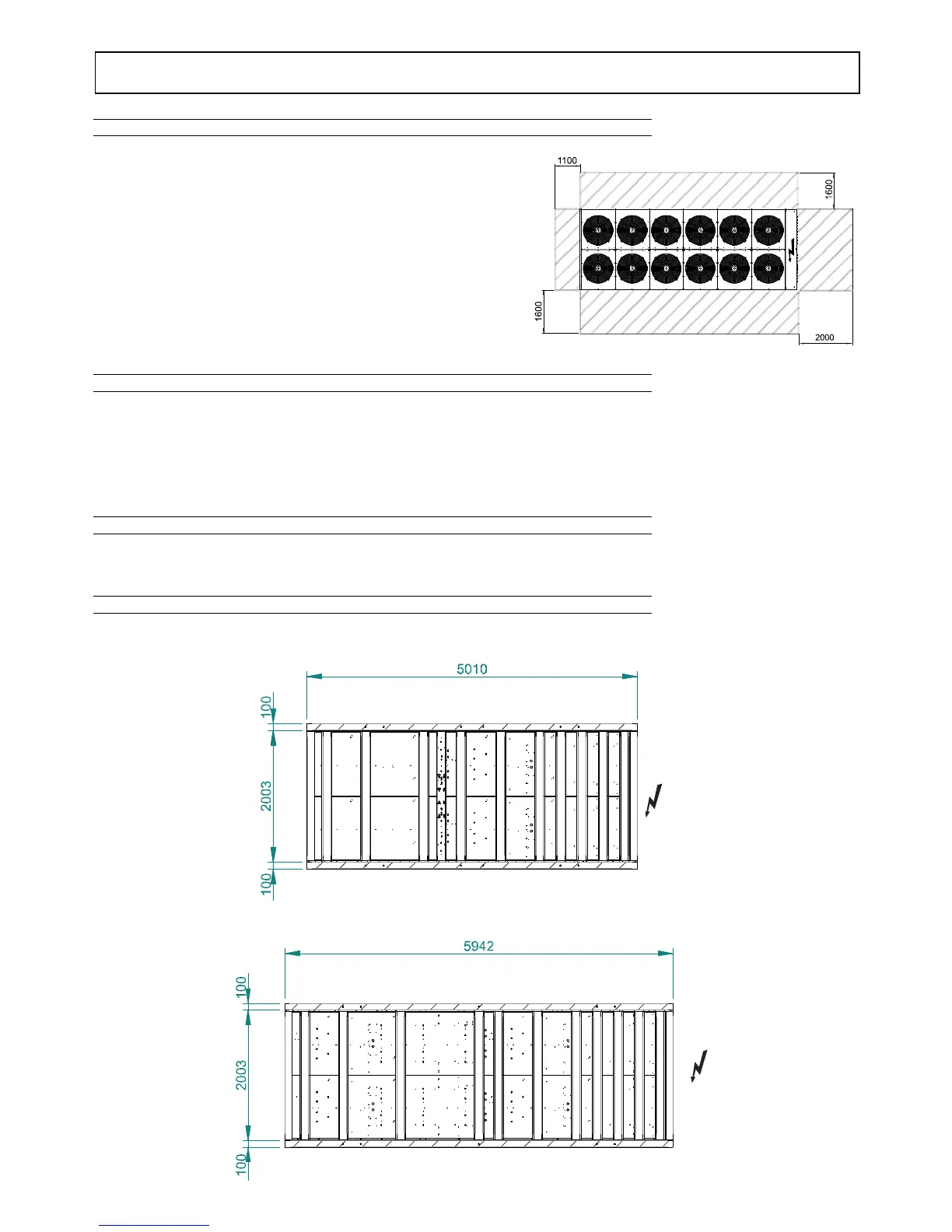

Minimum space required for operation
DIMENSIONAL DATA
Vibration-damper installation
To prevent the operating unit from transmitting vibrations to the bearing structure, vibration dampening materials should be
inserted under the bearing points.
The unit can be supplied with the rubber or spring vibration dampening accessory. This must be mounted by the installer.
In order to avoid transmission of vibrations and noise from the piping is recommended to use the exible joints on supplied with the
hydraulic modules and the tank or supplied on request in other cases.
Consider some lowering of the unit when placed on dampers caused by the compression of rubber or spring.
Condensation
During winter in heat pump mode is produced a large quantity of water from the external batteries due to defrost cycles, provide a
proper drainage system that prevent the stagnation in areas subject to passage of persons.
Area of support
Mod. 350.5 ÷ 490.6
Mod. 560.6 ÷ 630.6
To correctly install, maintain and achieve the best efficiency of the unit,
comply with the measurements for the free area that must be left around
the machine, as shown in the figure.
This will ensure good air circulation, allow the unit to operate correctly and
facilitate future maintenance work.
The distances must be doubled if the unit is to be installed in a pit.
NOTE: Allow for a clear area of not less than 2.5 meters above unit.
The areas installation must be doubled if multiple alligned units are
installed.
