48
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1141 1720 888 141 152 899 514 526 3120 1140 1742 917 145 157 929 531 543 3222
390.6 1115 1699 943 150 162 955 546 558 3313 1114 1721 972 154 167 985 563 576 3417
440.6 1130 1699 959 152 164 971 556 568 3371 1129 1721 989 157 170 1001 573 585 3475
490.6 1114 1696 980 155 168 992 568 580 3443 1113 1718 1010 160 173 1023 585 598 3549
560.6 1131 1939 1048 166 180 1062 607 621 3684 1130 1961 1079 171 185 1092 625 639 3791
630.6 1115 1936 1069 170 183 1082 619 633 3756 1114 1958 1100 175 189 1114 637 651 3865
UNIT WITHOUT WATER STORAGE TANK
IR VERSION
Unit WITHOUT Hydronic Kit
Unit WITH Hydronic Kit
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1132 2011 860 306 310 864 583 587 3511 1131 2033 886 316 320 890 601 605 3617
390.6 1106 1990 908 323 327 912 616 620 3705 1105 2012 934 333 337 939 634 638 3813
440.6 1121 1990 922 328 332 926 625 629 3763 1120 2012 949 338 342 953 643 647 3871
490.6 1105 1987 940 335 339 944 637 642 3836 1104 2009 967 344 348 971 655 660 3945
560.6 1123 2279 1003 357 362 1008 680 685 4094 1122 2301 1031 367 372 1035 699 703 4206
630.6 1107 2276 1021 364 368 1026 692 697 4167 1106 2298 1049 373 378 1054 711 716 4280
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1133 2189 912 444 456 924 677 690 4102 1132 2197 935 455 467 947 694 708 4206
390.6 1112 2155 955 464 477 967 709 723 4295 1111 2164 978 476 489 991 727 740 4401
440.6 1124 2150 968 471 483 980 719 732 4353 1124 2159 991 482 495 1004 736 750 4459
490.6 1111 2142 984 479 491 997 731 745 4426 1111 2151 1007 490 503 1021 748 762 4532
560.6 1125 2508 1039 506 519 1053 772 787 4676 1125 2516 1064 517 531 1078 790 805 4785
630.6 1112 2499 1056 513 527 1070 784 799 4749 1112 2506 1080 525 540 1094 802 817 4859
UNIT WITH WATER STORAGE TANK
IR VERSION
Unit WITHOUT Hydronic Kit
Unit WITH Hydronic Kit
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1126 2378 875 620 623 878 747 751 4494 1125 2389 896 635 638 899 765 768 4601
390.6 1105 2348 913 647 650 916 780 783 4688 1104 2359 934 662 665 937 798 801 4797
440.6 1117 2344 924 654 658 927 789 793 4745 1117 2356 945 670 673 949 807 811 4855
490.6 1104 2337 938 665 668 941 801 805 4818 1103 2349 960 680 683 963 820 823 4929
560.6 1119 2738 990 702 705 994 846 850 5087 1118 2748 1013 717 721 1016 865 869 5201
630.6 1106 2730 1005 712 716 1008 858 862 5161 1105 2741 1027 728 731 1031 877 881 5275

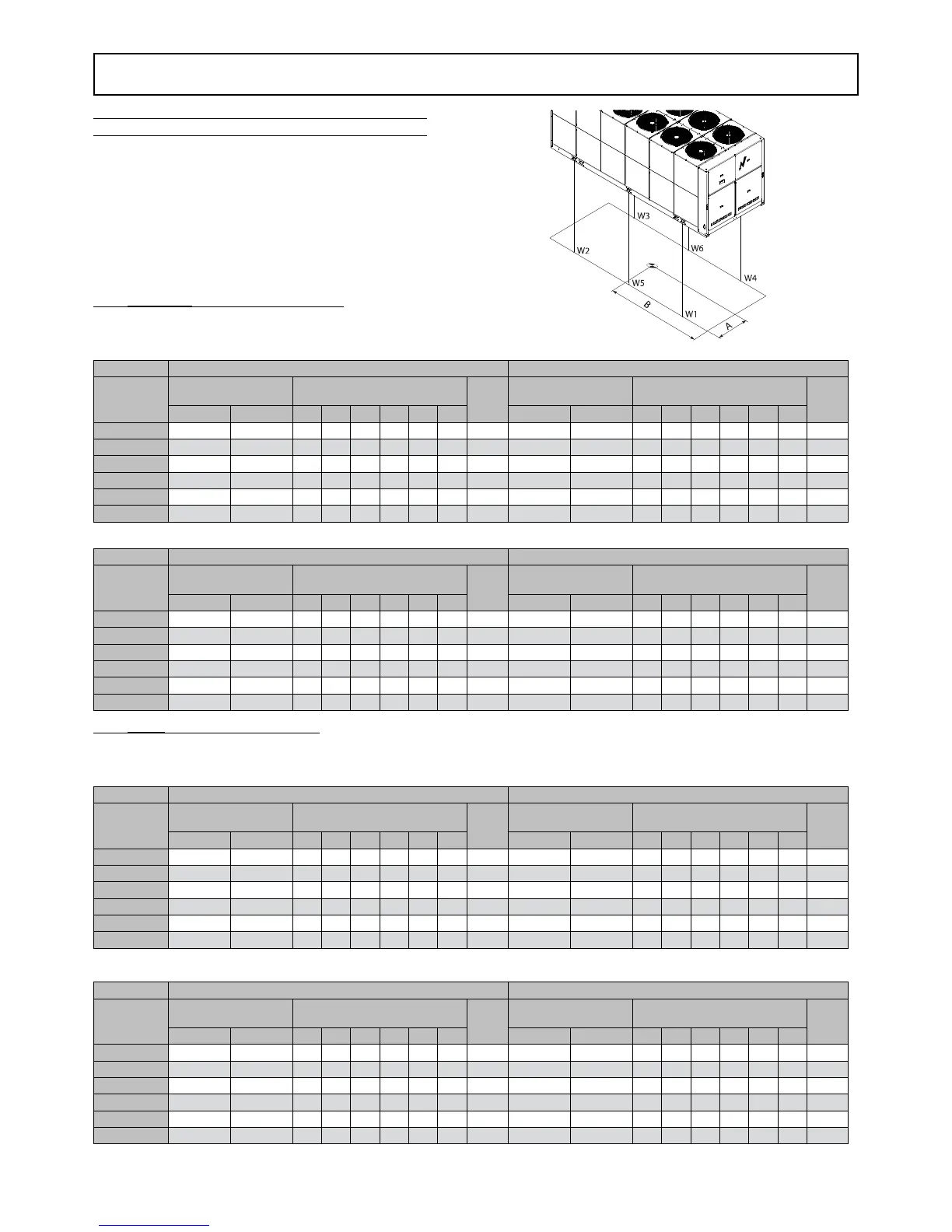

WEIGHT DURING OPERATION AND TRANSPORT
Weight during operation
NOTE: For Desuperheater versions VD the total weight increases of 4%. For Heat recovery versions VR the total weight
increases of 10%.
