Ferroli RHA series User Manual

49

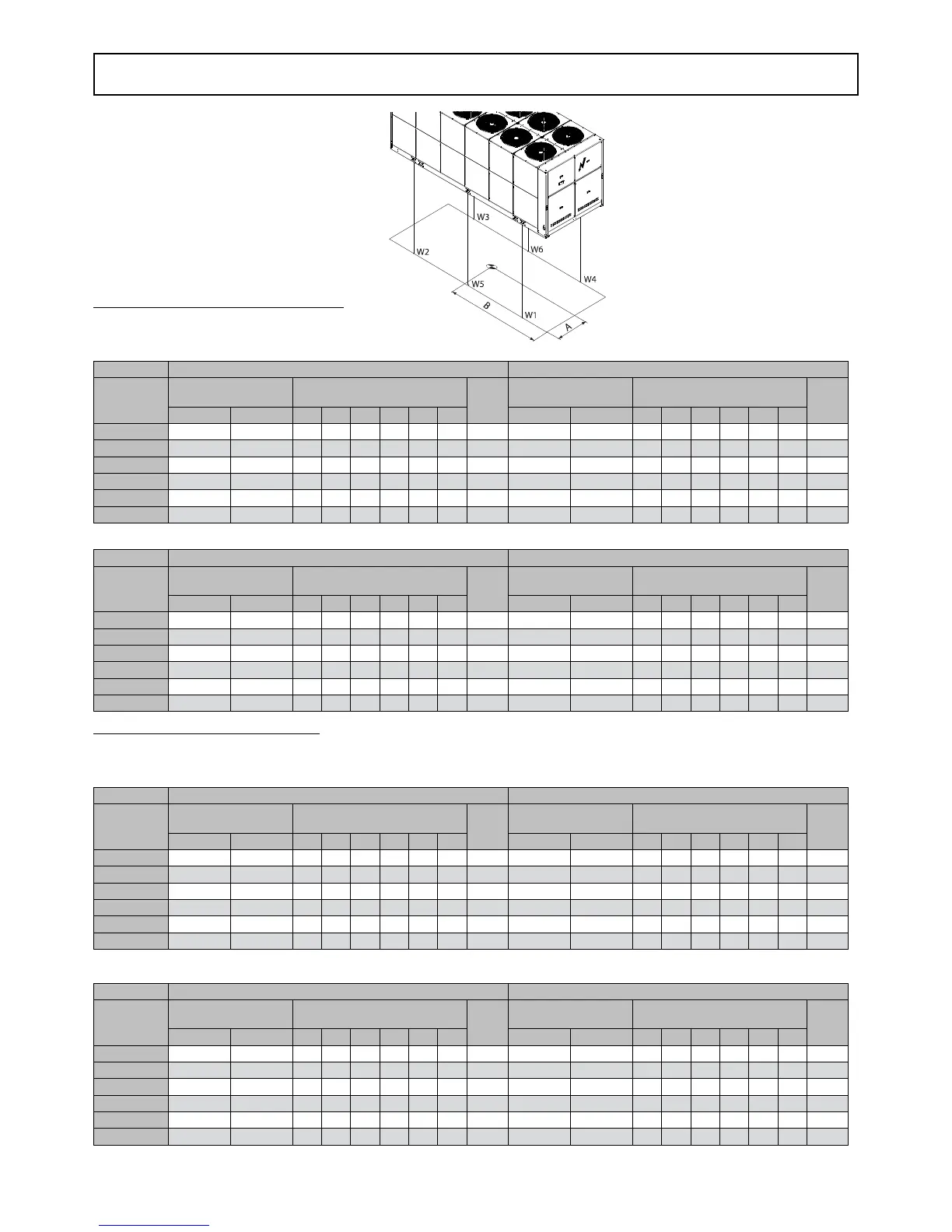

WEIGHT DURING OPERATION AND TRANSPORT
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1140 1738 948 150 163 960 549 561 3332 1139 1760 977 155 168 990 566 579 3434
390.6 1114 1717 1007 160 173 1020 583 596 3538 1113 1739 1036 164 178 1050 600 614 3642
440.6 1129 1717 1024 163 176 1037 593 607 3600 1128 1739 1054 167 181 1067 611 624 3704
490.6 1113 1714 1046 166 179 1060 606 620 3677 1112 1736 1076 171 185 1090 623 637 3782
560.6 1130 1957 1119 178 192 1134 649 663 3934 1129 1979 1150 182 197 1165 666 681 4041
630.6 1114 1954 1141 181 196 1156 661 676 4011 1113 1976 1172 186 201 1187 679 694 4119
UNIT WITHOUT WATER STORAGE TANK
IP VERSION
Unit WITHOUT Hydronic Kit
Unit WITH Hydronic Kit
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1131 2029 919 327 331 923 623 627 3749 1130 2051 945 336 341 949 641 645 3855
390.6 1105 2008 969 345 349 974 657 662 3956 1104 2030 996 355 359 1000 675 680 4064
440.6 1120 2008 985 351 355 989 668 672 4018 1119 2030 1011 360 364 1016 686 690 4126
490.6 1104 2005 1004 357 362 1008 681 685 4096 1103 2027 1031 367 371 1035 699 703 4205
560.6 1122 2297 1071 381 386 1076 726 731 4372 1121 2319 1099 391 396 1104 745 750 4484
630.6 1106 2294 1091 388 393 1095 739 744 4450 1105 2316 1118 398 403 1123 758 763 4562
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1132 2183 961 468 480 974 714 727 4324 1132 2193 984 479 492 997 731 745 4427
390.6 1112 2150 1007 490 503 1020 748 762 4530 1111 2160 1030 501 515 1044 765 780 4635
440.6 1124 2145 1021 496 510 1034 758 772 4591 1123 2155 1044 508 522 1058 776 790 4697
490.6 1111 2137 1038 505 518 1052 771 785 4669 1110 2148 1061 516 530 1075 788 803 4775
560.6 1125 2498 1097 534 548 1112 815 831 4937 1124 2507 1122 546 560 1136 833 849 5046
630.6 1112 2489 1115 542 557 1129 828 843 5014 1111 2498 1139 554 569 1154 846 862 5124
UNIT WITH WATER STORAGE TANK
IP VERSION
Unit WITHOUT Hydronic Kit
Unit WITH Hydronic Kit
Acustic version
AB-AS AX
Mod.
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
Center of gravity
position [mm]
Load on bearing points [Kg]
Total
Weight
[Kg]
A B W1 W2 W3 W4 W5 W6 A B W1 W2 W3 W4 W5 W6
350.6 1126 2376 923 654 657 927 789 792 4742 1125 2388 944 669 672 948 806 810 4849
390.6 1104 2347 963 683 686 967 823 827 4949 1103 2359 985 698 701 988 841 845 5058
440.6 1117 2343 976 691 695 979 833 837 5011 1116 2356 997 706 710 1000 851 855 5120
490.6 1103 2337 991 702 706 994 846 850 5089 1102 2350 1012 717 721 1016 865 868 5199
560.6 1118 2733 1047 742 745 1050 894 898 5376 1118 2744 1069 757 761 1073 913 917 5489
630.6 1105 2725 1062 752 756 1066 907 911 5454 1104 2737 1084 768 772 1088 926 930 5568
NOTE: For Desuperheater versions VD the total weight increases of 4%. For Heat recovery versions VR the total weight
increases of 10%.
