1.1 Mode of operation of input modules CP-E16...-M...
The CP input modules contain digital inputs for con-
necting sensors, thereby enabling e.g. cylinder positions
to be interrogated. A distinction is made between the
following types:

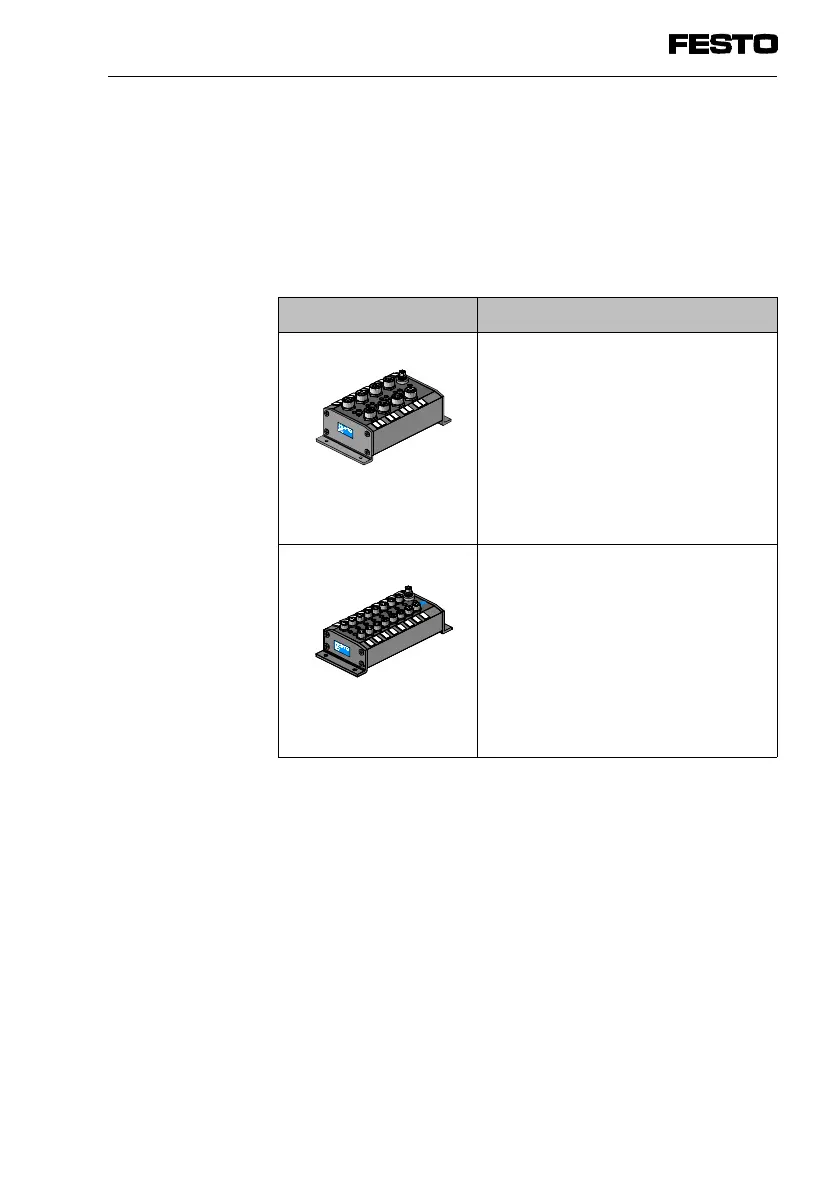

Type Explanation
CP-E16-M12X2
CP-E16N-M12X2
Provides 16 PNP inputs;
sensor connections via 8 sockets with
M12 thread
Provides 16 NPN inputs;
sensor connections via 8 sockets with
M12 thread
CP-E16-M8
CP-E16N-M8
Provides 16 PNP inputs;
sensor connections via 16 sockets with
M8 thread
Provides 16 NPN inputs;
sensor connections via 16 sockets with
M8 thread
1. Input module type CP-E16...-M...
CP-E16...-M... 9611A 1-3
