2.3.1 Connecting the actuators
Use plugs with union nuts with M12 thread for connect-
ing the actuators. Fasten the plugs with the aid of the
union nuts in order to avoid unintentional loosening e.g.
due to vibration.
Seal the unused sensor connections with the protective
caps supplied. Only then is compliance with class of
protection IP65 ensured.

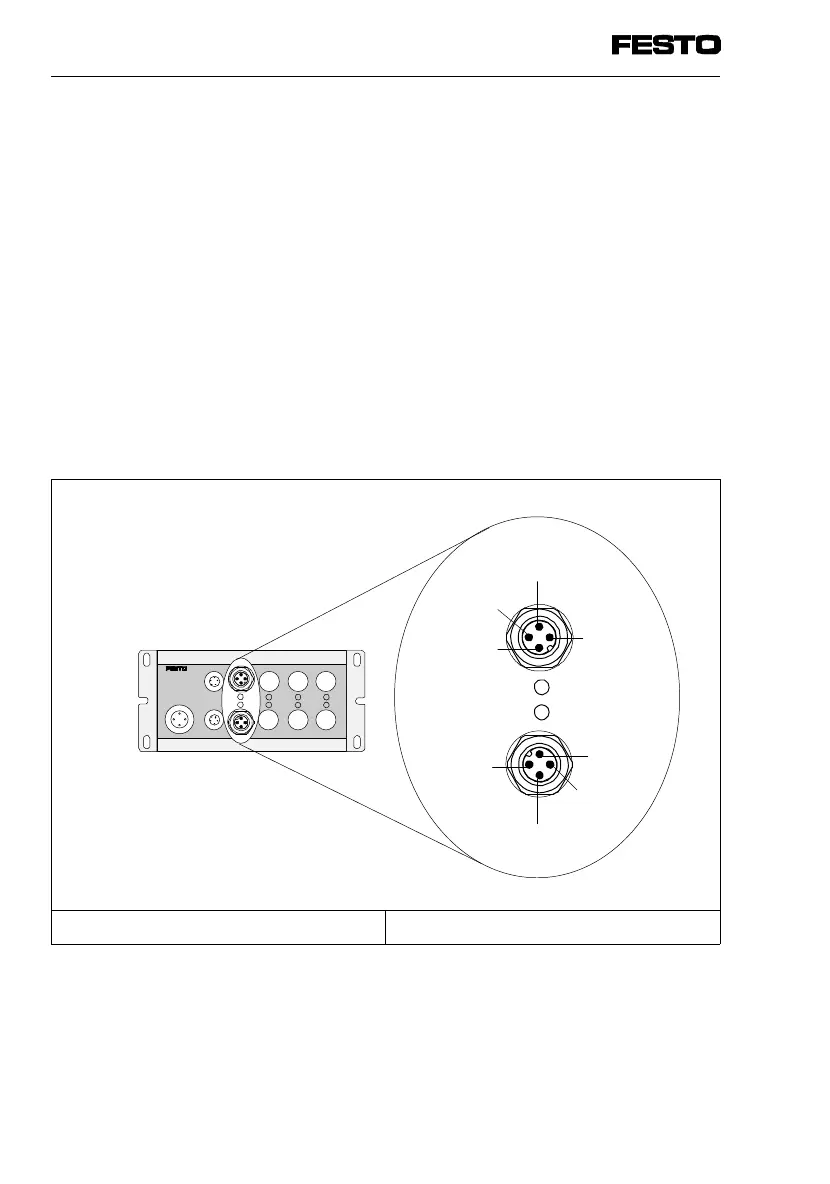

Pin assignment of the actuator connections
CP-A08-M12 (PNP outputs)
n.c. = not connected A = Output
Fig. 2/3: Pin assignment of output module CP-A08-M12
1
0
3
2
OUT 7
6 4
5
IN
13
2 0
Ax+1
Pin 3: 0V
Pin 4: Ax
Pin 4: Ax+1
Pin 3: 0V
Ax
Pin 1: n.c.
Pin 1: n.c.
Pin 2: n.c.
Pin 2: n.c.
2. Output module type CP-A08...-M12
2-6 CP-A08...-M12 9611A
