1.2 Fitting
Input modules are intended for fitting onto walls or hat
rails. For fitting them onto walls you will require the fol-
lowing surface areas:
Type Surface area
CP-E16-M8 approx. 150 x 66 mm
2
CP-E16-M12x2 approx. 141 x 78 mm
2

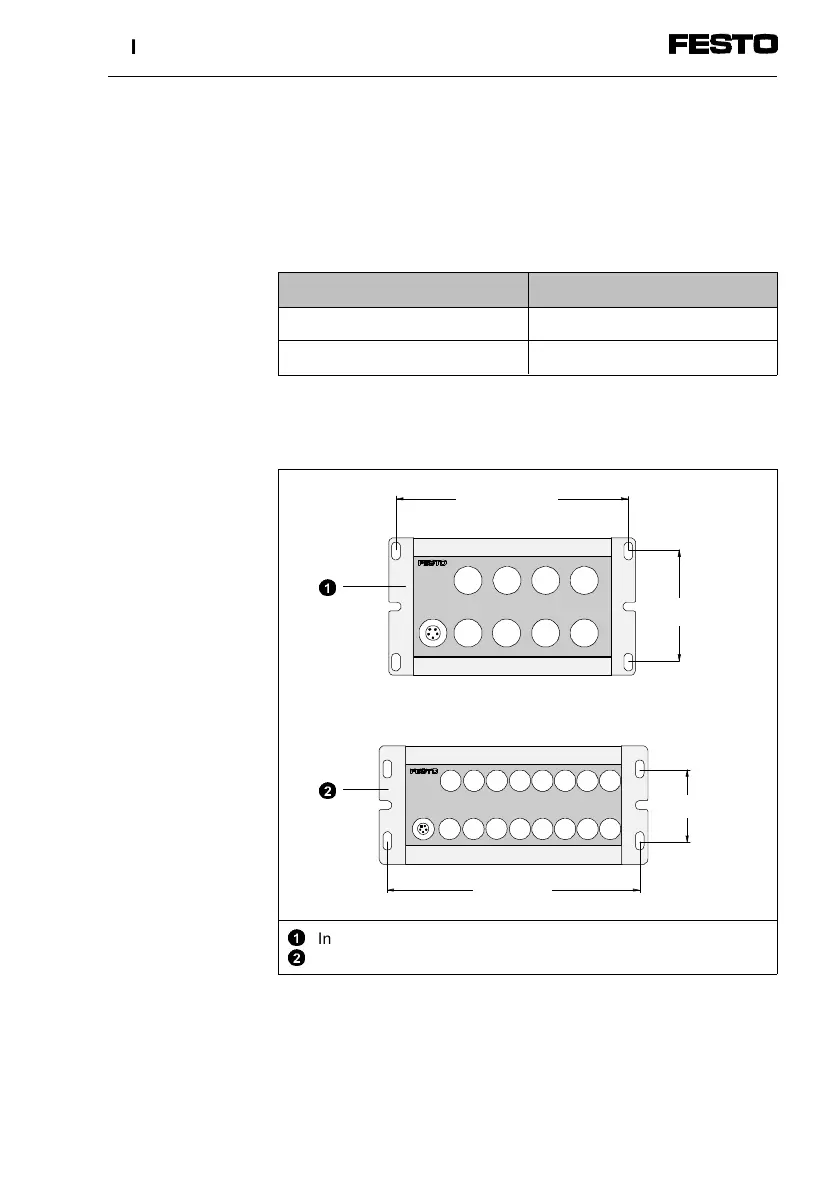

The diagram below shows the dimensions of the four
threaded holes of screw size M4.
Fitting on
a wall
1
2
Input module, type CP-E16...-M12x2
Input module, type CP-E16...-M8
Fig. 1/2: Fitting dimensions CP-E16...-M...
139.9 mm
63 mm
40 mm
131.9 mm
2
1
1. Input module type CP-E16...-M...
CP-E16...-M... 9611A 1-5
