1.1.1 Display and connecting elements

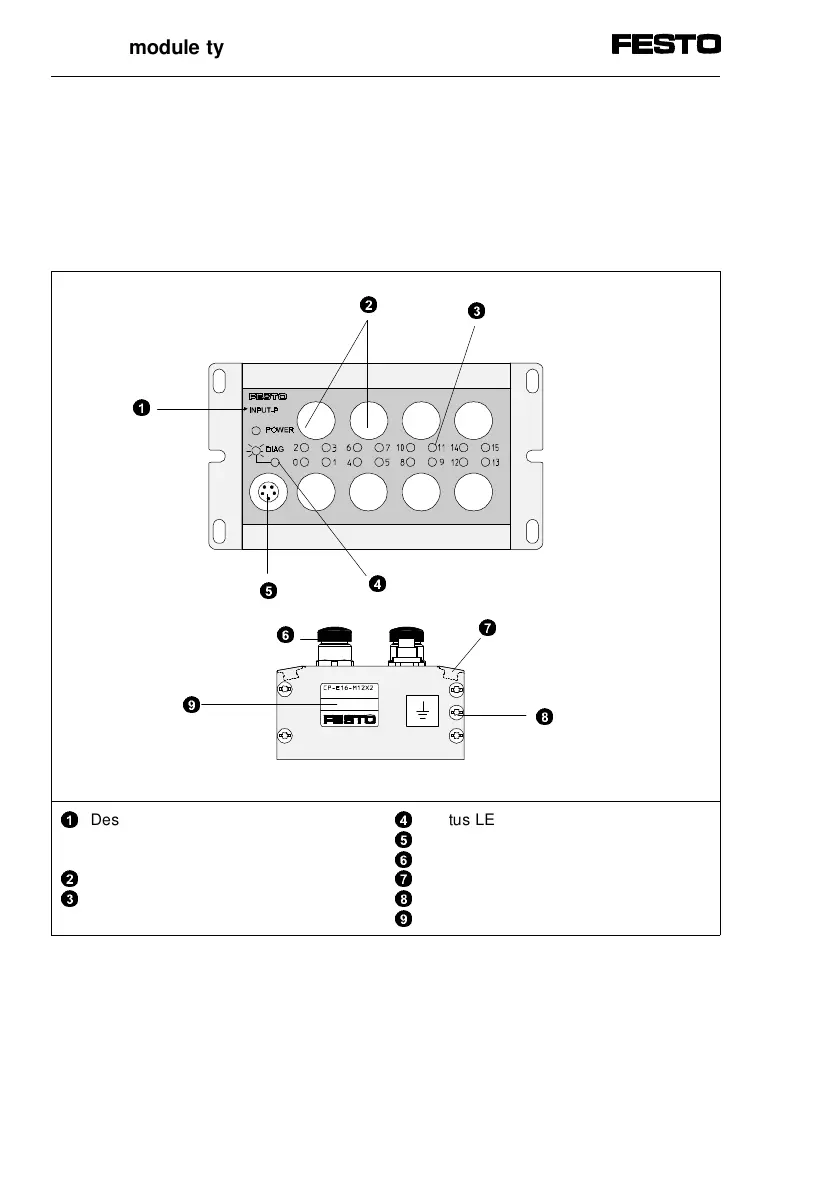

The diagram below shows the display and connecting
elements using the example of input module
CP-E16-M12x2.
1
2
3
Designation for input type:
- INPUT-P for PNP inputs
- INPUT-N for NPN inputs
Sensor connections
Green LED for status display
(one LED per input)
4
5
6
7
8
9
Status LED (green)
CP connection
Protective cap
Groove for inscription signs (ISB 6x10)
Functional earthing
Type plate
Fig. 1/1: Display and connecting elements
2
6
4
3
5
7
9
1
8
1. Input module type CP-E16...-M...
1-4 CP-E16...-M... 9611A
