Circuitry examples of CP-E16N-M12x2
(NPN inputs)
Pin assignment
Circuitry examples
1
2
3
2-way connector (T piece)
Sensor 2 (Ex+1) (negative switching)
Sensor 1 (Ex) (negative switching)
E = Input

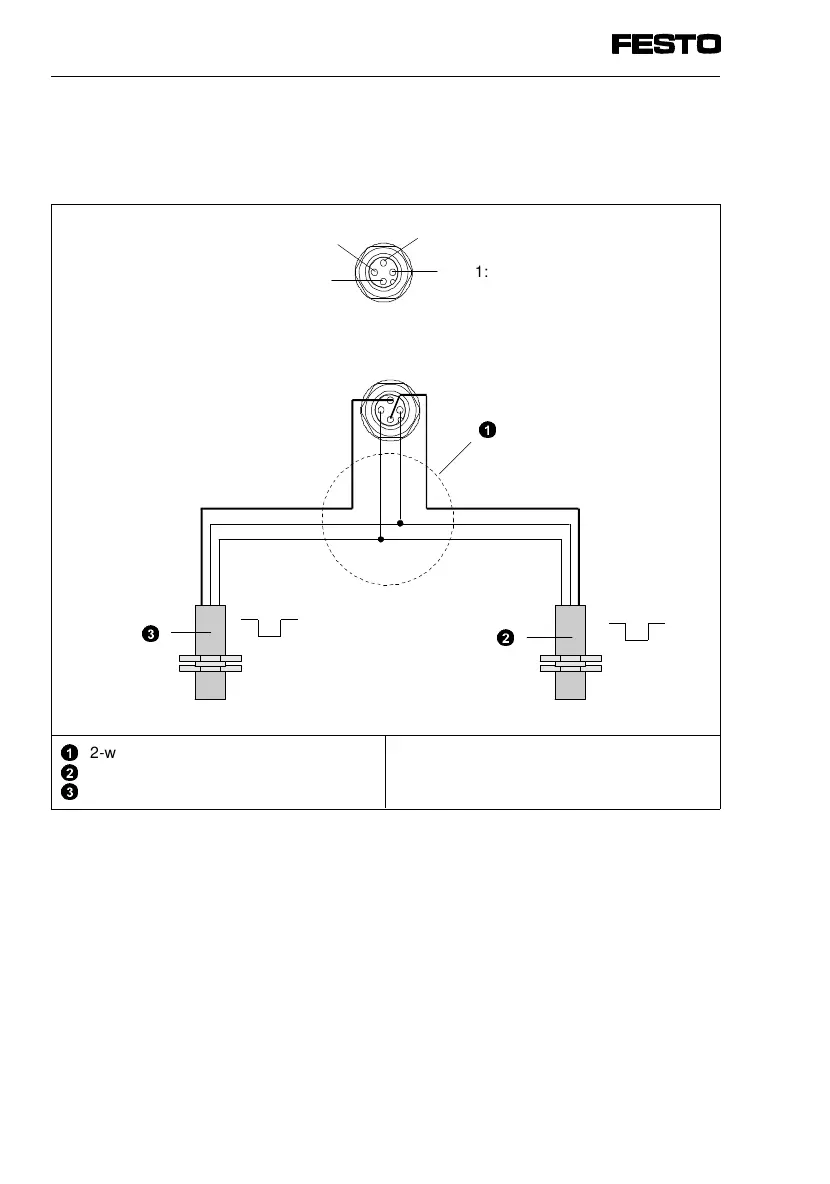

Fig. 1/13: Circuitry examples of input module CP-E16N-M12x2
1
2
3
Pin 1: 24 V
Pin 4: Ex
Pin 3: 0 V
Pin 2: Ex+1
1. Input module type CP-E16...-M...
1-18 CP-E16...-M... 9611A
