Festo CPX-CEC-C1-V3 User Manual

Festo control block CPX-CEC
4.4.4 Manually adding a device
You can also manually add a known device as an alternative to automatic selection.
1. Highlight the local gateway.
2. Click the "Add device..." button.

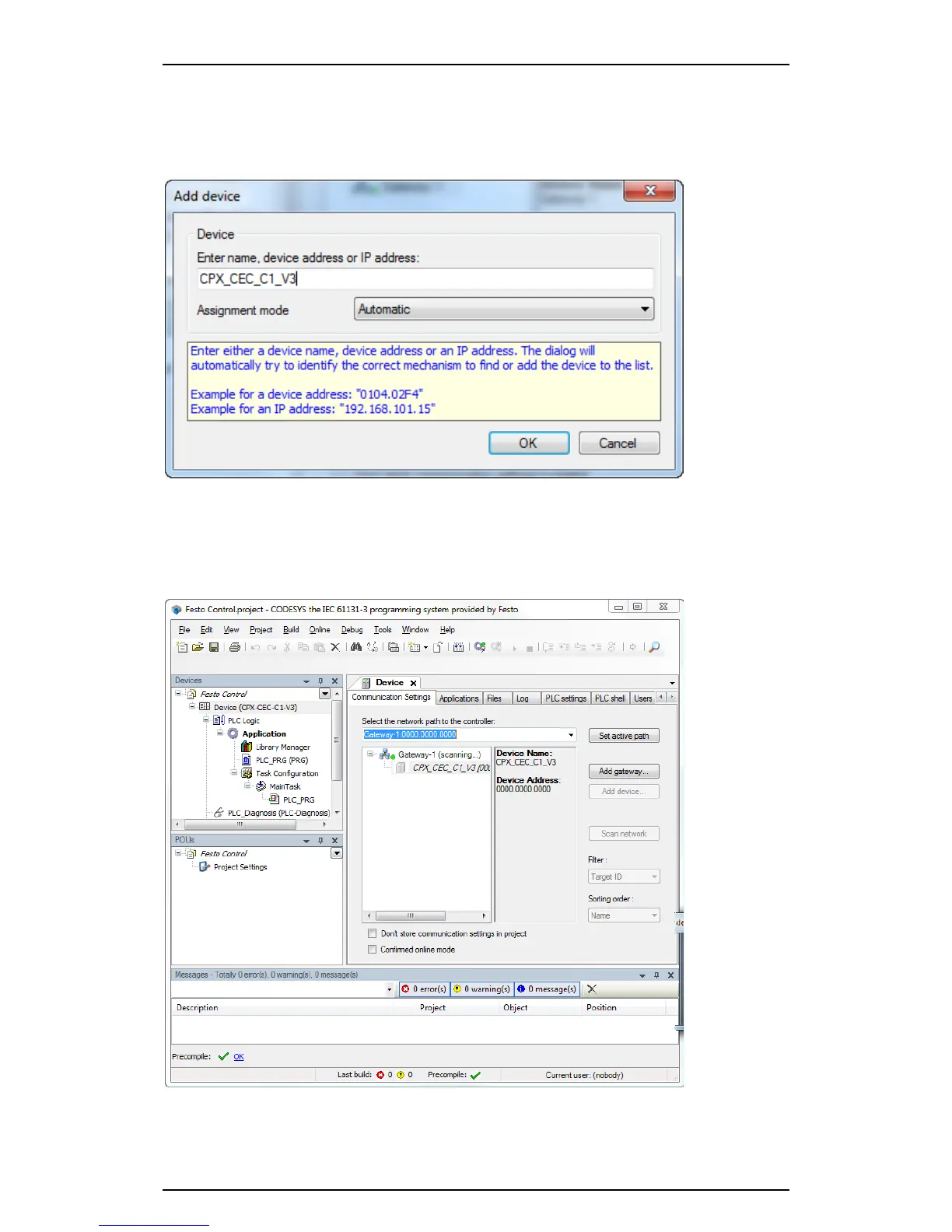

Figure: "Add device" dialog
3. Enter the name, node address or IP address of the device to be connected in the "Add device" dialog
and confirm your entries by clicking "OK".
Following the update, a list of all CPX-CEC-...-V3 devices in the local gateway that match the filter settings
is displayed.
Figure: Local gateway with devices
24

Festo CPX-CEC-C1-V3 Specifications

General

Brand	Festo
Model	CPX-CEC-C1-V3
Category	Controller
Language	English
