Festo CPX-FB14 - MS Module Status LED

3. Diagnostics
3-9
Festo P.BE-FB14-EN en 1411d English

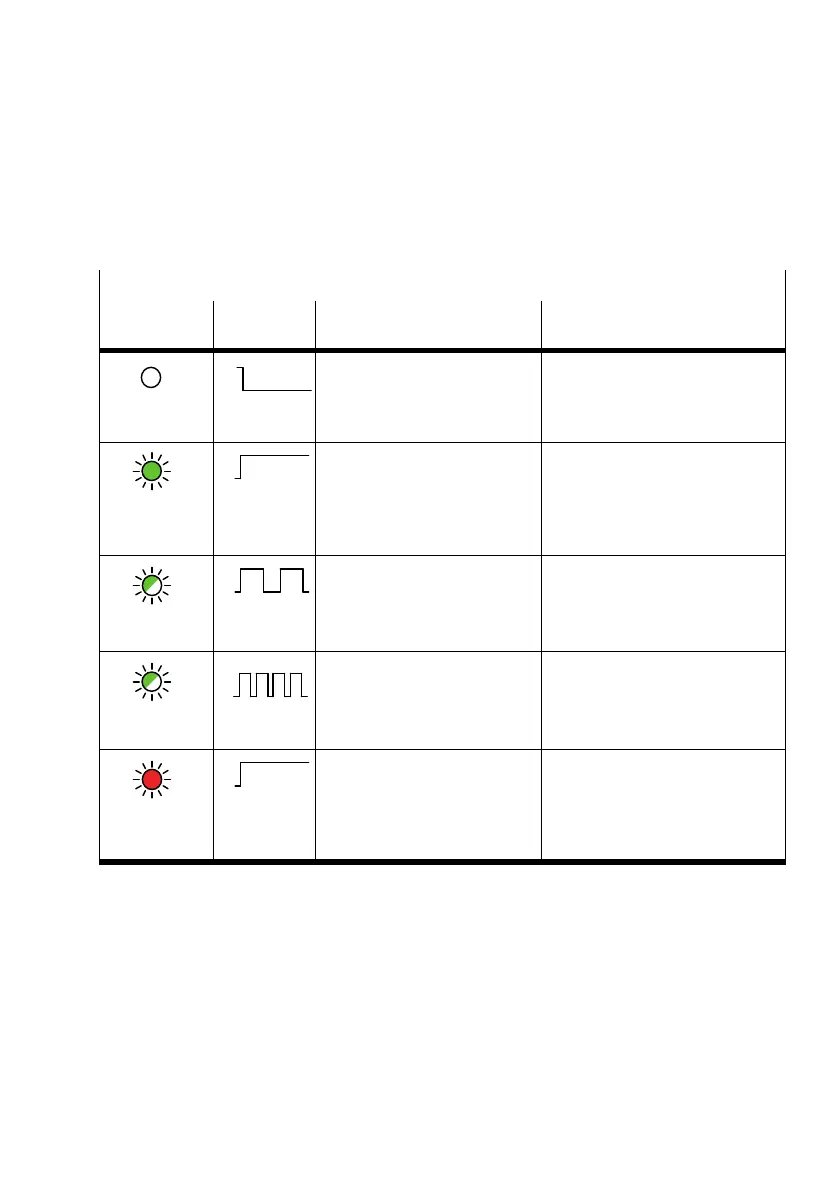

3.2.3 Displays of the CANopen-specific LEDs MS, NS, IO
MS (module status)
LED
(green/red)
Process Status Error handling
LED not
illuminated
ON
OFF
LSS is activated
No station number configured
 set station number and baud
rate via LSS protocol, if
necessary
LED
illuminated
green
ON
OFF
Operational –
LED flashing
green
ON
OFF
0.5 Hz
Pre-operational  put CPX terminal into the
operational mode, if necessary
LED flashes
green fast
ON
OFF
2 Hz
Stopped  put CPX terminal into the
operational mode, if necessary
LED
illuminated
red
ON
OFF
Hardware error Servicing required
Tab. 3/7: “MS” LED status display
