Specifications and Requirements
Water Requirements:
Electrical: See electrical configuration chart. 120
Volt; 208-240 Volt; 230 Volt and user configurable
CBS-1231 &1232: 20-75 psig, (138-517kPa) 1½gpm/(5.7lpm)
Water inlet fitting is a 3/8 inch male flare.
Brewer supplied with inlet valve adaptor for BSP to SAE
Tank Temperature, as set by factory:
200°F (93°C) inside water tank (at sea level)
Brew Volume: Full Batch 3.8 liters; second batch 2.9 liter)
User adjustable from 0.95 liter to 4.75 liters per brew
Water supply: (Optimal) 100-150TDS
All beverage equipment must use filtered water.
Total Brew Cycle—Factory default setting: First batch: 5:30 minutes=[4 minute brew time + 1.30 minute drip delay]
Second batch: 5:00 minutes=[3:30 minute brew time + 1:30 minute drip delay]
Brew-Process parameters are user controllable for:
Brew Volume, Brew Time, Prewet Percent and Prewet Delay, Drip Delay
Weights and Capacities
Model Height Width Depth
Water tank
capacity
Empty
Weight
Filled
Weight
Shipping
Weight
Shipping Dimensions
CBS-1231
Brewer
27 3/4 in
700 mm
11 3/4 in
300 mm
20½ in
520 mm
3.3 gallon
12.4 L
29 lbs
13.2 kg
55 lbs
25.0 kg
41 lbs
18.6 kg
30” x 17” x 22”
76.2 x 43.2 x 55.9 cm
CBS-1232
Brewer
27 3/4 in
700 mm
19 ¾ in
500 mm
20½ in
520 mm
6.0 gallon
22.4 L
47 lbs
21.3 kg
92 lbs
41.7 kg
55 lbs
25.0 kg
30” x 23” x 25”
76.2 x 58.4 x 63.5 cm
Calibrated for
3.8 L/1.0 gal brew
Brew Basket 13” X 5” Coffee Filter 13” X 5 or FETCO# F002”
1” legs standard
2.5” legs optional

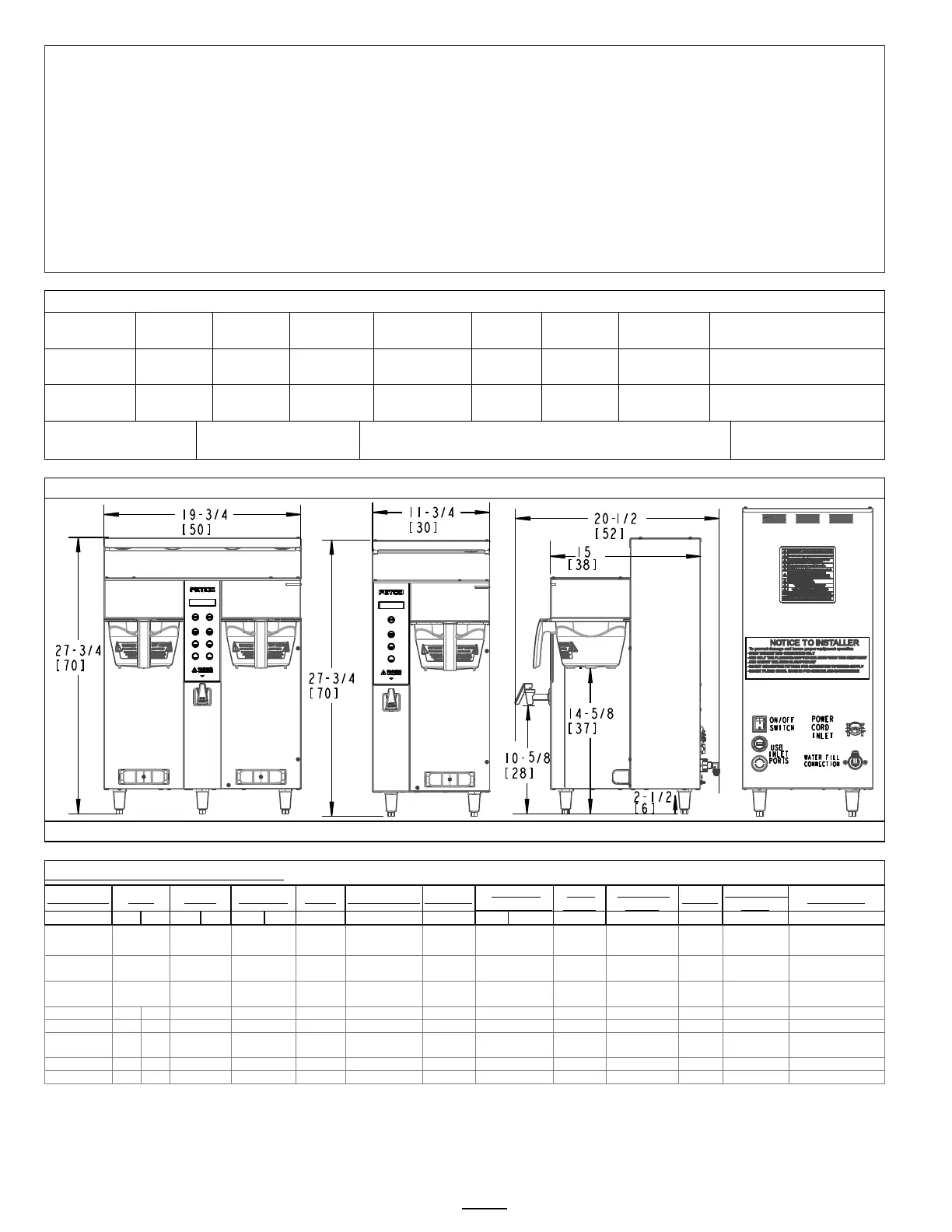

Rough-In Drawings 1201.00055.00 (CBS-1231) 1201.00054.00 (CBS-2132)
CBS-1232 Front CBS-1231 Front Side (both) Back (both)
EXAMPLE: SKU E1231US-1X117-PM001
SKU NUMBER IDENTIFICATION KEY
Product Line Level Family Region ID Phase Voltage Range # Heaters
Individual
Heater Wattage
Brew
Basket
Hot Water
Faucet
Bypass
Brew Basket
Locks
Power Cord
E
1
2
3
1
U
S
1
A
1
1
5
P
M
0
0
1
E=extractor
US =United
States
1 A = 100-120 1 1.5 P=plastic M=manual 1=Yes 1=Yes 0=Terminal Block
12=PLUS
Series
31=
single side
IN =
International
2 B = 200-240 2 1.7 M=metal A=automatic 0=no 0=no 1= NEMA 5-15P
32=
dual side
CE = CE 3 C = 380-415 3 2.3 N=None 2=NEMA 5-20P
NM = NOM
U = 1 or 3
D = 440-480
3.0
3=NEMA 6-15P
4.0
4=NEMA 6-30P
X=120 or 240
Dual Voltage
5.0 5=CEE 7/7 Schuko
6=UK1-13P
7= AUSTRALIAN
