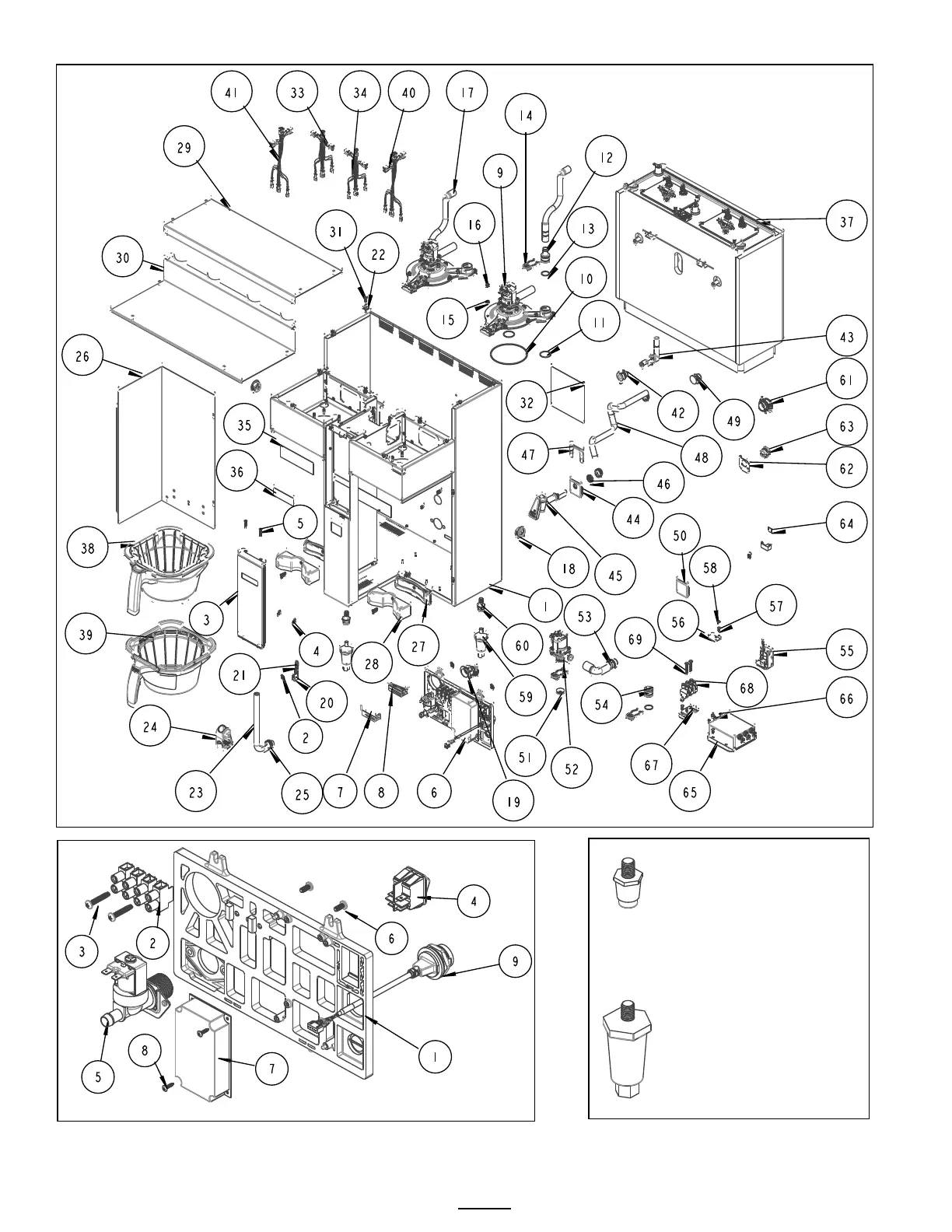

Parts Diagrams CBS-1232
#6 Part Number1102.00471.00
ELECTRICAL COMPONENT LATTICE
Drawing 1101.00571.00
Parts CBS-1232
2-1/2” legs
Extends to 3 5/8”
Part number 1073.00016.00
3 required for CBS-1232
4 required for CBS-1231
1” standard legs
Extends to 1 3/8”
Part number 1073.00019.00
3 required for CBS
-1232
4 required for CBS-1231
