Fetco Extractor Plus CBS-1231 - CBS-1232 Tank Assembly

Go to fetco.com for the latest versions of all information Page 24 User Guide & Operator instructions P211e0November 2021
CBS-1232 Tank Assembly

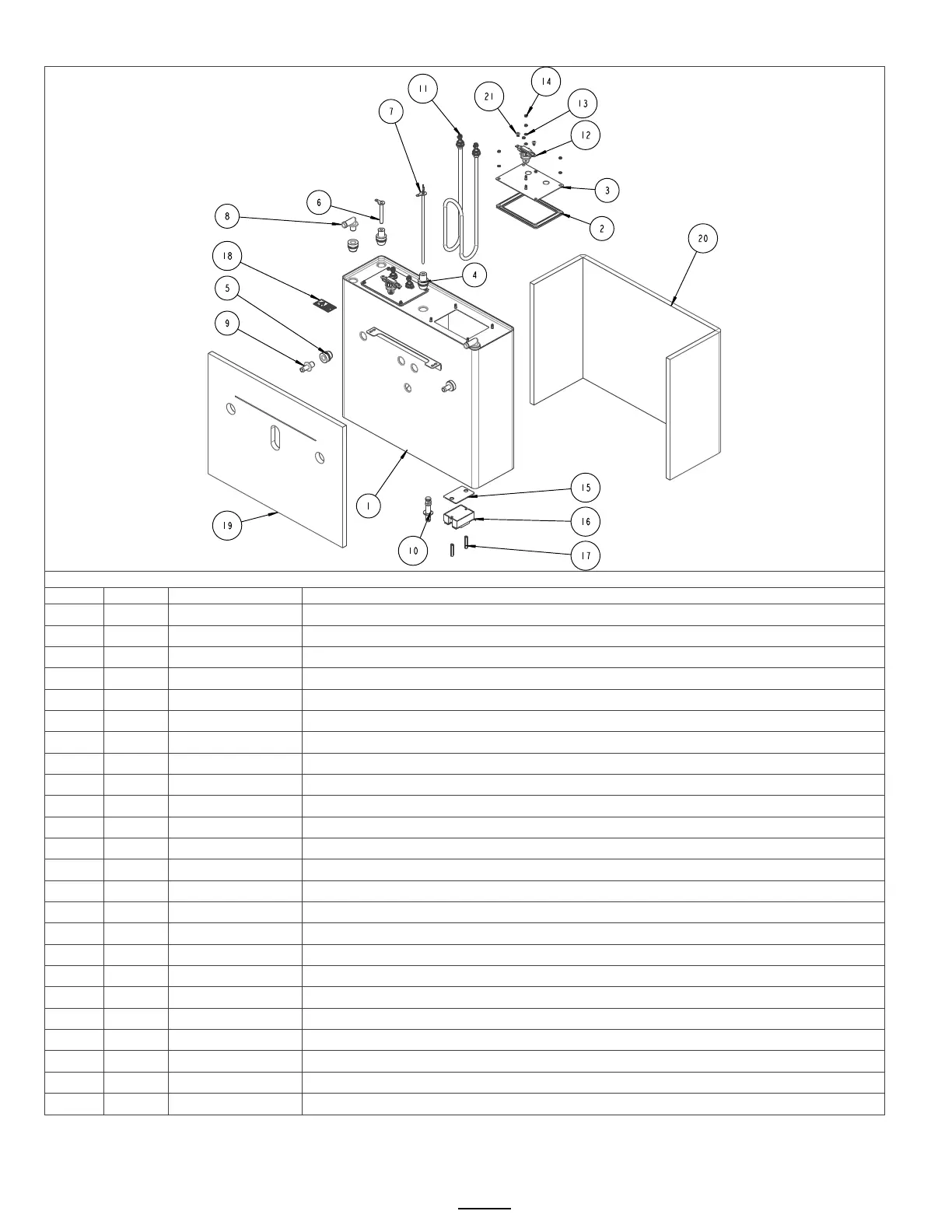

CBS-1232 Hot Water Tank Drawing 1104.00176.00
Ref#
Qty
Part number
Description
1
1
1114.00169.00
WELDMENT TANK CBS-2232, GROMMET DESIGN
2
2
1024.00115.00
TANK GASKET - NG HEATER PLATE, ONE ELEMENT
3
2
1114.00181.00
WELDMENT TANK HEATER BRACKET, NG-2232
4
2
1024.00053.00
LEVEL AND TEMP PROBE GROMMET
5
5
1024.00050.00
GROMMET, SILICONE, 11.4mm ID
6
1
1112.00002.00
PROBE WELDMENT, WATER LEVEL 2.25" LG
7
1
1102.00161.00
PROBE ASSEMBLY, TEMP. AND LLC, 8" LONG
8
2
1023.00212.00
FITTING, ELBOW, GROMMET, .500"
9
2
1023.00168.00
FITTING, STRAIGHT, GROMMET, .400"
10
1
1023.00166.00
FITTING, COLD WATER INLET, GROMMET DESIGN
11
2
1107.00019.00
HEATER ASSEMBLY, IMMERSION 2300W/120VAC
11
2
1107.00020.00
HEATER ASSEMBLY, IMMERSION 2300W/240VAC
11
2
1107.00018.00
HEATER ASSEMBLY, IMMERSION 3kW/240VAC
11
2
1107.00040.00
HEATER ASSEMBLY, IMMERSION 4kW/240VAC
12
2
1053.00052.00
THERMOSTAT, SINGLE SHOT, SCREW CONNECTIONS, 240V/25A,
13
12
1083.00009.00
WASHER, #6 SCREW , INTL TOOTH LOCKWASHER
14
12
1084.00010.00
NUT, HEX, #6-32, UNDERSIZED, ZINC PLATED
15
2
1003.00140.00
ALUMINUM BRACKET FOR SSR
16
2
1052.00033.00
RELAY, SOLID STATE, 50A/480VAC, W/BUILD IN VARISTOR
17
4
1081.00042.00
STANDOFF, 1/4" HEX
18
1
1044.00004.00
LABEL, DANGER, HIGH VOLTAGE
19
1
1022.00113.00
TANK INSULATION, CBS-2232 FRONT
20
1
1022.00116.00
TANK INSULATION, CBS-2232 BACK
21
4
1082.00136.00
BRASS SCREW, #8-32 X 1/4", PHILLIPS PAN HEAD
