Fetco Extractor Plus CBS-1231 - Page 25

Go to fetco.com for the latest versions of all information Page 25 User Guide & Operator instructions P211e0November 2021

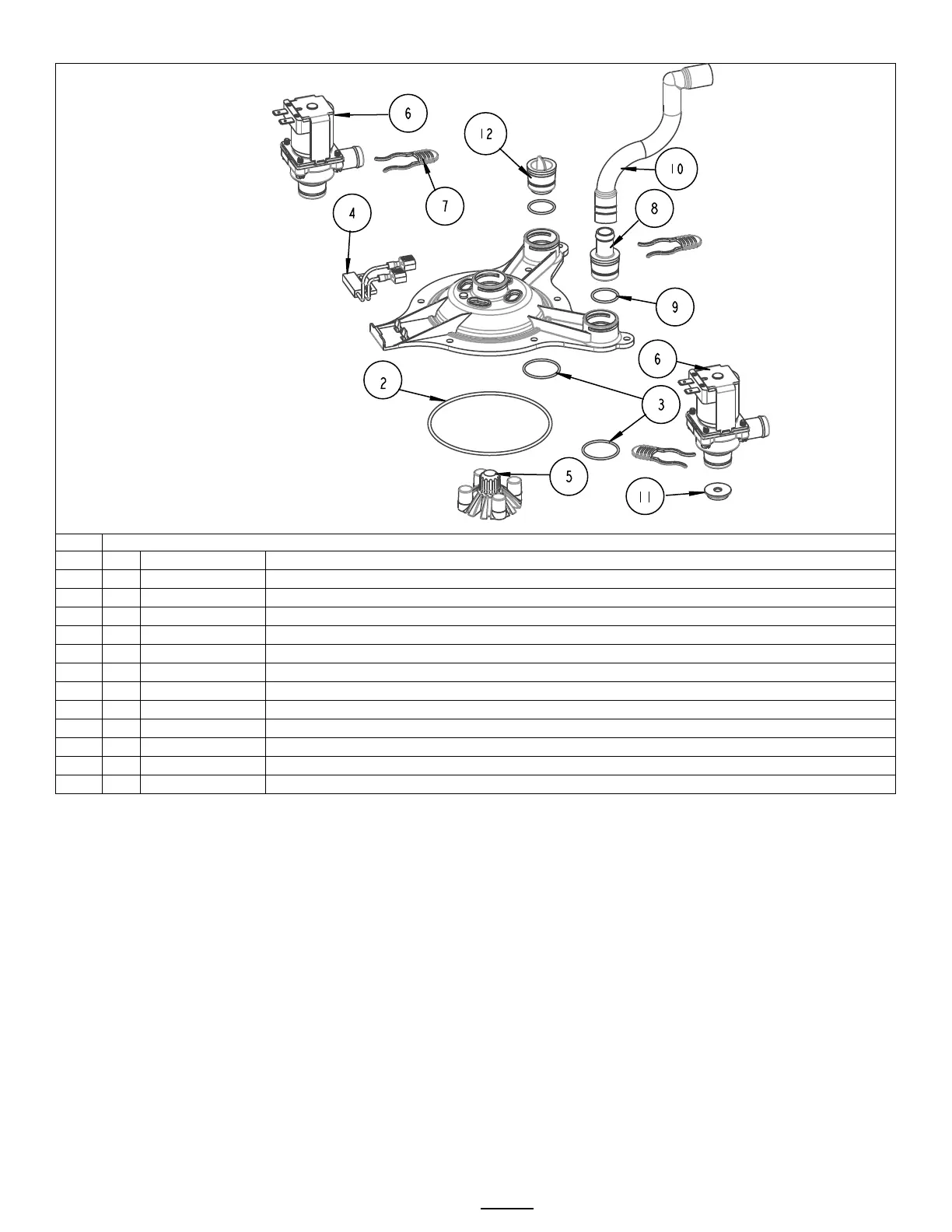

Part number 1102.00451.00 Small Spray Assembly Parts-Quick connect version
Ref#
Qty
Part number
Description
1
1
1000.00143.00
SPRAY HEAD BASE (KIT), QUICK CONNECT, 30/40'S
2
1
1024.00063.00
O-RING, 3 15/16" x 3/32" CS, DASH # 154, BUNA-N, DURO-A50
3
2
1024.00107.00
O-RING, 1 3/16" OD X 1 1/16" ID X 1/16" TH, BYPASS SEAL
4
1
1102.00113.00
SWITCH, REED, ASSEMBLY
5
1
1102.00479.00
ASSEMBLY, CASCADE SPRAY DOME, NEXT GEN, ORANGE
6
2
1057.00076.00
VALVE ASSEMBLY, COMPLETE, NG, DELTROL (interchangeable with 1057.00078.00)
6
2
1057.00078.00
VALVE ASSEMBLY, COMPLETE, NG, RPE (interchangeable with 1057.00076.00)
7
3
1023.00342.00
QUICK CONNECT CLIP
8
1
1023.00343.00
VENT INSERT, QUICK CONNECT
9
2
1024.00106.00
O-RING, 13/16"OD X 11/16"ID X 1/16" TH, FOR QUICK CONNECT
10
1
1024.00098.00
VENT TUBE, CBS- EXTRACTOR SERIES
11
1
1023.00369.00
ORIFICE INSERT, QUICK CONNECT, 3/16" HOLE
12
1
1023.00344.00
PLUG INSERT, QUICK CONNECT
P/N 1102.00451.00 BASIC
QUICK CONNECT SRAYHEAD ASSEMBLY
