Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
FIBOCOM L850-GL Series Hardware Guide Page 31 of 59
+3.3V
PERST#
RESET#
Module State
D3
cold
L2@S0/S0ix
D0 L0@S0/S0ix
FCPO#
D0 L0@S0/S0ix
PEWAKE#
Host assert Host de-assert
CLKREQ#

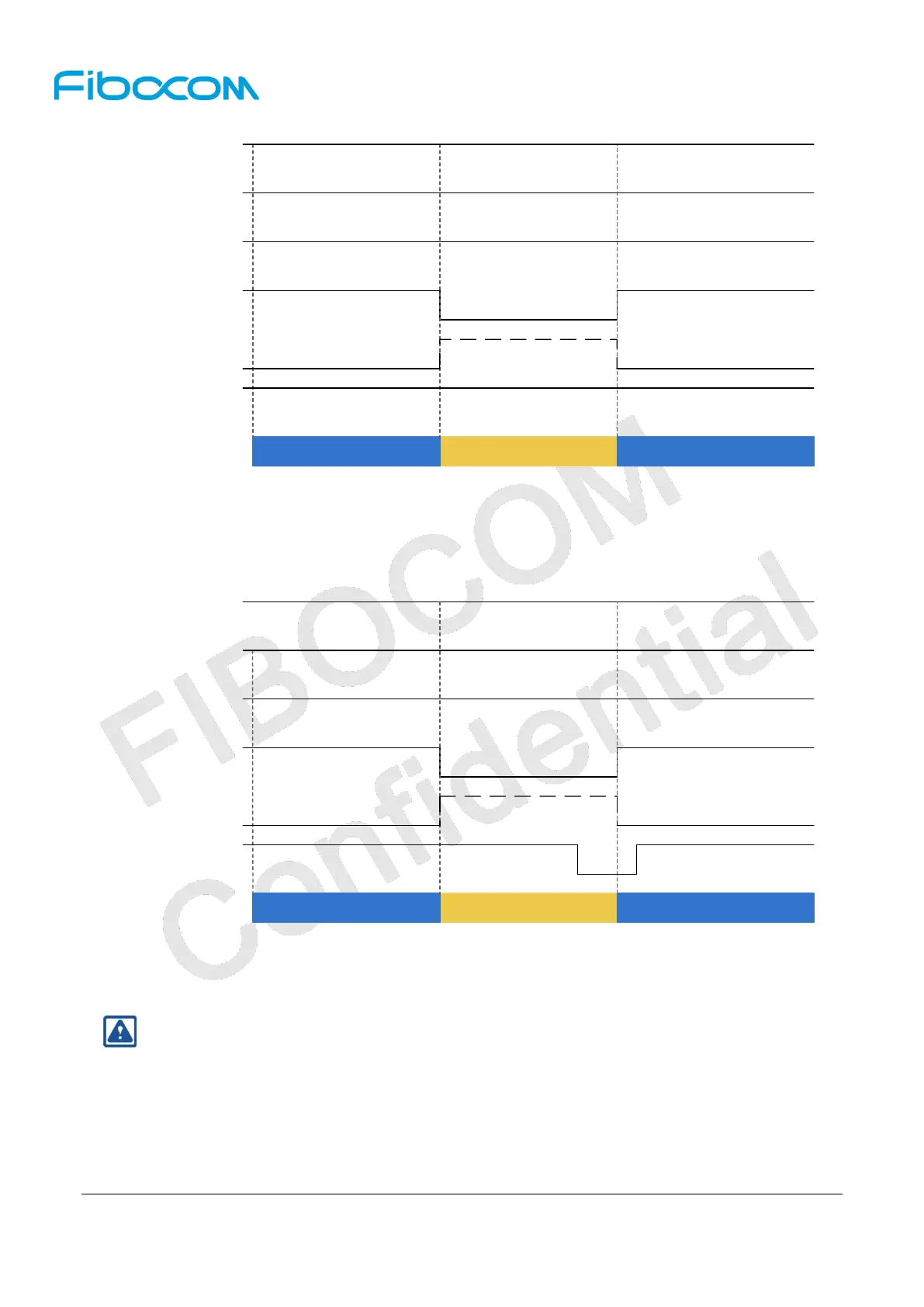

Figure 3-11 D3
cold
L2 timing (Host wakeup)
+3.3V
PERST#
RESET#
Module State
D3
cold
L2@S0/S0ix
D0 L0@S0/S0ix
FCPO#
D0 L0@S0/S0ix
PEWAKE#
Modem assert
Host de-assert
Modem de-assert
Host assert
CLKREQ#
Figure 3-12 D3
cold
L2 timing (Modem wakeup)
Note
When USB is used as data transfer interface in Chrome/Android/Linux OS, there is no PCIe link
state, so dont need to follow timing above.
