Reproduction forbidden without Fibocom Wireless Inc. written authorization - All Rights Reserved.
FIBOCOM L850-GL Series Hardware Guide Page 54 of 59
5 Structure Specification
5.1 Product Appearance

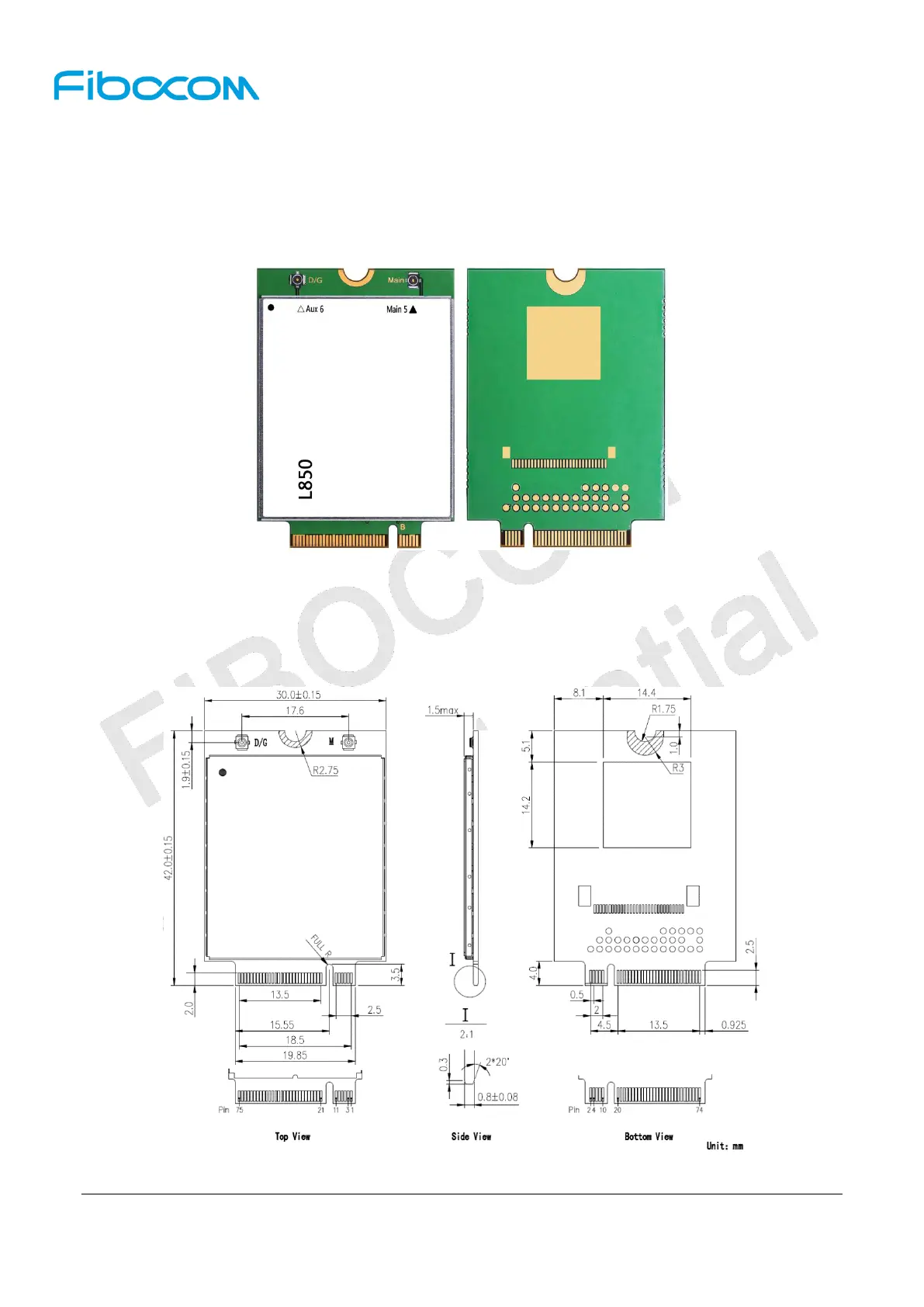

The product appearance for L850 module is shown in Figure5-1:
Figure 5-1 Module appearance
5.2 Dimension of Structure
The structural dimension of the L850 module is shown in Figure 5-2:
Figure 5-2 Dimension of structure

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Fibocom L850-GL Series and is the answer not in the manual?

Fibocom L850-GL Series Specifications

General IconGeneral
CategoryGSM/GPRS Modules
ModelL850-GL
Form FactorM.2
Operating Temperature-10°C to +55°C
Storage Temperature-40°C to +85°C
GSM Bands850/900/1800/1900MHz
GNSSGPS, GLONASS, BeiDou, Galileo
InterfaceUSB 2.0, UART, PCM, I2C, GPIO
Operating Voltage3.135V to 4.4V
LTE FDDB1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B29, B30, B66
LTE TDDB38/B39/B40/B41
WCDMAB1, B2, B4, B5, B8
AT Command Set3GPP TS 27.007
CertificationsCE, FCC, GCF, PTCRB
