FieldBee toolbox manual v.1.0

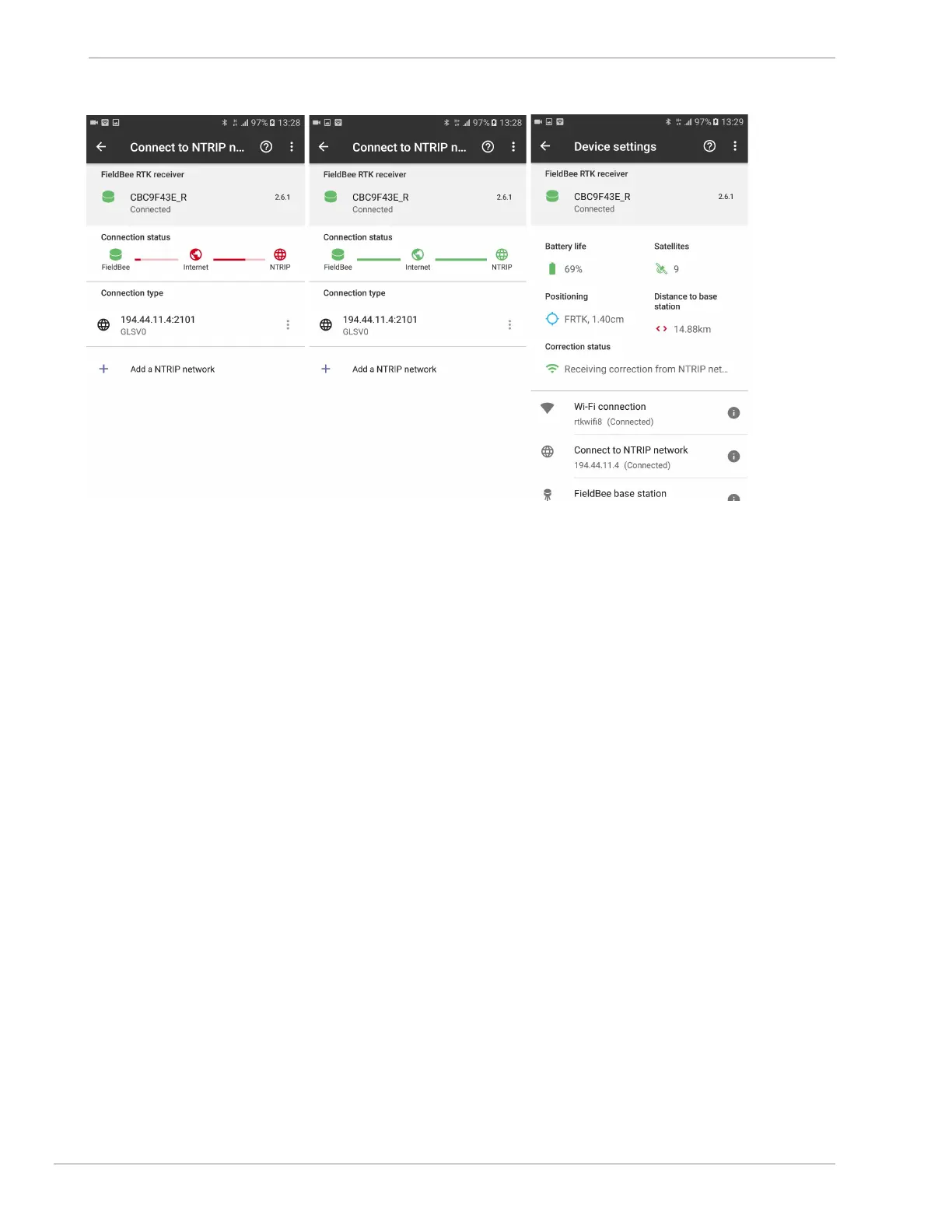

fig.4.7 fig.4.8 fig.4.9
FieldBee RTK GPS system
FieldBee RTK base station+FieldBee GNSS receiver
With the FieldBee RTK-GPS system you will be able to reach an exceptional accuracy of 0-4 cm. No need to pay extra
charges for RTK correction signal, you will receive your own base station that provides correction. You can connect an
unlimited number of antennas to the FieldBee RTK base station. You can share your signal with your neighbours and
create free RTK network.
Base station transmits correction via 2 ways:
1. Radio channel
2. Internet
1. FieldBee RTK base station+FieldBee GNSS receiver connection via Radio channel
The range of RTK signal coverage is 2 km via Radio.
!!!Before turning on RTK Bee Station it is necessary to screw in external radio antenna!!!
There are few required conditions for getting 0-4 cm accuracy from FieldBee RTK base station. FieldBee GNSS
receiver and Base station needs to :
● receive signal from more than 8 satellites;
● have same Radio region and Radio channel;
● have straight view between receiver and base station.
