FieldBee toolbox manual v.1.0

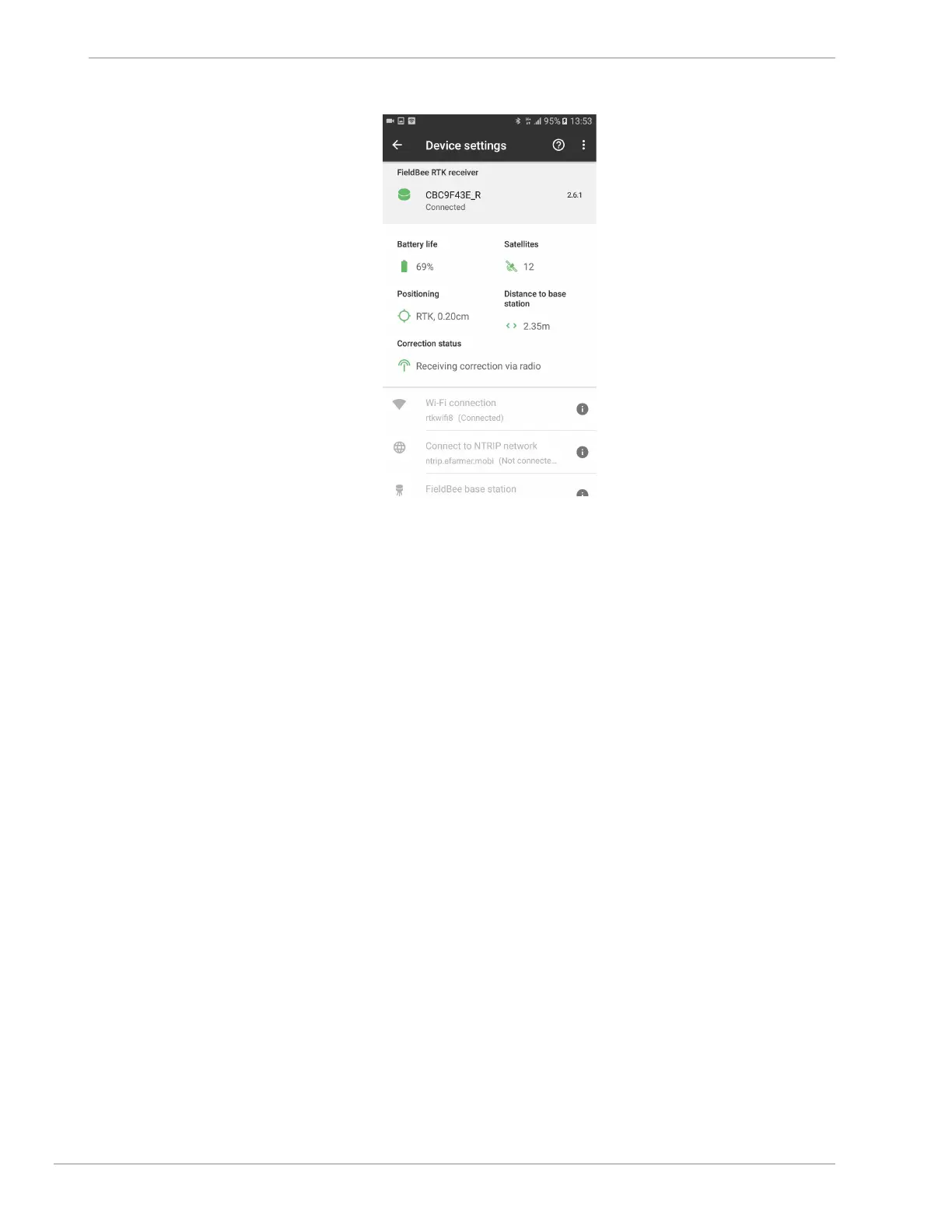

fig.9.7
Status/Summary
Status/Summary displays all current FieldBee receiver statuses:
● power source: external source (charging cable)/ battery
● power level: min level for correct work is 3,7 V. max level is 4.2V.
○ if your receiver has power level less than 3,7V we strongly recommend to charge it.
● SOC: status of charge - display current power level in % in range of 100%.
● Charger Status:
○ Discharging ( when power source is Battery)
○ Charging ( when power source is External)
○ Charged (when Battery level/SOC has maximum value)
● GNSS Status: current Positioning status:
○ INVALID- FieldBee receiver has no satellites signal reception
○ GPS - FieldBee receiver has no correction (1-3m)
○ DGPS -FieldBee receiver has improved location accuracy without correction (30cm -1m)
○ FRTK - FieldBee receiver has received correction ( 5-30cm)
○ RTK- FieldBee receiver has RTK Fix accuracy ( 1-4 cm)
● LoRa RSSI ( Received Signal Strength Indication) indicates how good is received radio signal.
For test 1-10 meters LoRa RSSI values should be around -10…-30 dB. If RSSI is not so high - change radio channel
and check this parameter.
● LoRa SNR (Signal-to-Noise Ratio) is the ratio between the received power signal and the noise floor power
level. Positive values (4...7) are optimal values
● Wi-Fi Status : display current status for Wi-Fi connection
○ Not_Connected - FieldBee receiver is not connected to any Wi-Fi network
