EN 12
Planning
FZRR 5650-A, FZRR 5950-A

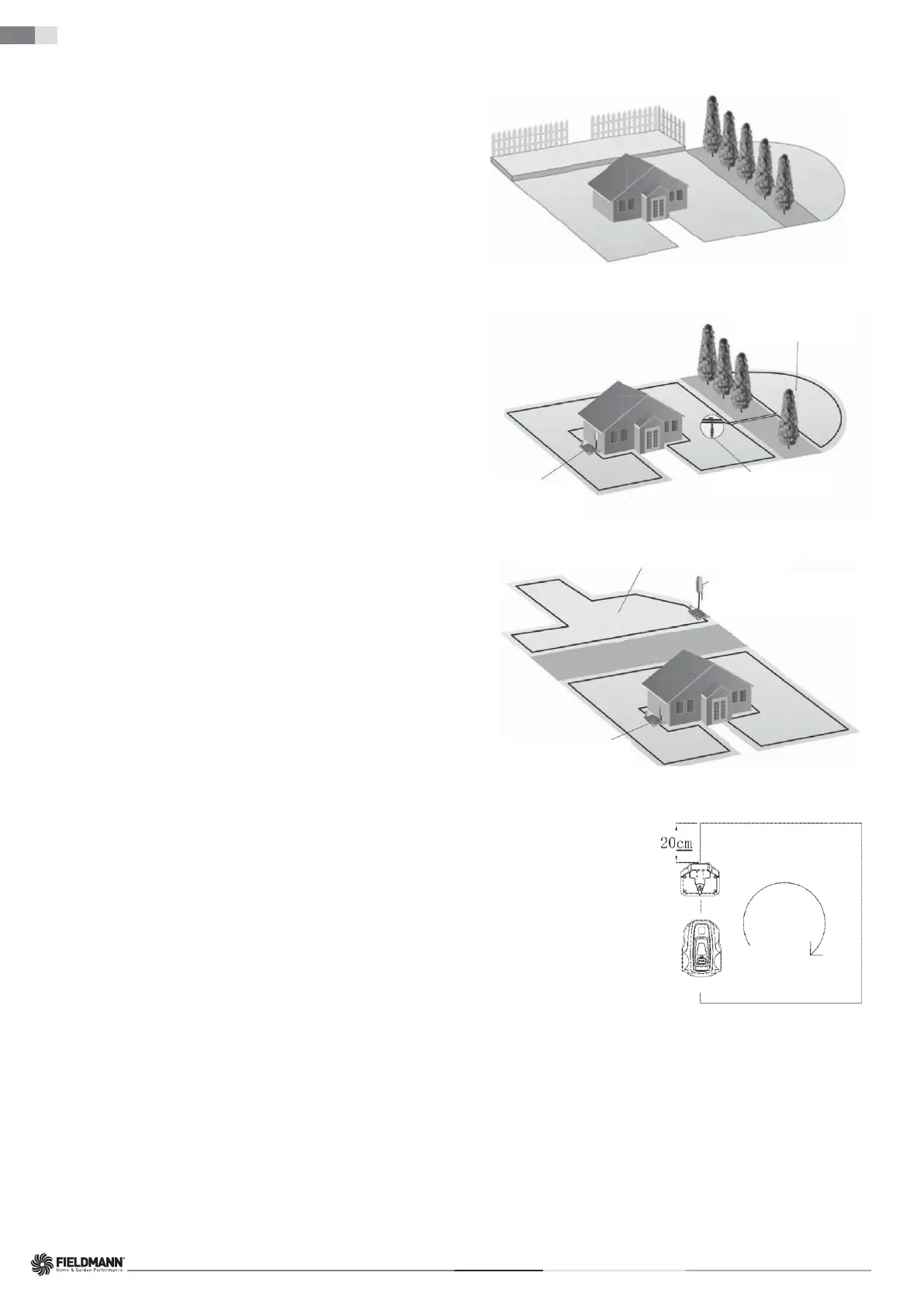

LAWN TYPE WITH SEPARATE ZONES
This lawn type consists of two or more zones that are not interconnected.
The robotic lawn mower cannot move automatically between these zones if:
1. Parts of the lawn are separated by fences, pavement or other objects that the
robotic lawn mower cannot cross.
2. Parts of the lawn are separated by gravel or similar material that can damage
the cutting blades.
3. The lawn zones are connected by passages too narrow for the lawn mower to
navigate: width less than 40 cm.
4. The lawn zones are located at lower or higher levels.
Separate zone
Main zone
Main zone
Separate zone
Separate zone that can be mowed at one go
If possible, the wire for the separated zone can be connected to the perimeter wire
of the main zone.
Separate zone smaller than
200 m
2
2 wires under the same
stake
Charging base
Separate zone that cannot be mowed at one go
1. This large separate zone requires a separate mower operation.
2. An additional charging base and power adapter (optional accessories) should
be installed in this area.
Separate zone larger than 200 m
2
Additional electrical socket and
charging base
Main electrical socket and
charging base
CHOOSING THE LOCATION FOR THE CHARGING BASE
The charging base should be places at the perimeter wire.
This is where the loop of the perimeter wire begins and ends. Please observe the following guidelines when choosing the
best location:
1. Place the charging base at least 20 cm from the corner of the perimeter wire.
2. A straight line of more than 100 cm must be in front of the base for the mower to enter correctly.
3. The charging base should be placed close enough to an electrical socket.
4. If the lawn has multiple zones, install the charging base in the largest zone.
5. Preferably, choose a shaded location for the charging base. This extends the lifespan of the battery.
6. Place the charging base on a relatively fl at surface. Do not place it on a slope.
7. Do not place the charging base in a depressed position where it might accumulate water, potentially causing damage
to the base or the lawn mower.
8. Place the charging base well away from the sprinkler heads.
9. Do not place the charging base in a location with magnetic interference.
100 cm
