EN 8
Introduction
FZRR 5650-A, FZRR 5950-A
2. INTRODUCTION
This section provides important information to be considered during the installation planning.
The robotic lawn mower system comprises four main components:
• Robotic lawn mower: It mows lawn in an essentially random pattern. The robotic lawn mower is powered by a maintenance-free battery.
• Charging base: The lawn mower returns to this base when its battery level is too low.
The charging base has 2 functions:
• It sends control signals to the perimeter wire so that the robotic lawn mower detects its working area or fi nds the charging base.
• It charges the battery of the robotic lawn mower.
• Power adapter for the base: Plugged into a 100–240 V electrical socket, connected via a 6 m long low-voltage output cable.
The low-voltage output cable must not be shortened or lengthened.
Perimeter wire for defi ning the mowed area. The length of the included cable varies by model.
(FZRR 5650-A:150M; FZRR 5950-A:200M).
The maximum permissible length of the perimeter wire is 300 m.

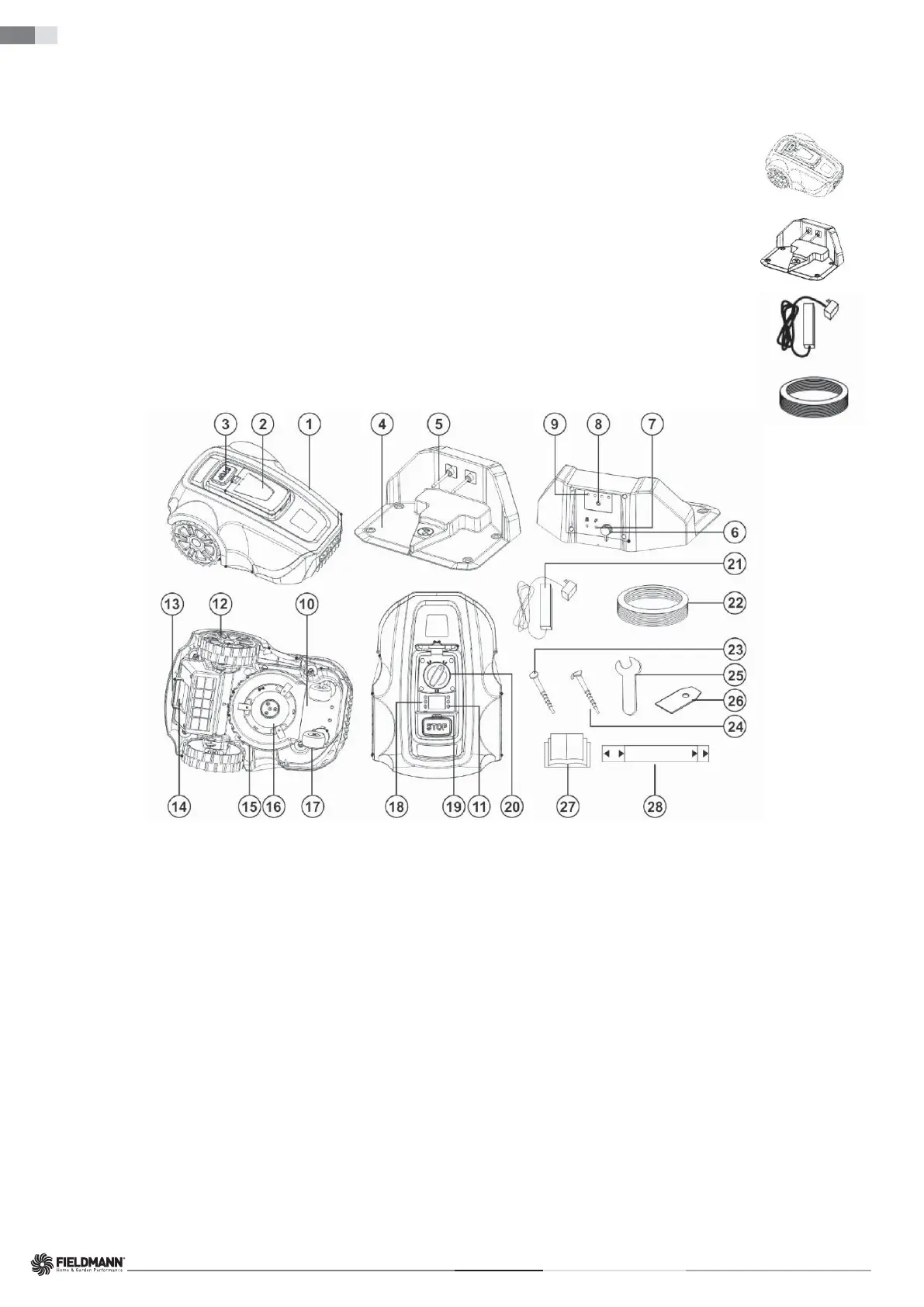

LIST OF PARTS
The numbers in the fi gure indicate the following parts:
1. Lawn mower body
2. Control panel cover
3. STOP button
4. Charging base
5. Charging contacts
6. Base electrical socket
7. Connectors for the perimeter wire
8. Two-colour LED indicator
9. Charging base label
10. Chassis box containing electronics, battery and motors
11. Power switch
12. Rear wheel
13. Transport handle
14. Battery cover
15. Blade disc guard
16. Blade disc
17. Front wheel
18. Control panel
19. Rain sensor
20. Cutting height adjustment control
21. Power adapter
22. Perimeter wire
23. Charging base anchor stake
24. Perimeter wire anchor stakes
25. Spanner
26. Spare blade
27. User Manual
28. Wire laying gauge (provided separately, outside the box)
