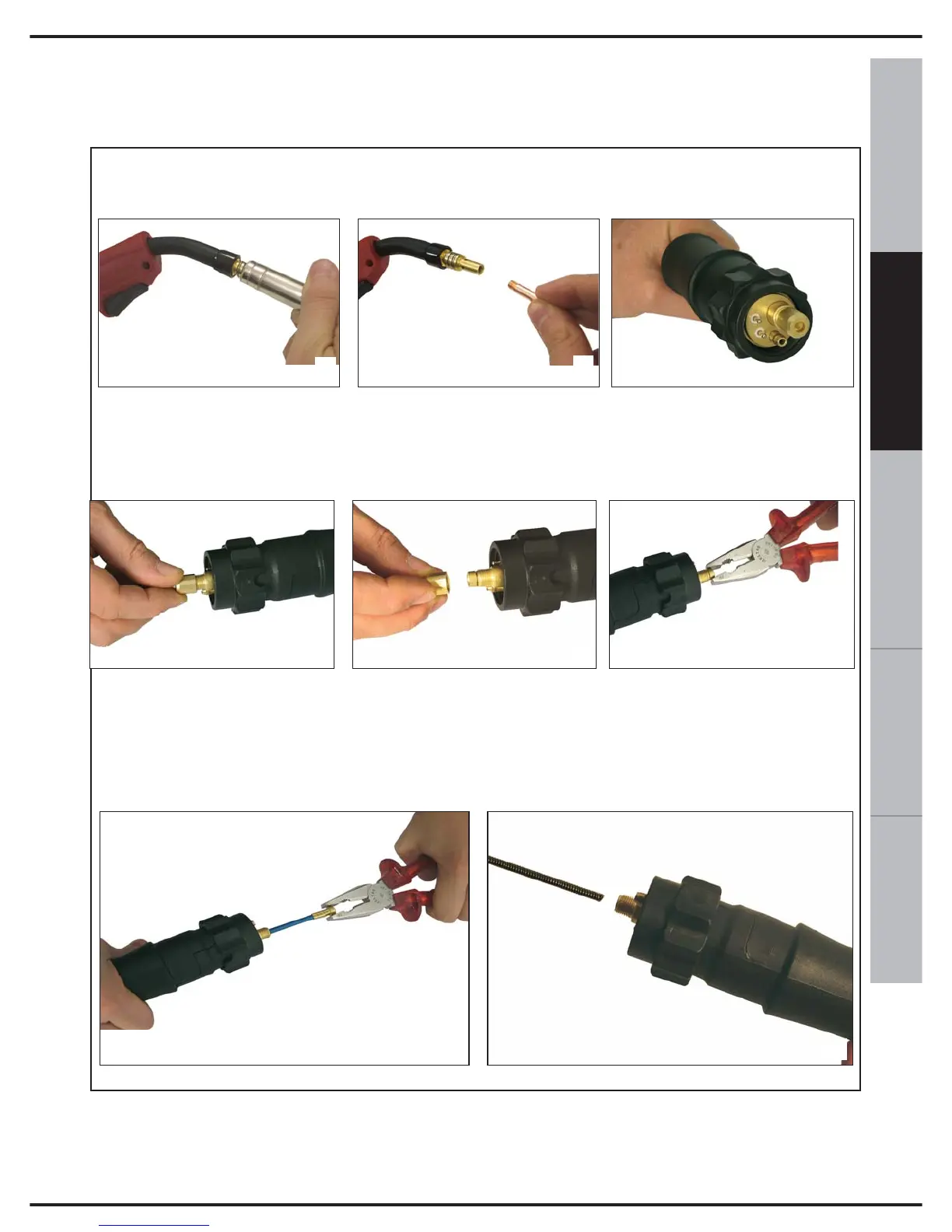

When replacing the wire guide sheath follow these instructions carefully:
• Torch side: remove the gas pipe (A).
• Unscrew the wire feed tip (B)
• Connector side (C): turn the terminal nut (D, E) and hold the end of the sheath with a pair
of pliers and pull (F).
• Fully extract the sheath (G).
A
B
C
D
E
F
• Insert the new sheath and push it all the way down to the bottom (H).
• Fasten the wire feeder tip (B) to the torch.
• When replacement has been carried out, reattach the gas nozzle.
G
H
20. REPLACING THE WIREGUIDE SHEATH OF THE TORCH
When carrying out this operation make sure you do not lose the O-RING (rubber
gasket that prevents any eventual gas leaks.
