6 Detailed operation instructions
 Imperatively regard the “General Safety Notes“ within this documentation.
6.1 Moving of columns
CAUTION
Hazard of tipping over
• Only travel the column unloaded and on even ground.
• Wereby the lifting carriage may not be lifted.

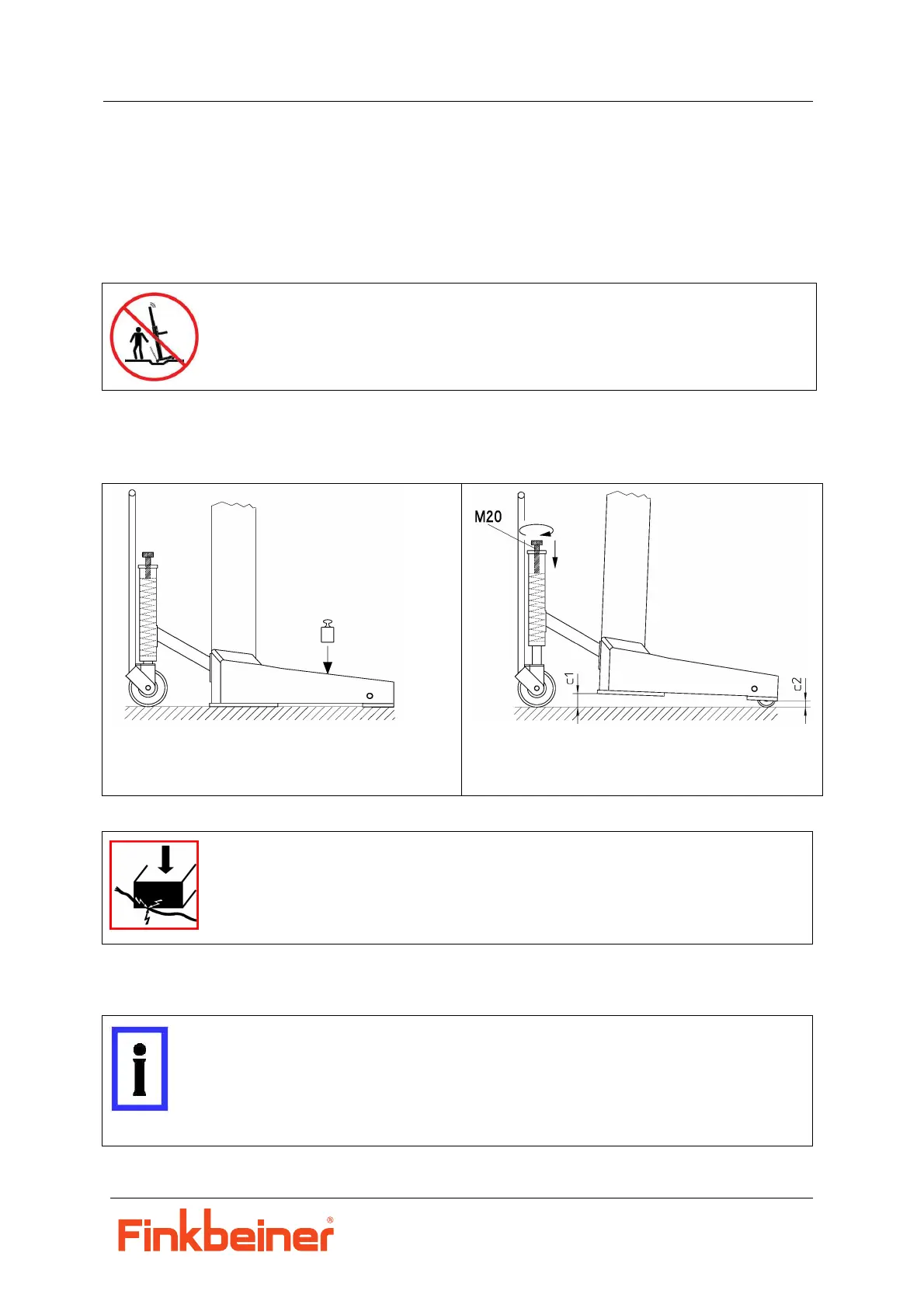

6.1.1 Wheel jack, spring-loaded (standard)
Column lowered
Column lifted
Max. ground clearance:
C1 = 27 mm
C2 = 25 mm
CAUTION
Hazard of damage of connection cables
Before lowering make sure that no cables are underneath the column.
 Turn the hexagon screw (SW30) clockwise as long as the column gets ground clearance and can
be moved.
Information
• With the hexagon screw (SW30) ground clearance can be adjusted.
• Wheel jack is self-lowering under load.
• Under load the column must lower completely to the ground.
• Adjust ground clearance as small as possible.
