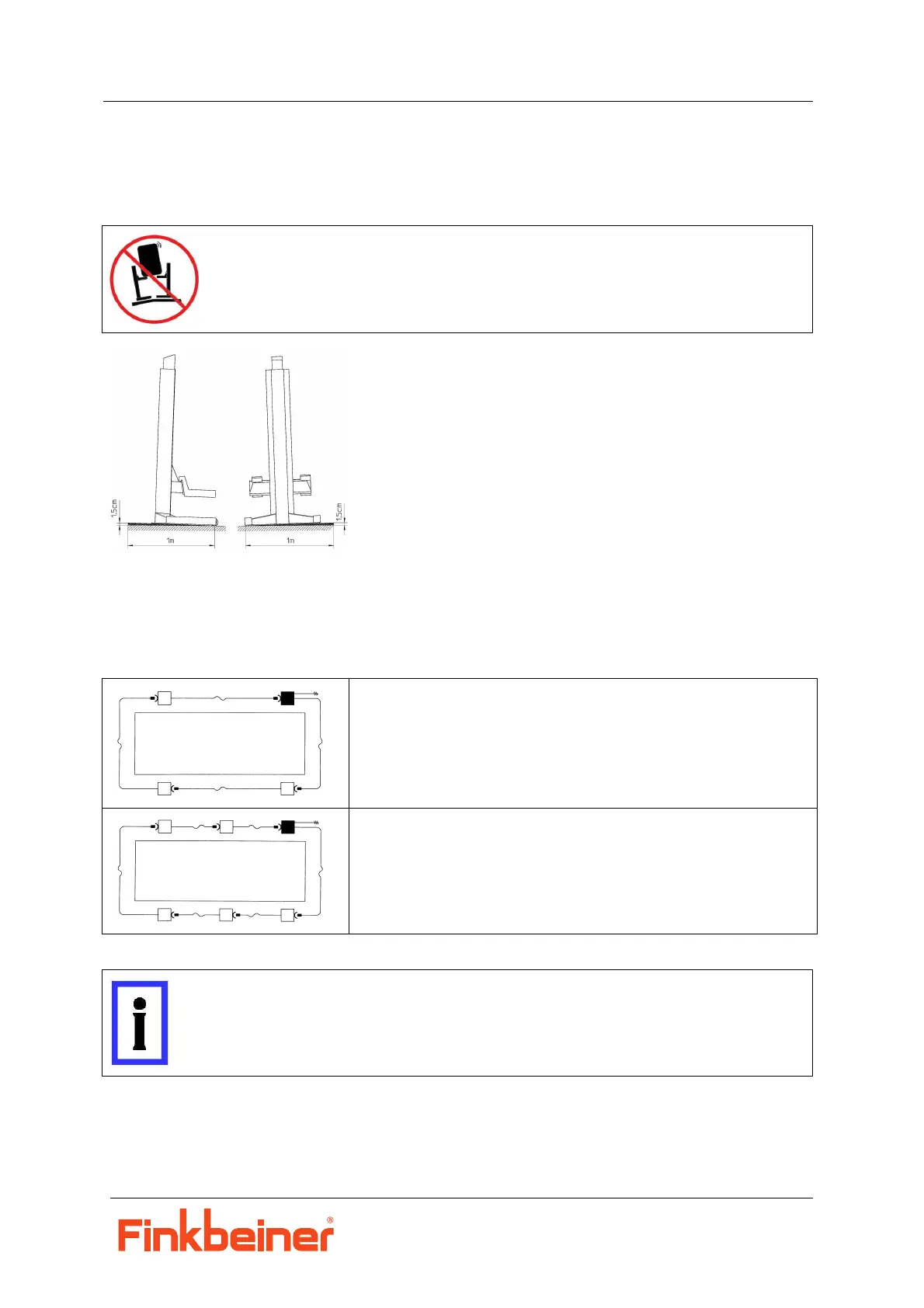

6.2 Installation
• Position columns on a level and sufficiently stable floor; quality of concrete at least B25.
DANGER
The positioning of the lift on inadmissibly tilting floors can cause the vehicle to fall.
• Always position the columns vertically.
• The maximum admissible floor tilt is 1°.
 Position the columns at the vehicle (always 2 columns per axle).
Example: lift with 4 columns
• The master (black) can be located at every position.
Example: lift with 6 columns
• The master (black) can be located at every position.
Information
• One master column is suitable to be operated with up to 5 slave columns
(at 400 V / 3 Ph / 50 Hz).
