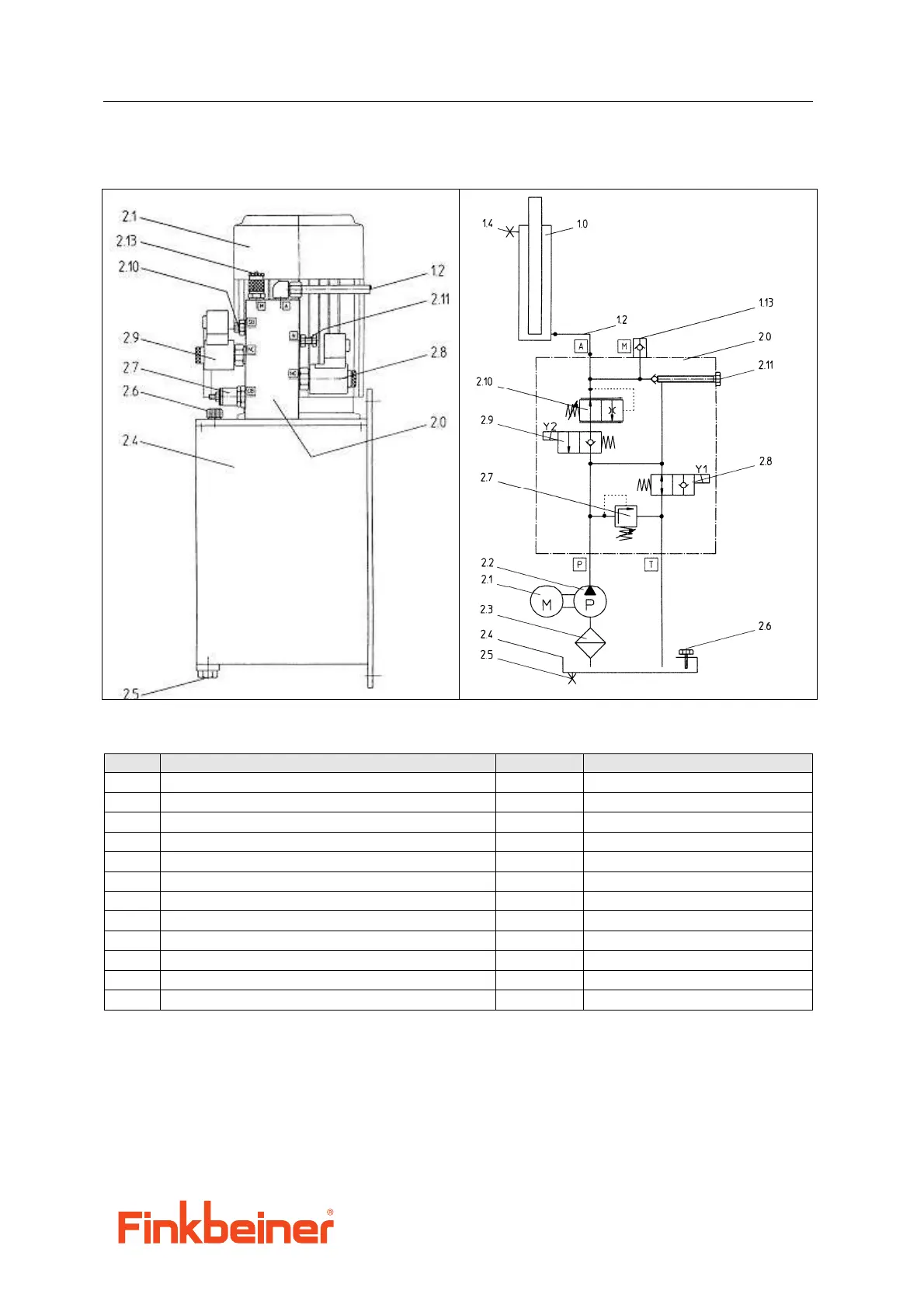

10.2 Overview hydraulics with spare parts list
Pos. Description Quantity Article number
1.0 Hydraulic cylinder without pipe 1 7020400003
1.2 Hhydraulic pipe 1 H-RO706.5-1
1.4 Bleeding screw 1
2.0 Valve block 1 7060803206
2.1 Electric motor 0,75kW 1 M07403B14164
2.2 Gear pump 1,7ccm 1 ZAPU1,7
2.3 filter 1 WT1089
2.4 Oil tank steel 1 7060803016-RAL7015
2.7 Pressure relief valve 1 VENDB DBT1
2.8 Valve lifting 1 VEN2/2S024NO
2.9 Valve lowering 1 VEN2/2S024NC
2.10 Current regulating valve 1 69007829-03
