Information
• If drawbar stands upright the integrated brake is active securing the column
against unintended rolling.
To move the column, swing drawbar to the rear.
After moving the column put drawbar upright again.

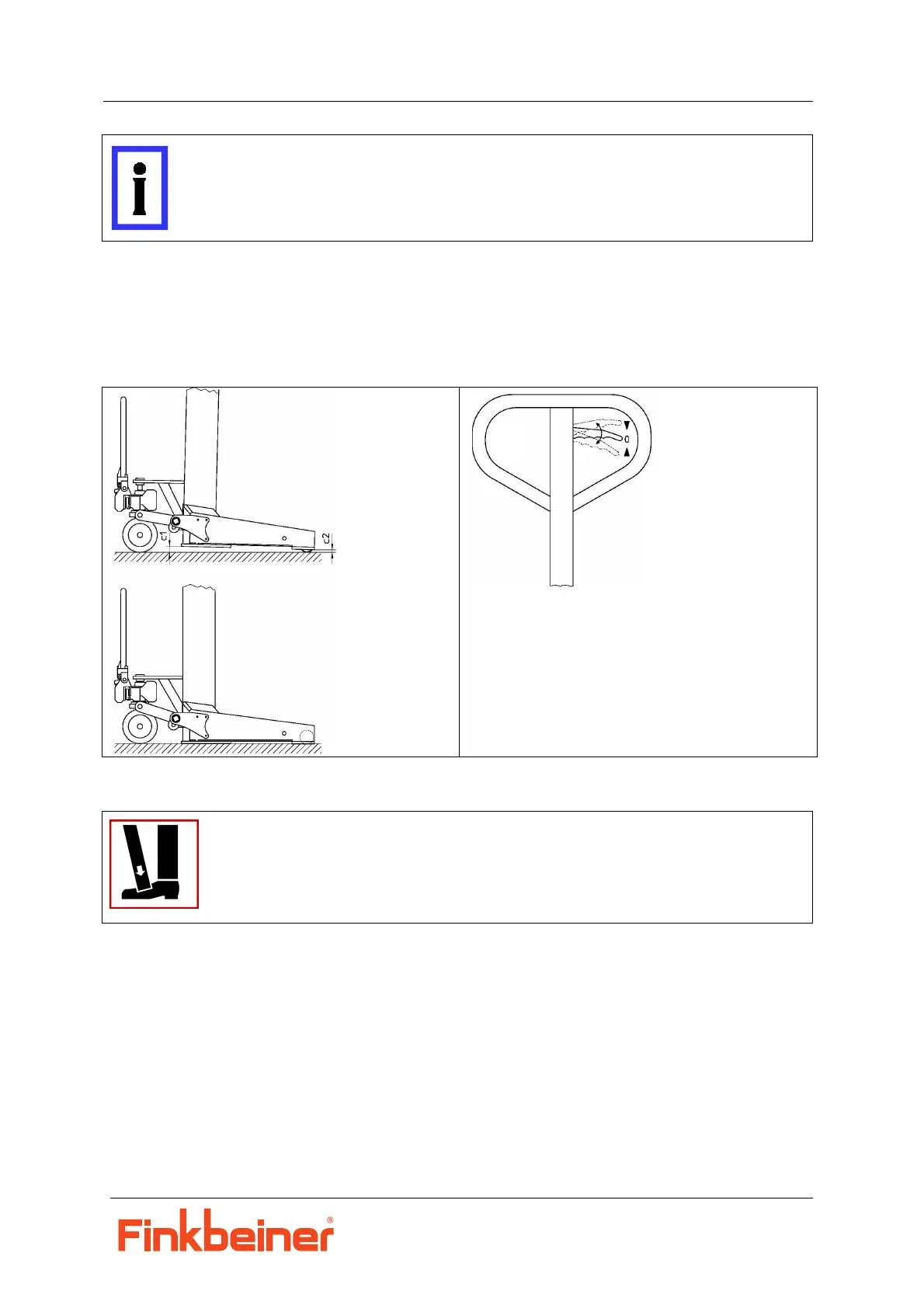

6.1.2 Hydraulic travelling device (option)
Position of operating lever:
Top: Lowering
Central: Drive position
Bottom: Lifting
Maximum ground clearance:
C1 = 90 mm
C2 = 25 mm
Lift up column by operating lever of hydraulic travelling device until the column is freely moveable.
CAUTION
Crushing hazard when lowering the travelling device.
• Do not crush feet underneath base frame when lowering.
Lower the travelling device completely to ground after movement of column.
