BESCHREIBUNG DER MASCHINE
02
-
CBT.A
-
TOUCH
-
01
-
IT
13

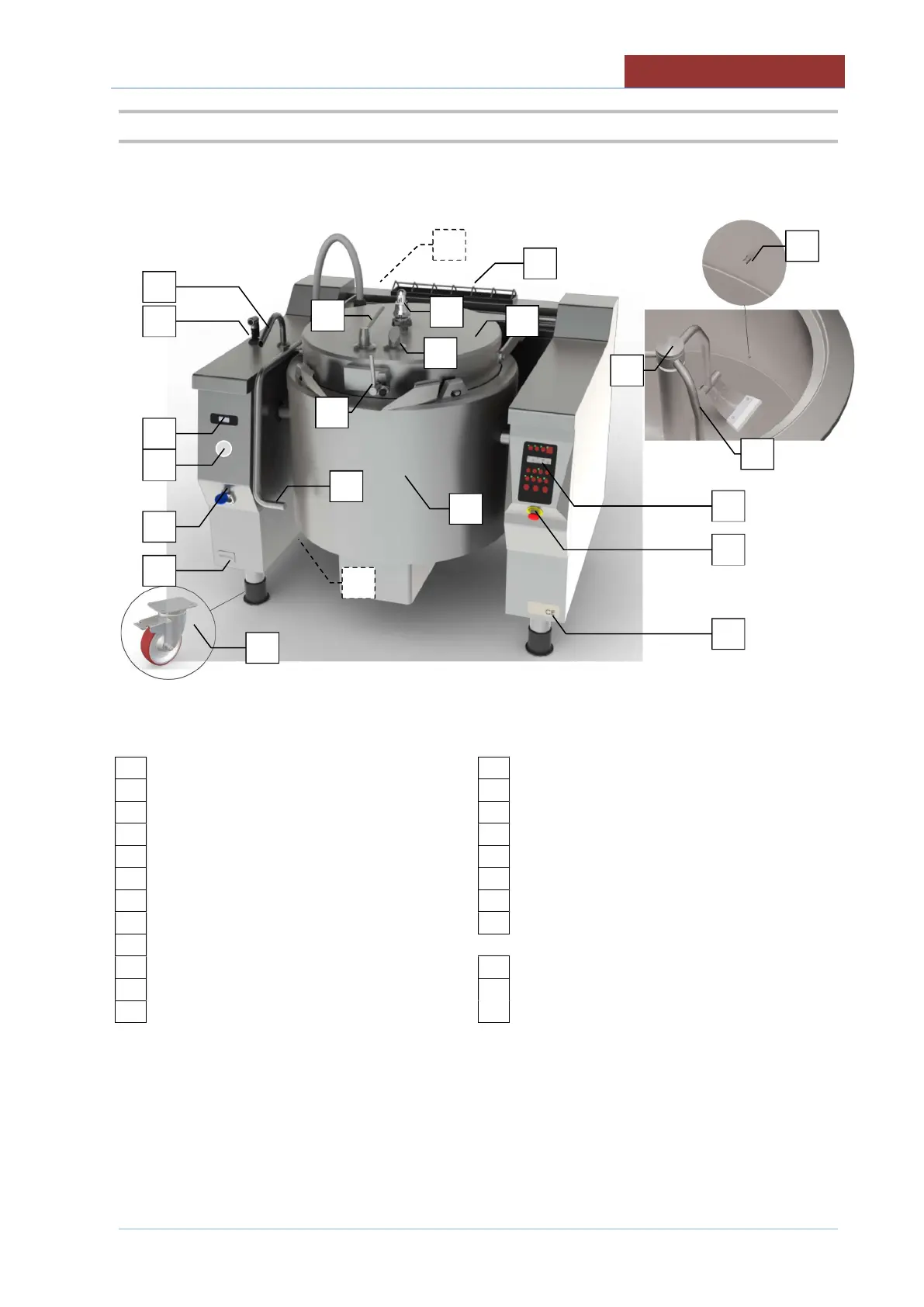

3.3 FUNKTIONSKOMPONENTEN
01
Technisches Typenschild
13
Sicherheitsventil
02
Typenschild Seriennr.
14
Kondensatablauf
03
Notaus
-
Schalter
15
Fühler in Behälter
04
Tastatur Steuerung
16
Mischer
05
Garbehälter
17
Sicherungsringmutter Mischer
06
Füllhahn
18
Rauchabzugsschacht (Mod.CBTG)
07
Abdeckung
19
Dampfdruckmesser (Mod.CBTV)
08
Deckelgriff
20
Dampfsicherheitsventil (Mod.CBTV)
09
Hebel Abdeckung schließen
OPTIONAL
10
Hebel zum Arretieren der Abdeckung
21
Stromanschluss
11
Druckwächter
22
Handbrause
12
Dampfabzugsrohr
23
Rollen
17
16
22
06
11
05
07
08
23
02
21
15
01
04
03
09
10
13
12
14
18
19
20
