MANUAL for the basic control panel | CCB2.0
21

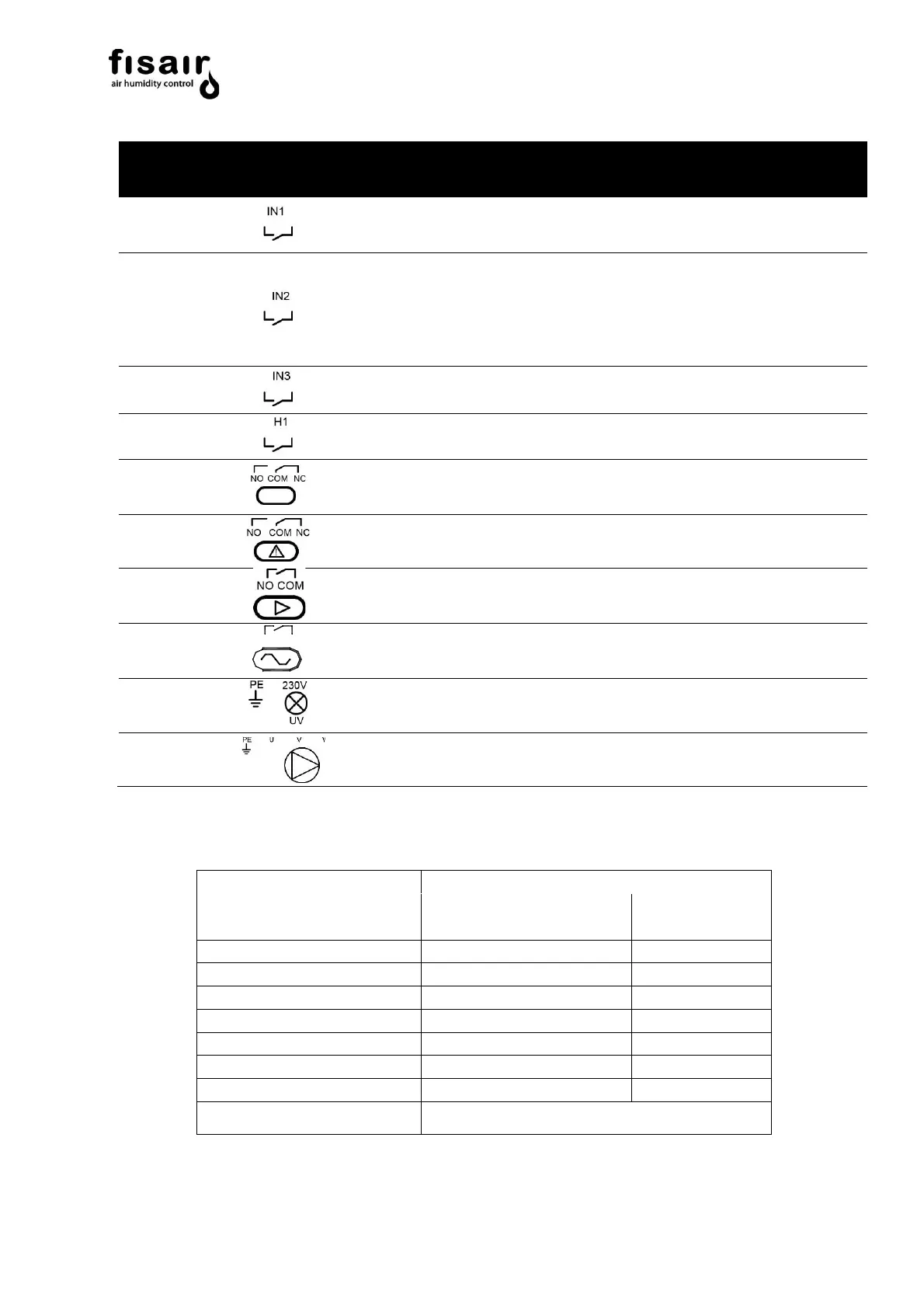

Type of
connection
Symbol
Connection
Description
Max. Power
Max. Voltage
Optional.
J18**
UV lamp operating sensor (if
applicable)
Not powered
Optional.
J19**
Forced drainage remote signal:
The rest of the signals are ignored,
until the forces drainage signal
ends, at that moment, it returns to
the previous state.
Not powered
Optional.
J20**
External fault lock
Not powered
Optional.
J21**
Remote interlock ON/OFF in
automatic mode.
Not powered
-
J22
Not used.
500VA
250V
Optional.
J23
Remote fault signal.
500VA
250V
Optional.
J24
Remote operation signal.
500VA
250V
Optional.
J25
Remote voltage signal
500VA
250V
Optional.
J10
UV lamp supply
40W
230V
Mandatory
J11
Water recirculation pump
240W to 400 V
370W to 230 V
* Connection of drain/emptying valve actuators:
** See next page
NO COM
SEF-028.1 connection
Actuator
Actuator wire number
(code)
Actuator wire
colour
J12 + (red)
2
Red
J12 – (black)
1
Black
J14+ (red)
3
White
J14-(black)
-
J14 ground (yellow)
-
-
J15 a (grey)
S1
Violet
J15 b (grey)
S2
Red
Turning sense
-
