3. Operating environment
The Basic Control panel is supplied in an insulating box composed of a bottom and a hinged lid
made of steel with a surface finish of RAL7035 grey weather-resistant epoxy-polyester powder with
IP54 degree of protection according to IEC-60529 and IK10 impact protection according to
IEC62262.
Operating environment temperature and humidity conditions:
• Relative humidity [5%... 95% HR], no condensation.
• Temperature [-10 °C ... +40°C]
The recommended gaps for connection, inspection and maintenance must be observed during
installation. If the box is drilled in the locations indicated for mounting, it must be ensured that a
degree of protection ≥ IP54 is maintained.
The basic control panel weighs 6 kg and must be installed vertically on the wall (see Figure 1) to

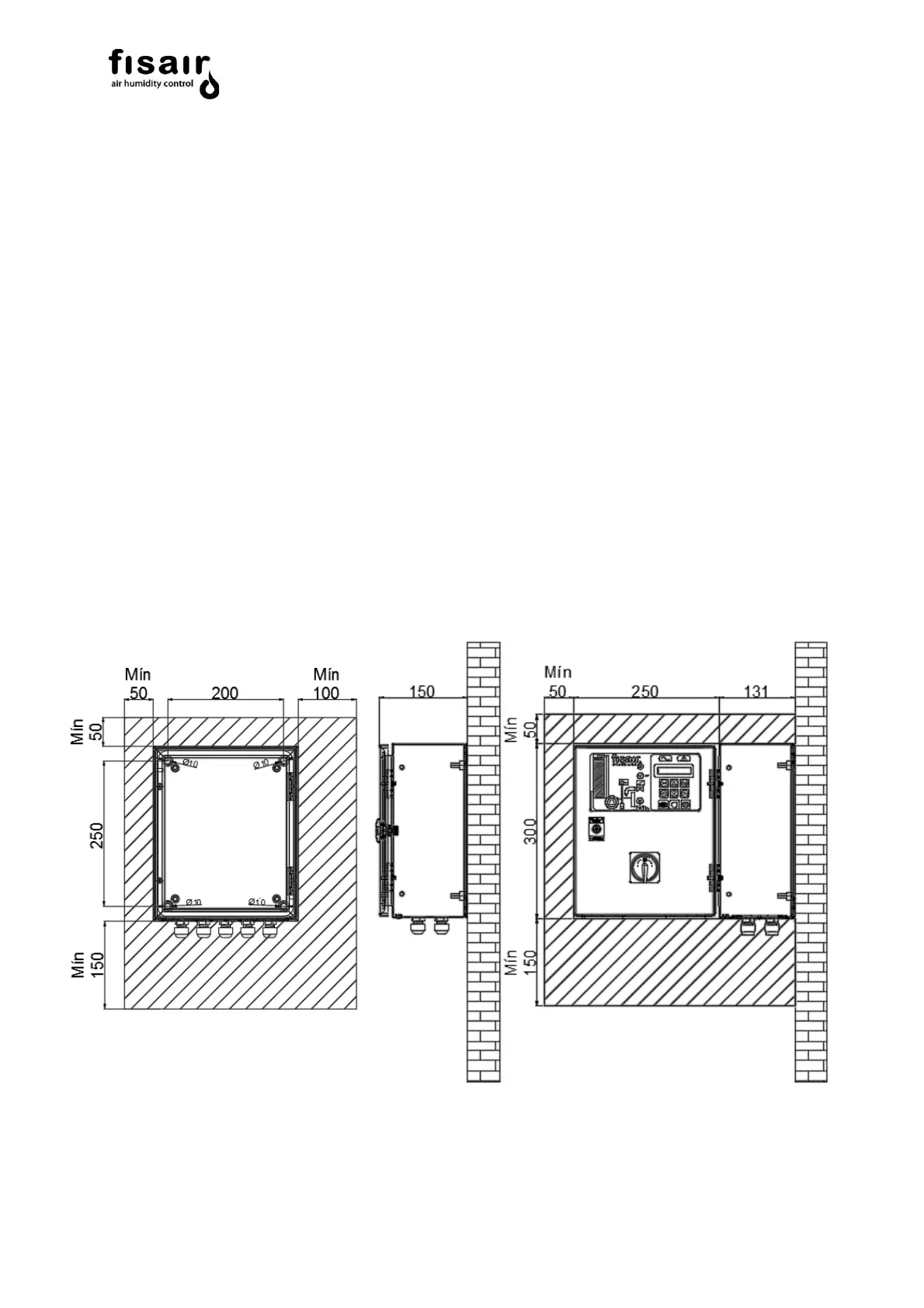

maintain the degree of protection IP54. Figures 2.1 and 2.2 show the minimum service spaces to be
observed and the drill hole measurements for mounting.
Figure 2.1: Vertical section: front, open door. Figure 2.2: Cross section: door closed/open
(Interior)
