9. Settings
The desired values for the different parameters to be adjusted are configured in this section. The
conductivity set-point and the different Timers are configured. Each parameter has a range of values
it can be set to.

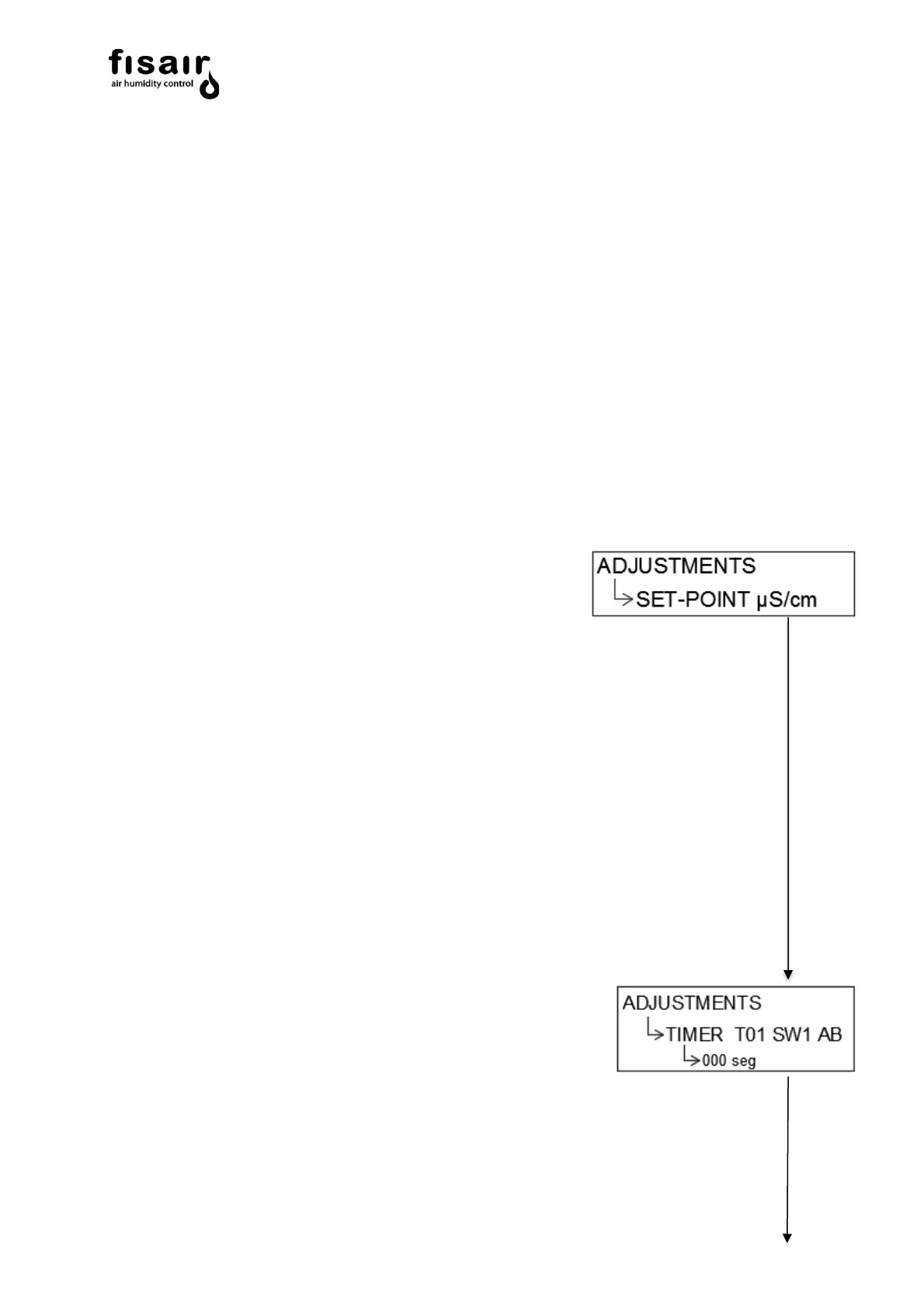

The different parameters to be adjusted are shown on the Display screen (integrated in the command
and display interface).
You can move from one screen to another using the vertical arrows. Use the right arrow to advance
to the next level within a screen, and the left arrow to go back a level.
9.1. SET-POINT µS/cm (if applicable)
Enter the conductivity set-point. If this conductivity value is
exceeded, the motorised drain valve is activated and the water
is renewed to the desired conductivity (lower than the Set
point).
It must be remembered that the TIMER T07 regulates the time for the
set-point value to be exceeded before opening the drain valve,
while TIMER T02 established the time between partial emptyings.
The range varies from 0-1999 µS/cm.
9.2. TIMER T01 (ex SW1 AB)
Enter the recirculation pump delay time after the minimum water
level is detected. This is not too short to cause the phenomenon
of spiking but not too long for the minimum water level to shut
down the pump.
The Timer range is from 30 s to 1000 s.
The factory set value is 90 s.
