Installation instructions
Unpacking
To ensure the best performance from your new CleanSmart™ clothes washer please follow the
instructions below.
Removing the packaging
1
Remove the outer packaging.
2
Tilt the machine backwards and walk it off the base packer
one foot at a time (ensure the lid is still taped down).
3
Remove the base packer from under the machine
bypulling it out the front.
4
Remove the tape, lift the lid and remove the bowl packer
from the bowl.
5
Remove the hoses and accessories.
6
Keep the base packer and bowl packer in case they are
required for future transit.
Important!
Ensure that the bottom packer has been removed BEFORE OPERATING your machine.
Location
Your washer must be installed on a level surface, not on any textured floor coverings (egcarpet,
rugs) to ensure the opening at the bottom of the machine is not obstructed.
In your clothes washer you will find:
1 hose guide.
2 inlet hoses.
4 rubber foot inserts (if not already inserted into the feet).
Drain hose
1
Carefully pull the drain hose out from the back of
the machine by pulling the exposed part of the
hose downwards and outwards.
2
To guide the drain hose over the tub or standpipe
the hose guide MUST be fitted to the drain hose.
Important!
To prevent siphoning the drain hose should not
extend more than 20 mm from the end of the
guide. The height of the standpipe or tub should
be between 850 – 2400 mm. The drain hose can be
trimmed to length.
3
Place the drain hose in the tub or standpipe.
Do not fit the hose to a drain spigot. Drainage must
not be airtight in order to prevent siphoning.

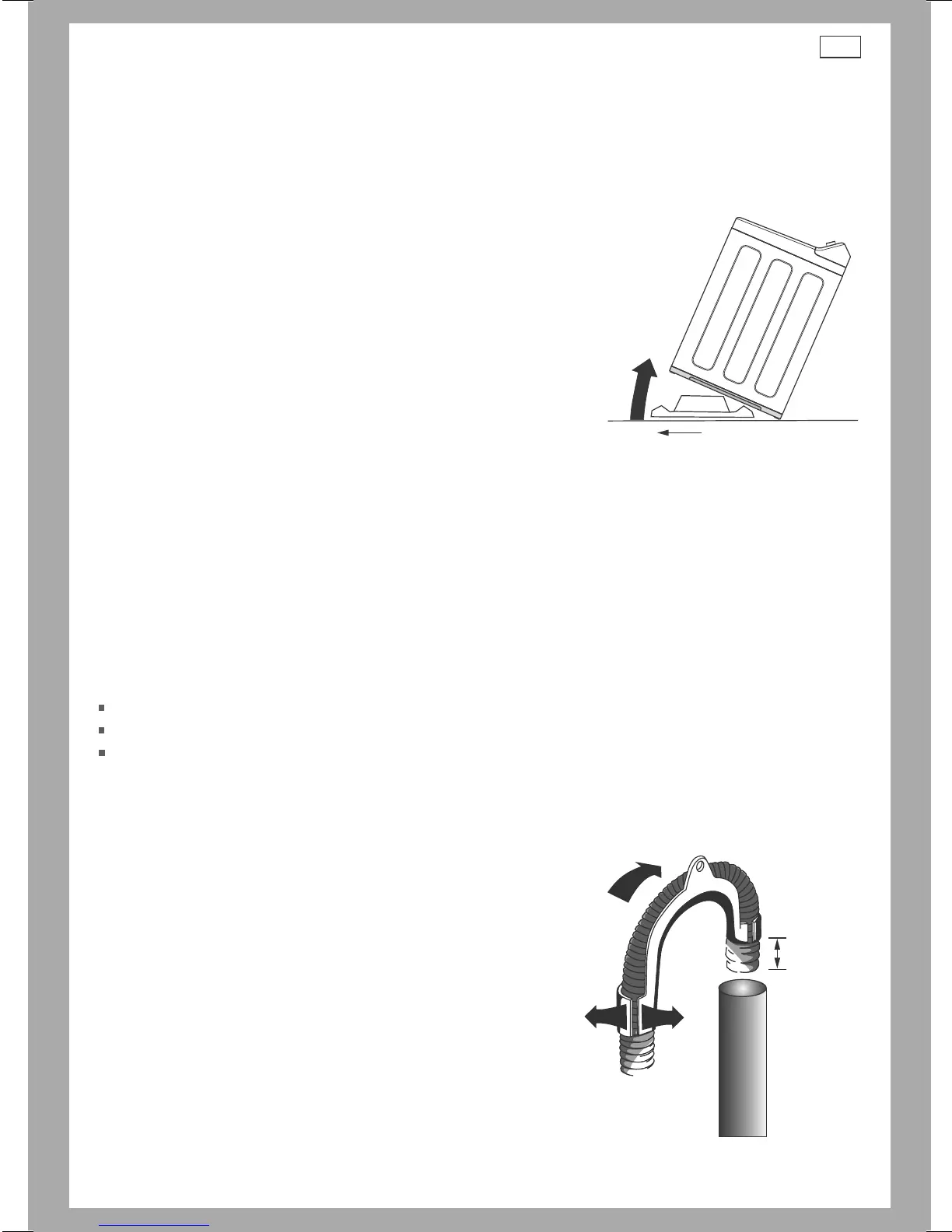

Fig.1 Tilt washer backwards to remove packer
Pull hose
through
guide
Flex hose
guide apart
Standpipe 850 – 2400 mm
(20 mm)
maximum
Fig.2 Fitting the drain hose guide
