ET Valve
Instruction Manual
Form 5081
June 2002
24

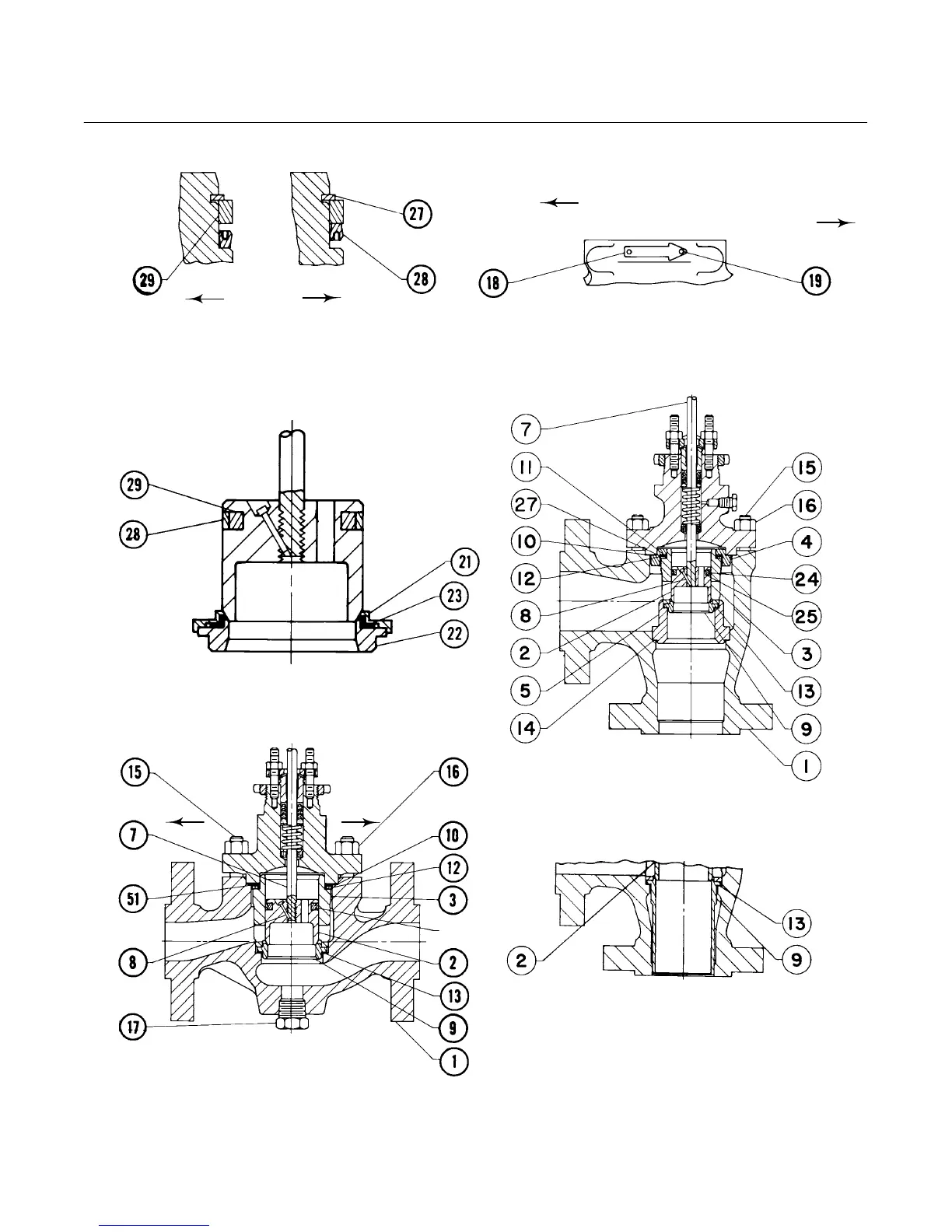

Figure 16. 1- Through 6-Inch Design ET and EAT Valves
CORRECT ORIENTATION OF PLUG
WITH SPRINGĆLOADED SEAL RING
VIEW A
FLOW UP
VIEW A
FLOW DOWN
FLOW DIRECTION
WHISPER TRIM CAGE
LINEAR, QUICK OPENING, EQUAL PERCENTAGE OR CAVITROL CAGES
DETAIL OF PTFE SEAT AND
TWOĆPIECE SEAL RING
FULLĆCAPACITY METALĆSEAT DESIGN ET
DETAIL OF LINERĆSTYLE DESIGN
EAT (METAL SEAT ONLY)
SEATĆRINGĆSTYLE METAL DESIGN EAT
44A7928-C/DOC
53A8595-B/DOC
FLOW
UP
FLOW
DOWN
