Fisher ET - Details of Cavitrol III and 8-Inch Design ET Valves

ET Valve
Instruction Manual
Form 5081
June 2002
28

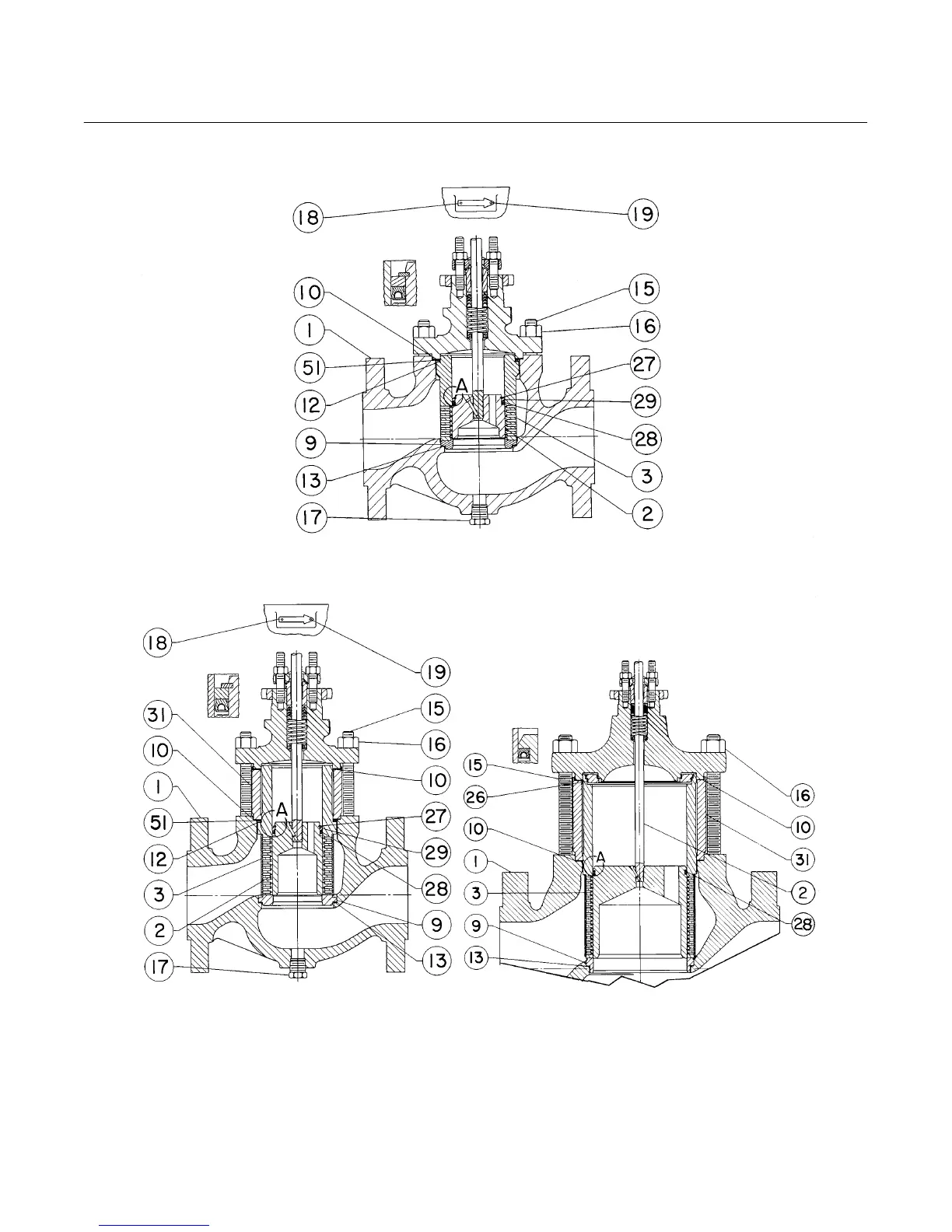

Figure 20. Details of Cavitrol III and 8-Inch Design ET Valves
FLOW DIRECTION
VIEW A
54A8144-B/DOC
1ĆSTAGE CAVITROL III CONSTRUCTIONS THRU 6 INCHES SHOWING CORRECT
ORIENTATION OF PLUG WITH SPRINGĆLOADED SEAL RING
PLUG AND SEAL RING WITH SPRING LOADING SHOWN IN CORRECT
ORIENTATION FOR 2ĆSTAGE CAVITROL III CAGE
54A7268-B/DOC
54A8132-A/DOC
VIEW A
VIEW A
1 THROUGH 6ĆINCH VALVE SIZE
8ĆINCH VALVE SIZE
