ET Valve
Instruction Manual
Form 5081
June 2002
29

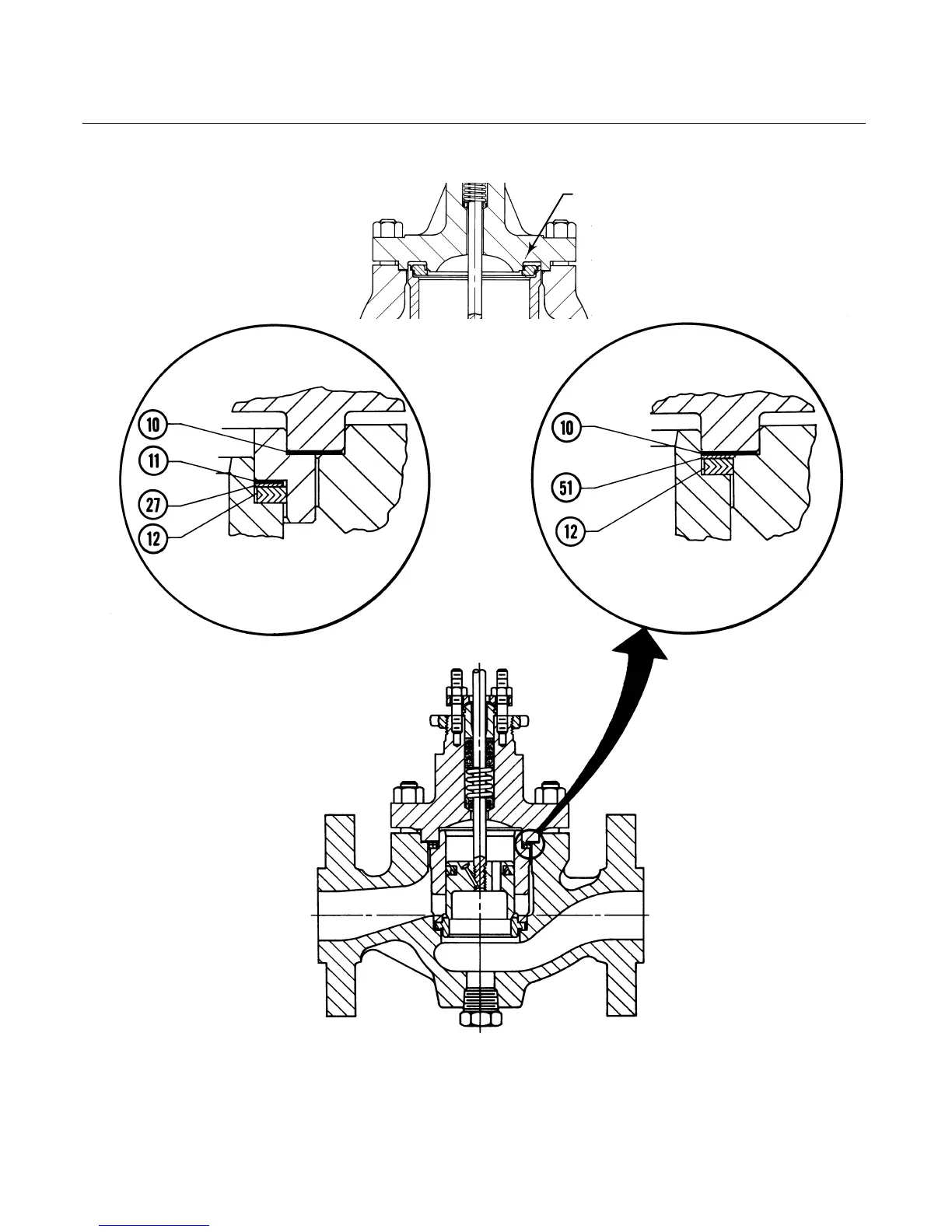

RESTRICTEDĆTRIM DETAIL
16A1943-A / DOC
30A9542-F / DOC
Figure 21. Gasket Set Detail
FULLĆCAPACITYĆTRIM DETAIL
LOAD RING
STANDARD 8ĆINCH
CONSTRUCTION
40A3290 / DOC
