Flavel Linear HE - Page 12

For all models proceed as follows :-

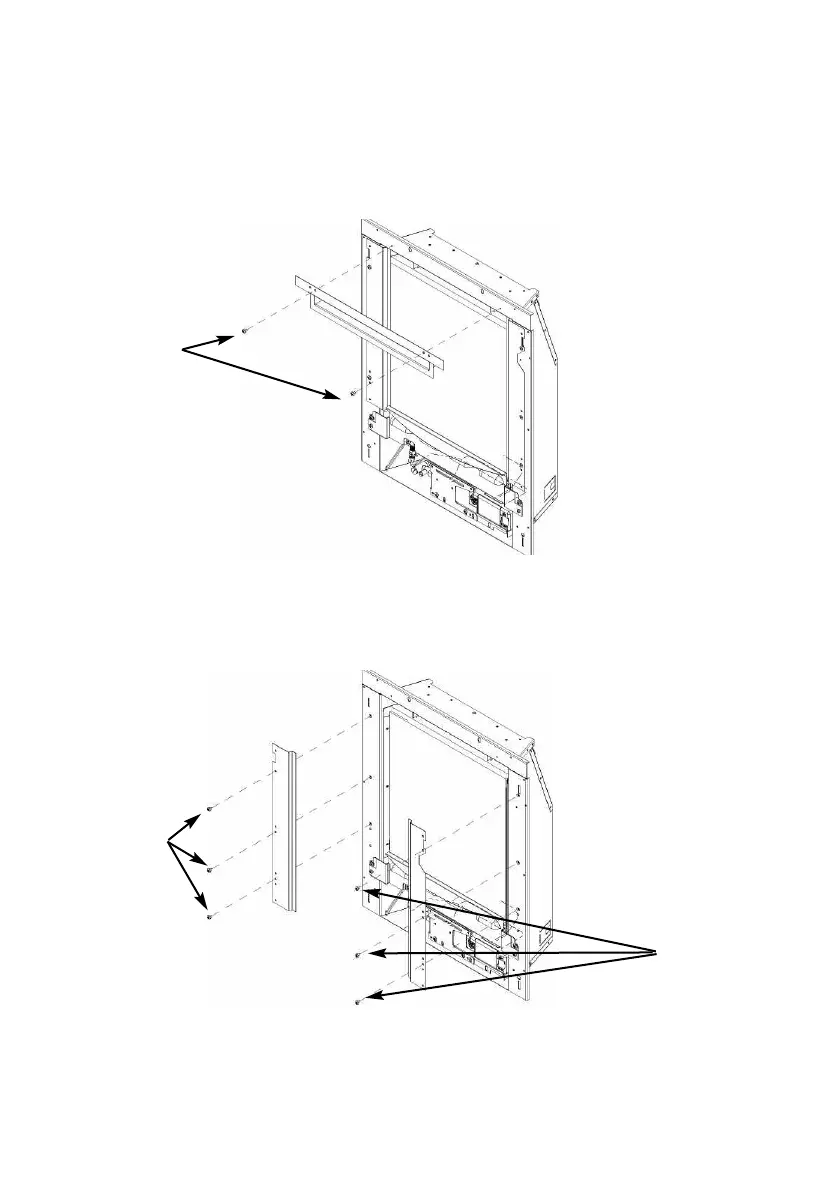

2.2.1 Remove the top glass retaining cover from the product. It is secured via
the two screws as indicated. See figure 6 below.
Fig. 6
2.2.2 Remove the left and right hand side glass securing brackets from the
product. They are secured via 3 off screws each side. See figure 7
below.
Fig. 7
11
2 off securing
screws
3 off securing
screws L/H/S
3 off securing
screw R/H/S
