Flavel Linear HE - Page 13

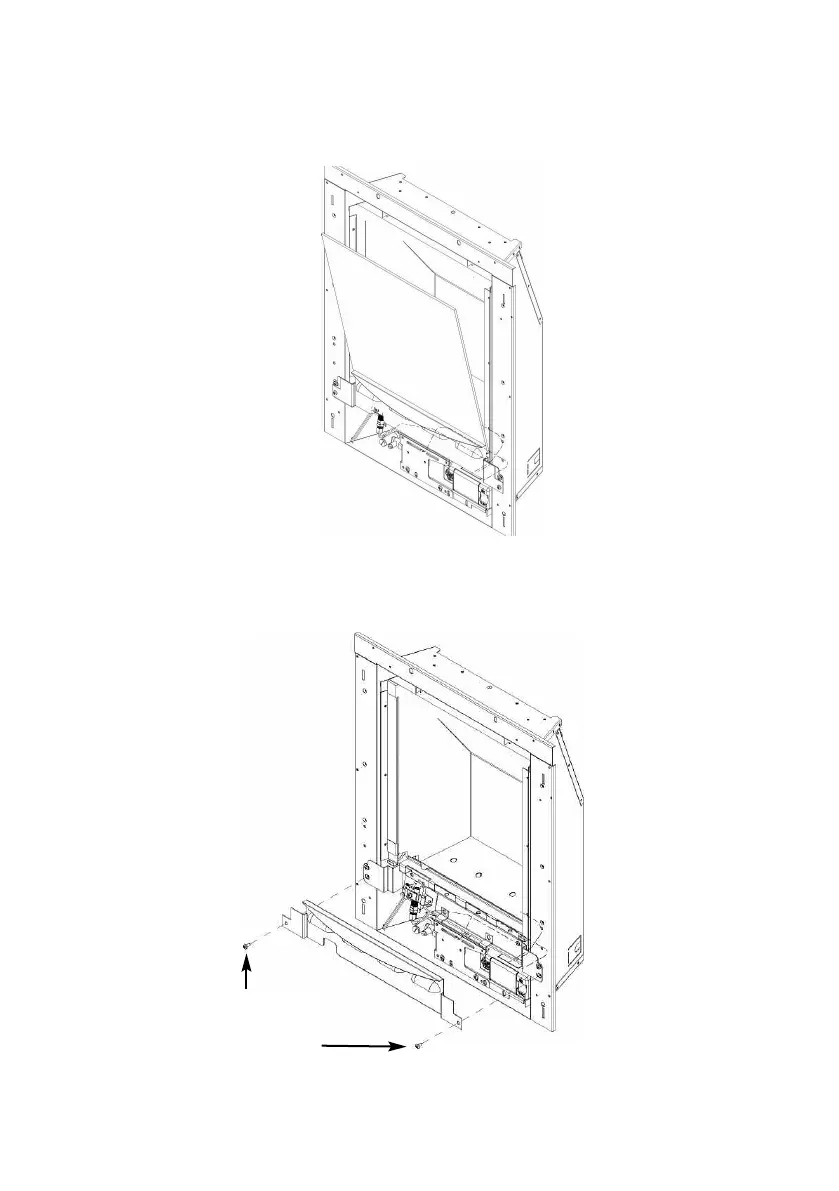

2.2.3 Lift the glass panel forwards and clear from the firebox, taking care not
to damage the glass panel. See figure 8 below.
Fig. 8
2.2.4 Remove the burner heat shield, which is retained by 2 off screws as
shown below in figure 9.
Fig. 9
12
Burner heat
shield retaining
screws
