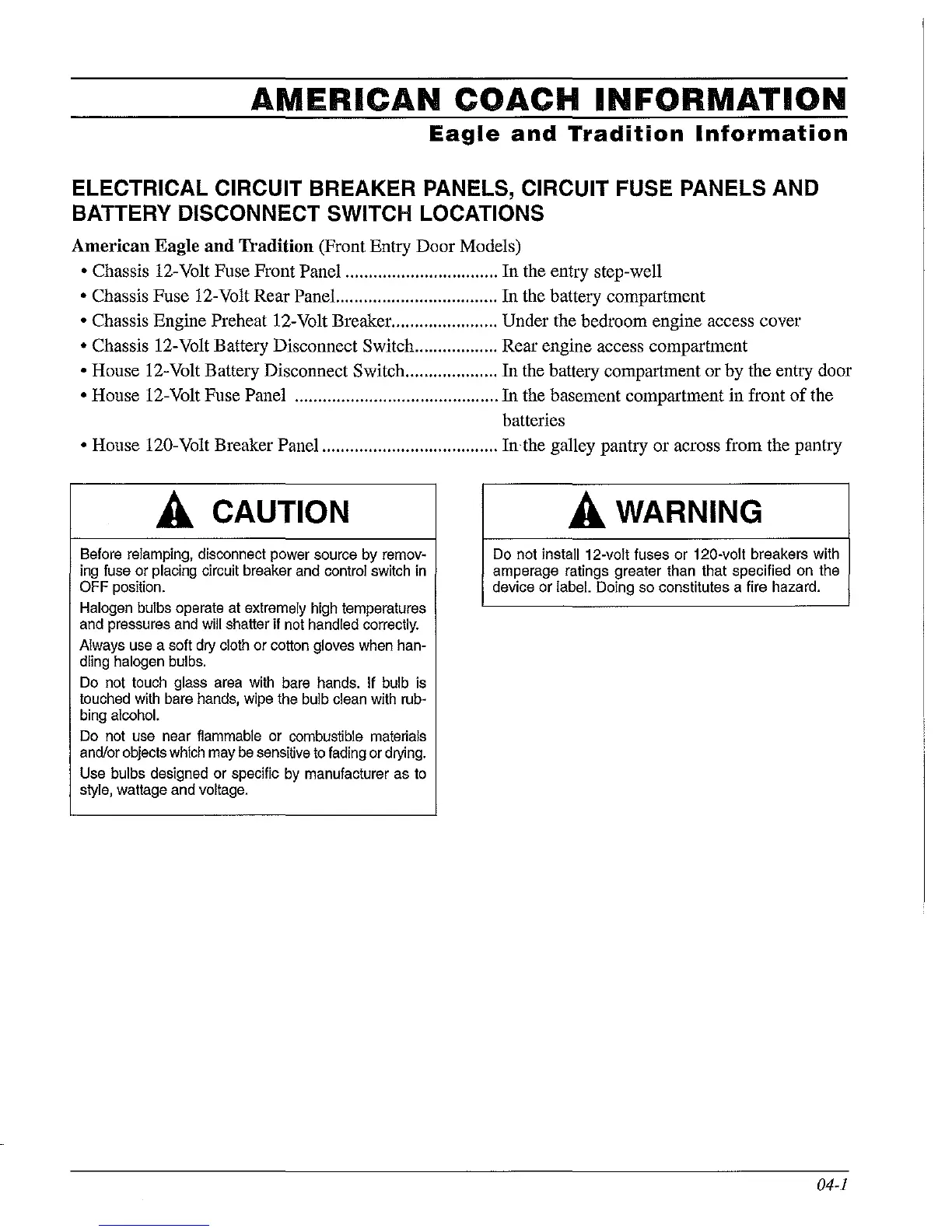

AMERICAN
COACH
INFORMATION
Eagle
and
Tradition
Information
ELECTRICAL CIRCUIT BREAKER PANELS, CIRCUIT FUSE PANELS AND
BATTERY
DISCONNECT SWITCH LOCATIONS
American Eagle and Tradition (Front Entry Door Models)
• Chassis 12-Volt Fuse Front Panel .................................
In
the entry step-well
• Chassis Fuse 12-Volt Rear
PaneL
................................
In
the battery compartment
• Chassis Engine Preheat 12-Volt Breaker. ...................... Under the bedroom engine access cover
• Chassis 12-Volt Battery Disconnect Switch .................. Rear engine access compartment
• House 12-Volt Battery Disconnect Switch ....................
In
the battery compmtment or by the entry door
• House 12-Volt Fuse Panel ............................................
In
the basement compartment
in
front
of
the
batteries
• House 120-Volt Breaker Panel ......................................
In
the galley pantry
or
across from the pantry
it..
CAUTION
Before relamping, disconnect power source by remov-
ing fuse or placing circuit breaker and control switch in
OFF position.
Halogen bulbs operate at extremely high temperatures
and pressures and will shatter if not handled correctly.
Always use a soft dry
cloth or cotton gloves when han-
dling
halogen bulbs.
Do not touch
glass area with bare hands. If bulb is
touched with bare hands, wipe the
bulb clean with rub-
bing alcohol.
Do not use near flammable or combustible materials
and/or objects which may
be sensitive to fading or drying.
Use bulbs designed or specific
by
manufacturer as to
style, watlage and voltage.
it..
WARNING
Do not install 12-volt fuses or 120-volt breakers with
amperage ratings greater than that specified on the
device or
label. Doing so constitutes a fire hazard.
04-1
