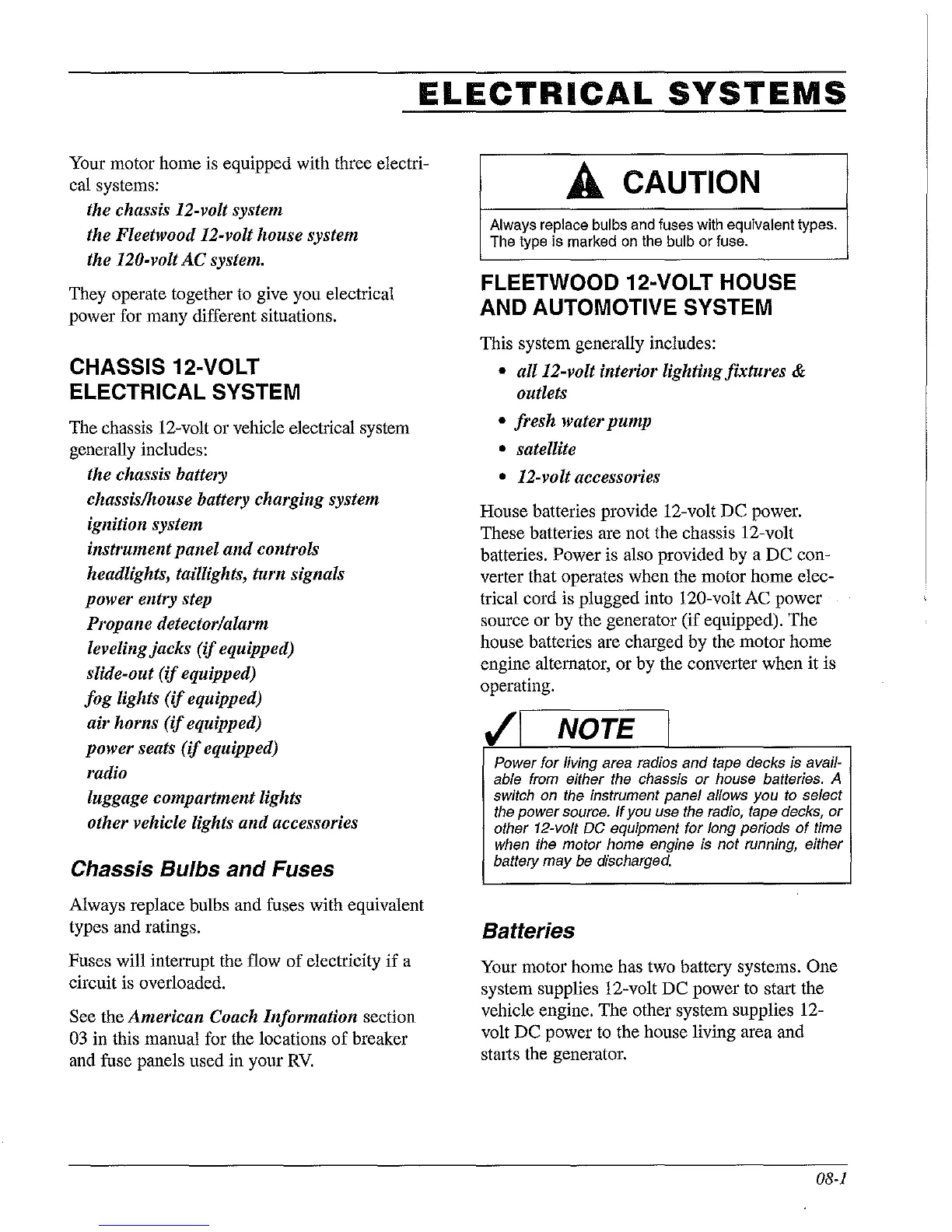

ELECTRICAL
SYSTEMS
Your motor home is equipped with three electri-
cal systems:
the chassis 12-volt system
the Fleetwood 12-volt house system
the 120-volt
AC
system.
They operate together to give you electrical
power for many different situations.
CHASSIS 12-VOLT
ELECTRICAL SYSTEM
The chassis 12-volt or vehicle electrical system
generally includes:
the chassis battery
chassis/house battery charging system
ignition system
illStrument panel
and
controls
headlights, taillights,
tum
signals
power entry step
Propane detector/alarm
leveling jacks
(if
equipped)
slide-out
(if
equipped)
fog lights
(if
equipped)
air
homs
(if
equipped)
power seats
(if
equipped)
radio
luggage compartment lights
other vehicle lights
and
accessories
Chassis Bulbs
and
Fuses
Always replace bulbs and fuses with equivalent
types and ratings.
Fuses will intelTupt the flow
of
electricity
if
a
circuit is overloaded.
See the American Coach Information section
03
in this manual for the locations
of
breaker
and fuse panels used in your
RV.
A CAUTION
Always replace bulbs and fuses with equivalent types.
The type is marked on the
bulb or fuse.
FLEETWOOD 12-VOLT HOUSE
AND AUTOMOTIVE SYSTEM
This system generally includes:
• all 12-volt interior lighting fixtures &
outlets
• fresh water pump
• satellite
• 12-volt accessories
House batteries provide 12-volt
DC
power.
These batteries are not the chassis 12-volt
batteries. Power is also provided by a
DC
con-
verter that operates when the motor home elec-
trical cord is plugged into 120-volt AC power
source
or
by
the generator (if equipped). The
house batteries are charged by the motor home
engine alternator, or by the converter when it is
operating.
'"
NOTE ,
Power for living area radios and tape decks is avail-
able from either the chassis
or
house batteries. A
switch on the instrument panel allows you
to
select
the
power source.
If
you use the radio, tape decks,
or
other 12-volt DC equipment for long periods
of
time
when
the motor home engine is not running, either
battery may be discharged.
Batteries
Your motor home has two battery systems. One
system supplies 12-volt
DC
power to start the
vehicle engine. The other system supplies 12-
volt
DC
power to the house living area and
stmts the generator.
08-1
