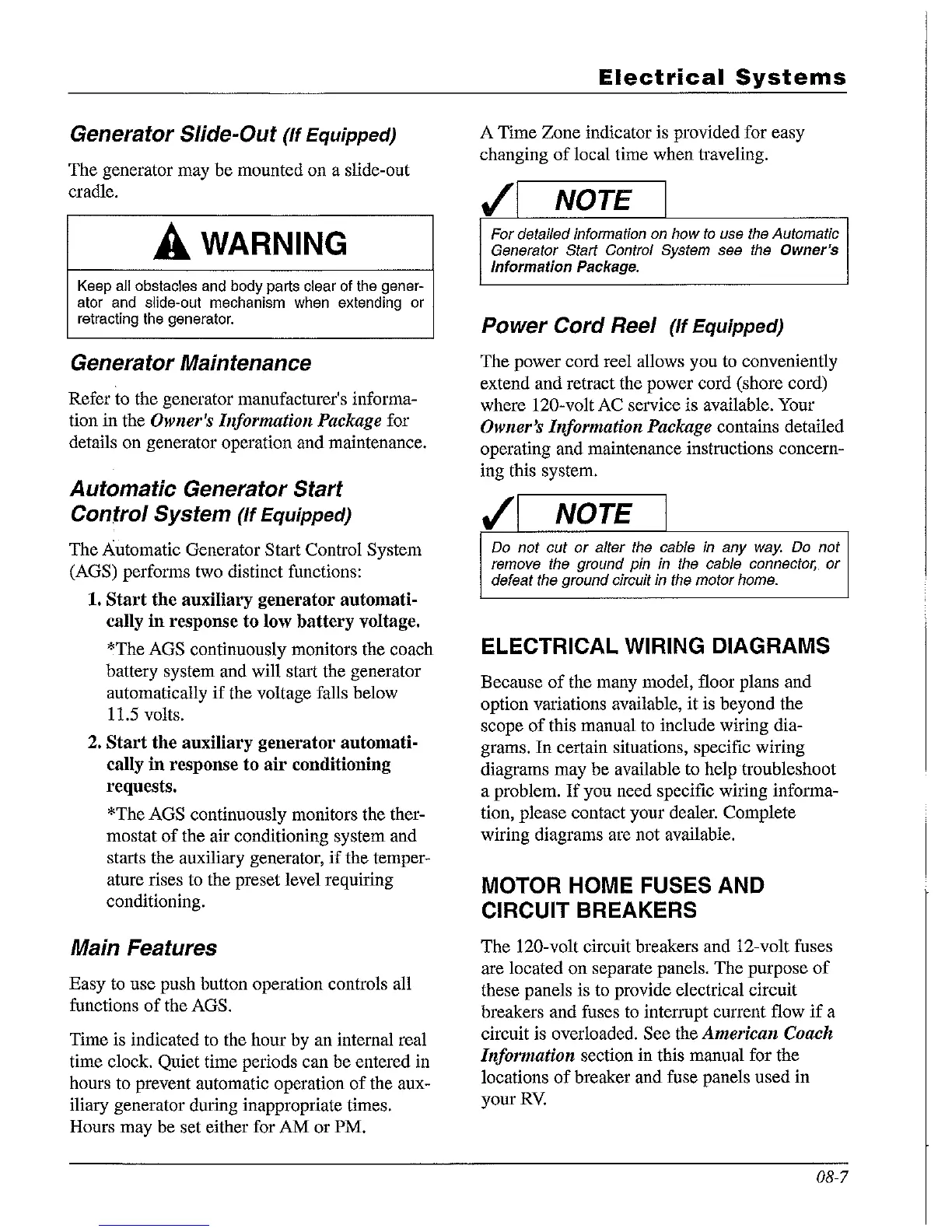

Generator Slide-Out (If Equipped)
The generator may be mounted on a slide-out
cradle.
A WARNING
Keep all obstacles and body parts clear of the gener-
ator and slide-out mechanism when extending or
retracting the generator.
Generator Maintenance
Refer to the generator manufacturer's informa-
tion in the
Owner's
Information
Package
for
details on generator operation and maintenance.
Automatic Generator Start
Control System (If Equipped)
The Automatic Generator Start Control System
(AGS)
perfonns two distinct functions:
1. Start the auxiliary generator automati-
cally in response to low battery voltage.
*The AGS continuously monitors the coach
battery system and will start the generator
automatically
if
the voltage falls below
11.5 volts.
2.
Start
the auxiliary generator automati-
cally in response to
air
conditioning
requests.
*The AGS continuously monitors the ther-
mostat
of
the air conditioning system and
starts the auxiliary generator,
if
the temper-
ature rises to the preset level requiring
conditioning.
Main Features
Easy to use push button operation controls all
functions
of
the AGS.
Time is indicated to the hour by an internal real
time clock. Quiet time periods can be entered in
hours to prevent automatic operation
of
the aux-
iliary generator during inappropriate times.
Hours may be set either for AM or PM.
Electrical
Systems
A Time Zone indicator is provided for easy
changing
of
local time when traveling.
.II NOTE I
For detai/ed information
on
how
to
use
the Automatic
Generator
Start Control System see
the
Owner's
Information Package.
Power Cord Reel (If Equipped)
The power cord reel allows you to conveniently
extend and retract the power cord (shore cord)
where l20-volt AC service is available. Your
Owner's Information
Package
contains detailed
operating and maintenance instructions
concern-
ing this system.
.II NOTE I
Do
not cut or alter
the
cable
in
any
way.
Do
not
remove
the
ground pin
in
the
cable connector, or
defeat the ground circuit
in
the
motor home.
ELECTRICAL WIRING DIAGRAMS
Because
of
the many model, floor plans and
option variations available,
it
is beyond the
scope
of
this manual to include wiring dia-
grams.
In
certain situations, specific wiring
diagrams may be available to help troubleshoot
a problem.
If
you need specific wiring informa-
tion, please contact your dealer. Complete
wiring diagrams are not available.
MOTOR HOME FUSES AND
CIRCUIT BREAKERS
The 120-volt circuit breakers and 12-volt fuses
are located on separate panels. The purpose
of
these panels is to provide electrical circuit
breakers and fuses to interrupt current flow
if
a
circuit is overloaded.
See the American
Coach
Information section in this manual for the
locations
of
breaker and fuse panels used in
yourRV.
08-7
