MAIN LANDING GEAR INSTALLATION
Required Tools and Fasteners:
#1 Phillips Screwdriver
1.5mm Hex Driver

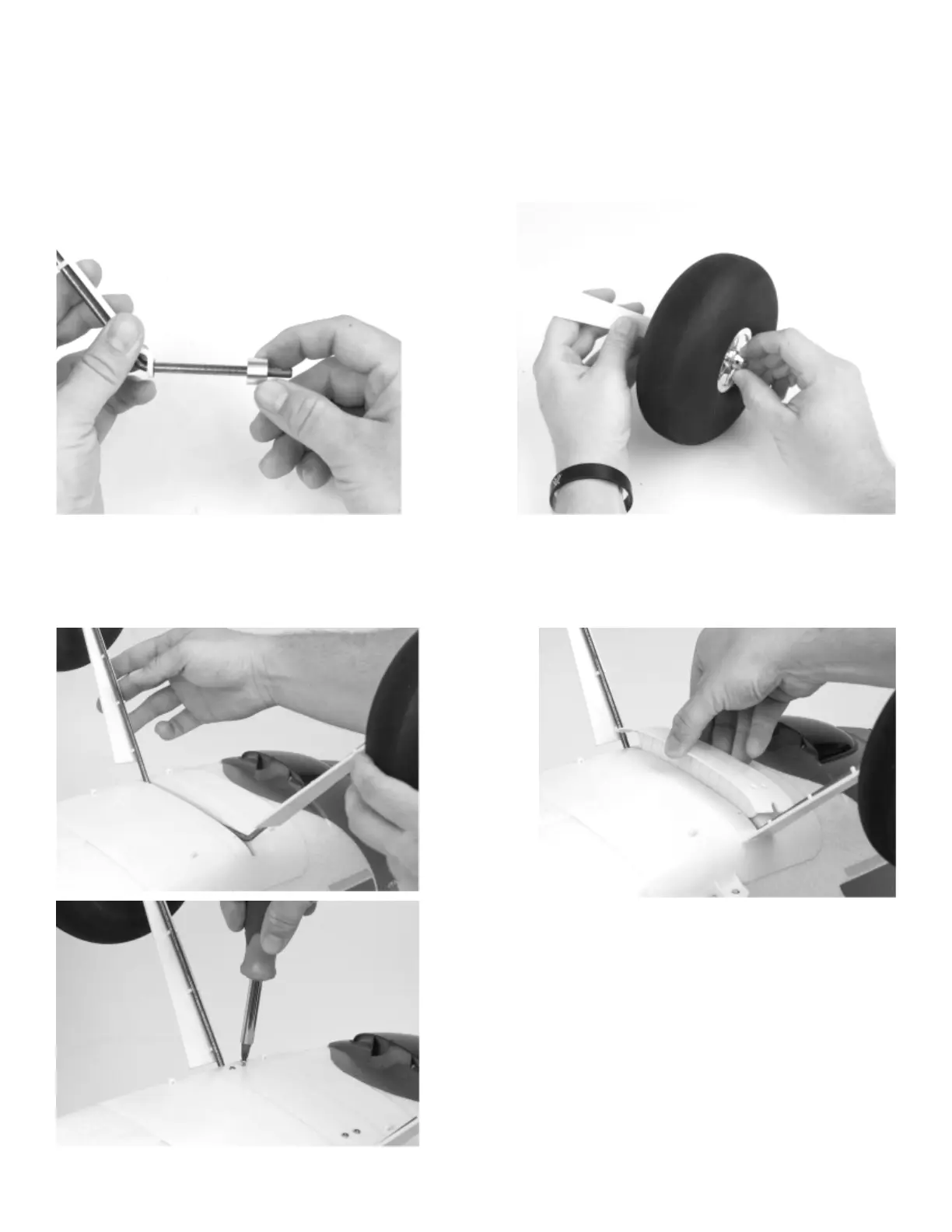

Slide an M5 spacer over the landing gear wire.
Slide a main wheel over the landing gear wire, followed by a lock collar. Add a drop of blue thread lock to the set screw, and secure it in place.
Repeat for the other wheel.
4 - M3x10 Hex Head Self-Tapping Screws
2 - M5 Lock Collars, with Set Screws
2 - M5 Spacer
Push the landing gear wire into the boom of the fuselage. Orientaon of the wire landing gear does not maer, however, the plasc wire
covers are direconal. You should have more material AFT of the landing gear wire. Insert the plasc landing gear keeper aer the landing gear,
nong orientaon. The plasc part will sit ush in one orientaon, but in the wrong direcon, may not sit ush.
Secure the plasc landing gear plate into the fuselage using 4 M3x10 self-tapping hex head screws. Do not overghten.
1.
2.
1.
2.
5
2mm Hex Driver
1.5mm Hex Driver
