HORIZONTAL STABILIZER INSTALLATION
Required Tools and Fasteners: Clear Tape (4 Strips)

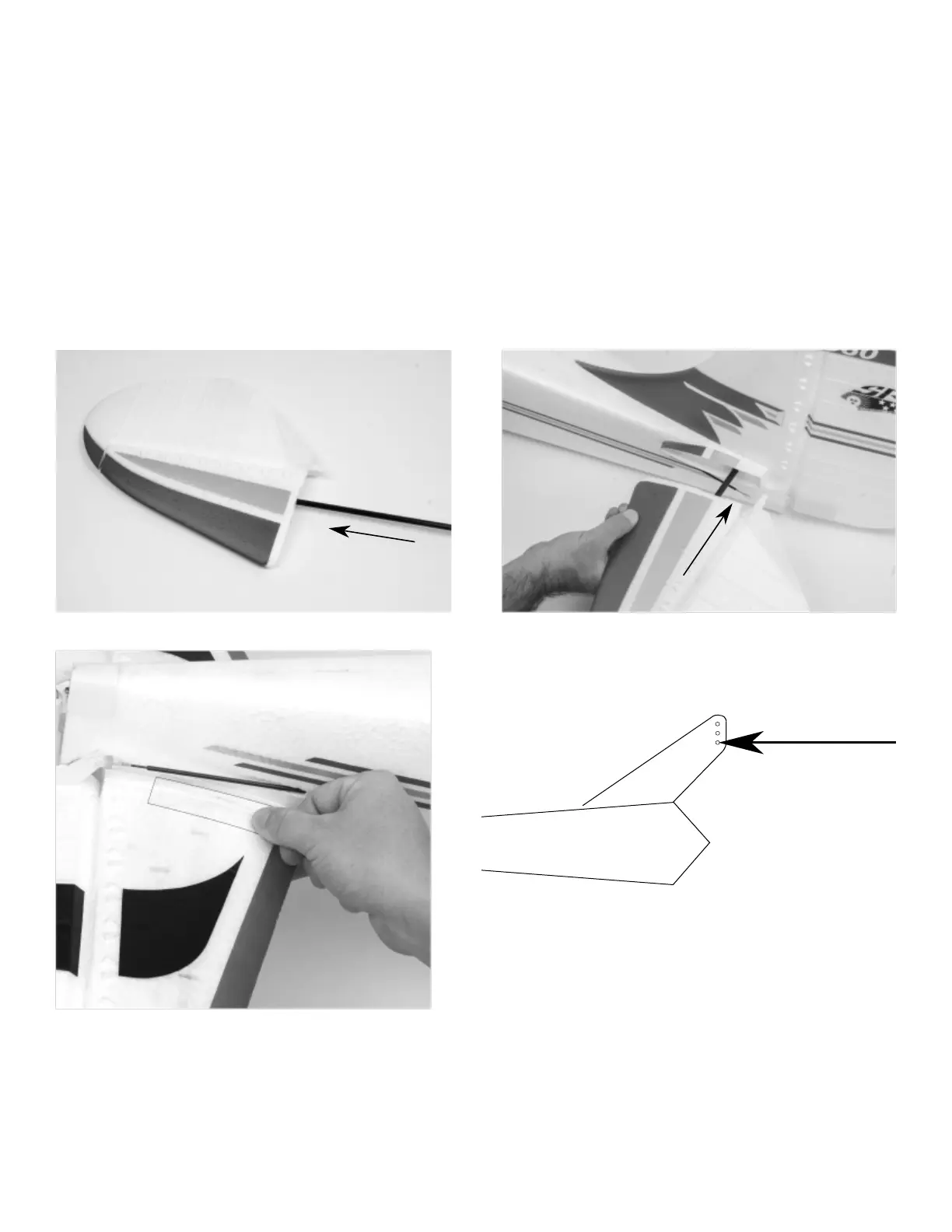

Insert the horizontal stabilizer tube into one of the horizontal stabilizer halves.
Slide the tube through the hole in the fuselage, being sure to orient the control horn towards the boom of the airplane. Do not
force it into place.
Slide the other stabilizer half onto the tube, being sure to index the elevator joiner tabs into one another. Do not force it into
place.
Apply 4 pieces of clear tape to the joint between the stabilizer and the plasc mounts. Be sure to apply tape to both the top and
boom sides of the stabilizer.
Aach the clevis to the elevator control horn in the innermost hole. Slide the clear tubing over the clevis to secure it in place.
