MAIN WING INSTALLATION
Required Tools and Fasteners: 2.5mm Hex Driver

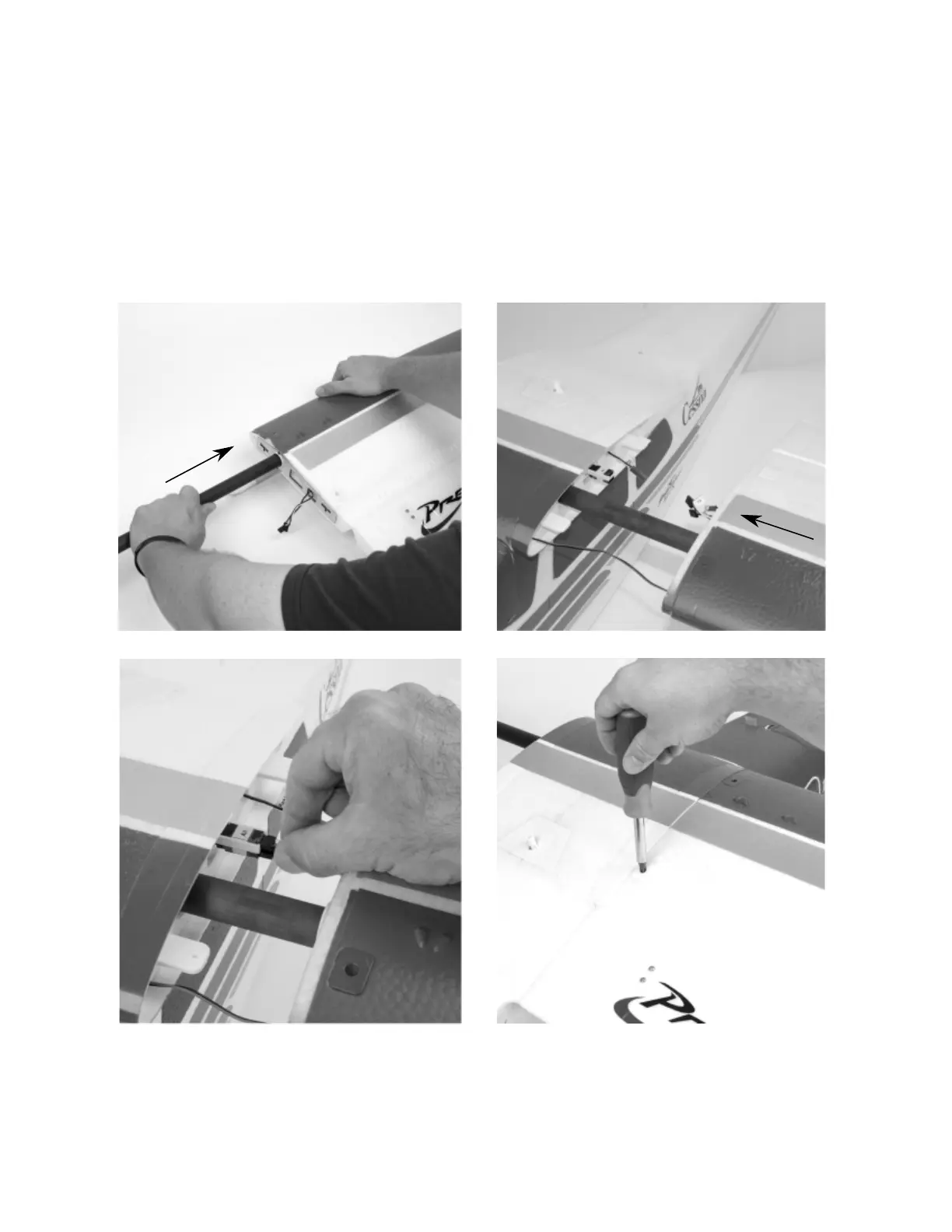

Insert the main wing tube into one of the main wing halves.
Slide the tube through the hole in the fuselage. Make any necessary servo or light connec�ons (reference Night LED Connec�ons page if you
have purchased the Night Cessna). Note that the aileron and flap extensions are marked accordingly. Slide the wing fully into the plas�c
mounts, while taking special care to prevent any wires from being pinched when installing the panel.
Slide the other wing half onto the tube, and make any connec�ons as completed in the previous step. Fully seat the wing into the plas�c
mounts in the fuselage. Do not force it into place.
Secure each wing panel to the fuselage using 2 M3x25 hex head machine screws. Don't over �ghten.
1.
2.
3.
4.
8
4 - M3x25 Hex Head Machine Screws
4 - 6mm Strut Retaining Pins
4 - Strut Retaining Pin Keepers
