L 8-11 115 / L 8-11 125 / LE 9-11 125
19

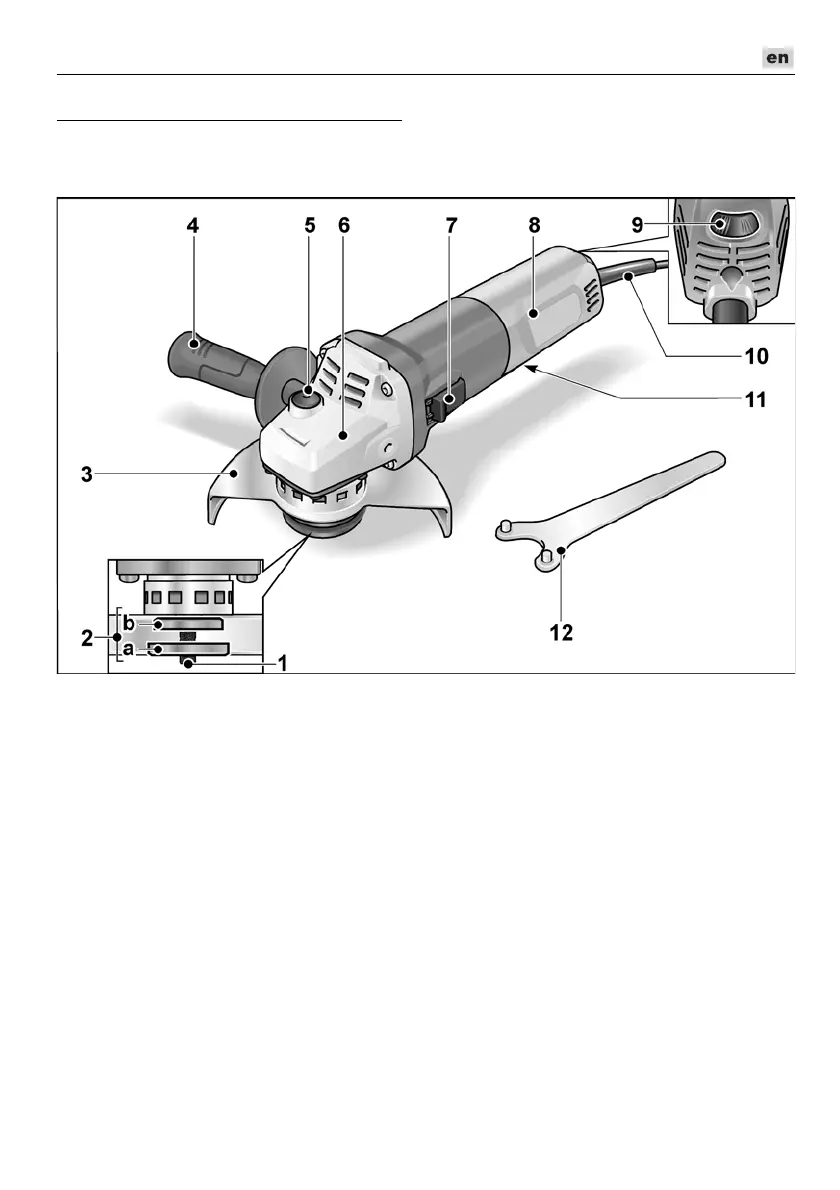

Overview
Different electric power tools are described in these instructions.
The illustrated electric power tool may differ in detail from the one which you purchased.
1 Spindle
2 Threaded flange
a Clamping nut
b Clamping flange
3 Guard hood
Can be adjusted without a tool through
360° by means of 12 notches.
a) 115 mm (L 8-11 115)
b) 125 mm (L 8-11 125, LE 9-11 125)
4 Handle
Handle can be fitted to the left or right.
5 Spindle lock
Secures the spindle when the tool
is changed.
6 Gear head
With air outlet and direction-of-rotation
arrow.
7 Switch rocker
Switches the power tool on and off.
With notched position for continuous
operation.
8 Rear handle
9 Dial for preselecting the speed
(only LE 9-11 125)
10 4.0 m power cord with plug
11 Rating plate (not illustrated)
12 Face spanner
