FLUXUS ADM 8027, F801, ADM 8127B 3 General Principles
16 UMFLUXUS_F8V4-6-1EN, 2018-10-10
Sound beam plane
The plane containing one, two or more sound paths or beams (see Fig. 3.10).
3.3.2 Examples

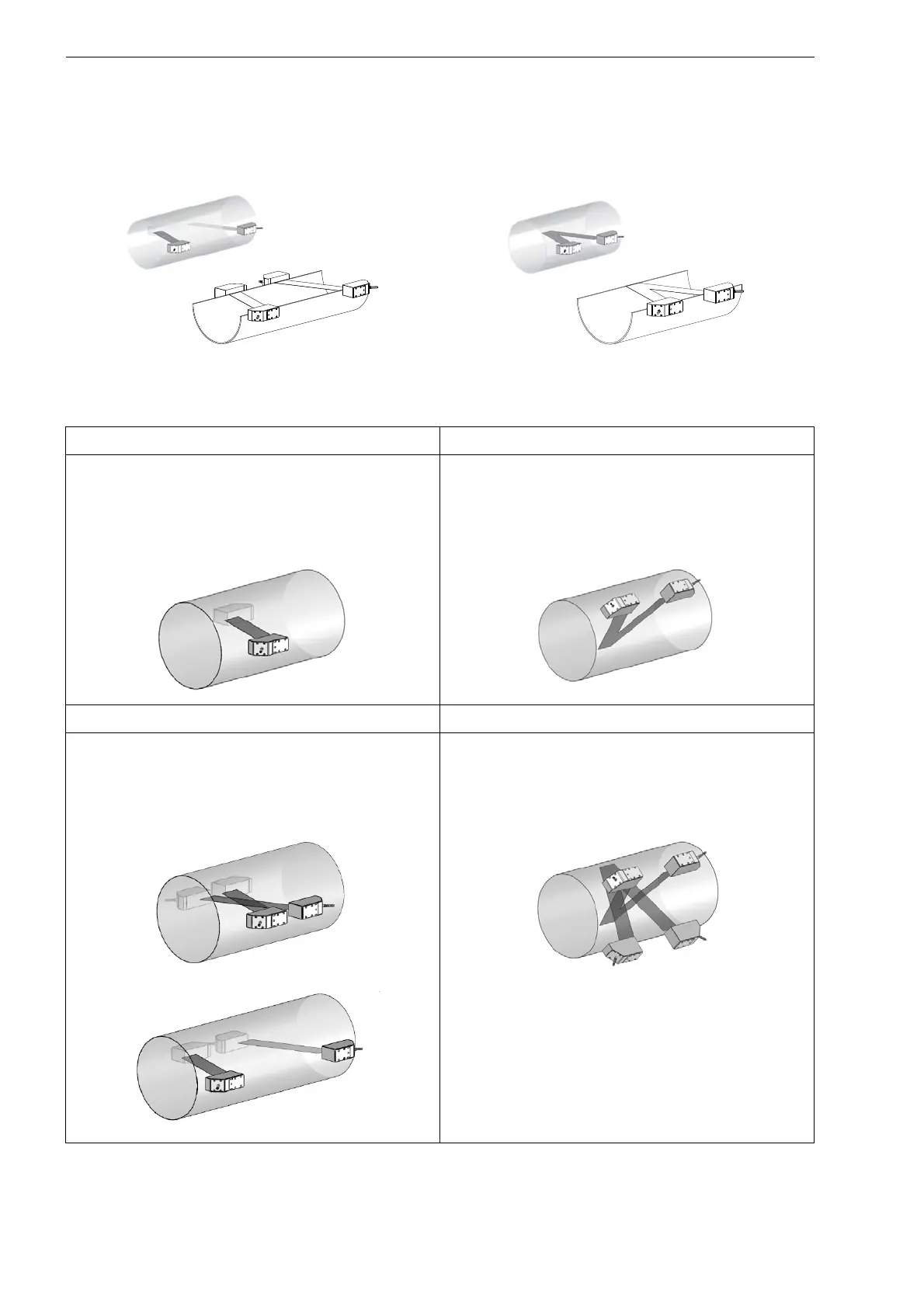

Fig. 3.10: Sound paths and beams in one plane
diagonal arrangement with 1 beam reflection arrangement with 1 beam
1 transducer pair
1 sound path
1 beam
1 plane
1 transducer pair
2 sound paths
1 beam
1 plane
diagonal arrangement with 2 beam reflection arrangement with 2 beams and 2 planes
2 transducer pairs
1 sound path
2 beams
1 plane
2 transducer pairs
2 sound paths
2 beams
2 planes
2 beams
in 1 plane
2 sound paths
in 1 plane
X arrangement
displaced
X arrangement
